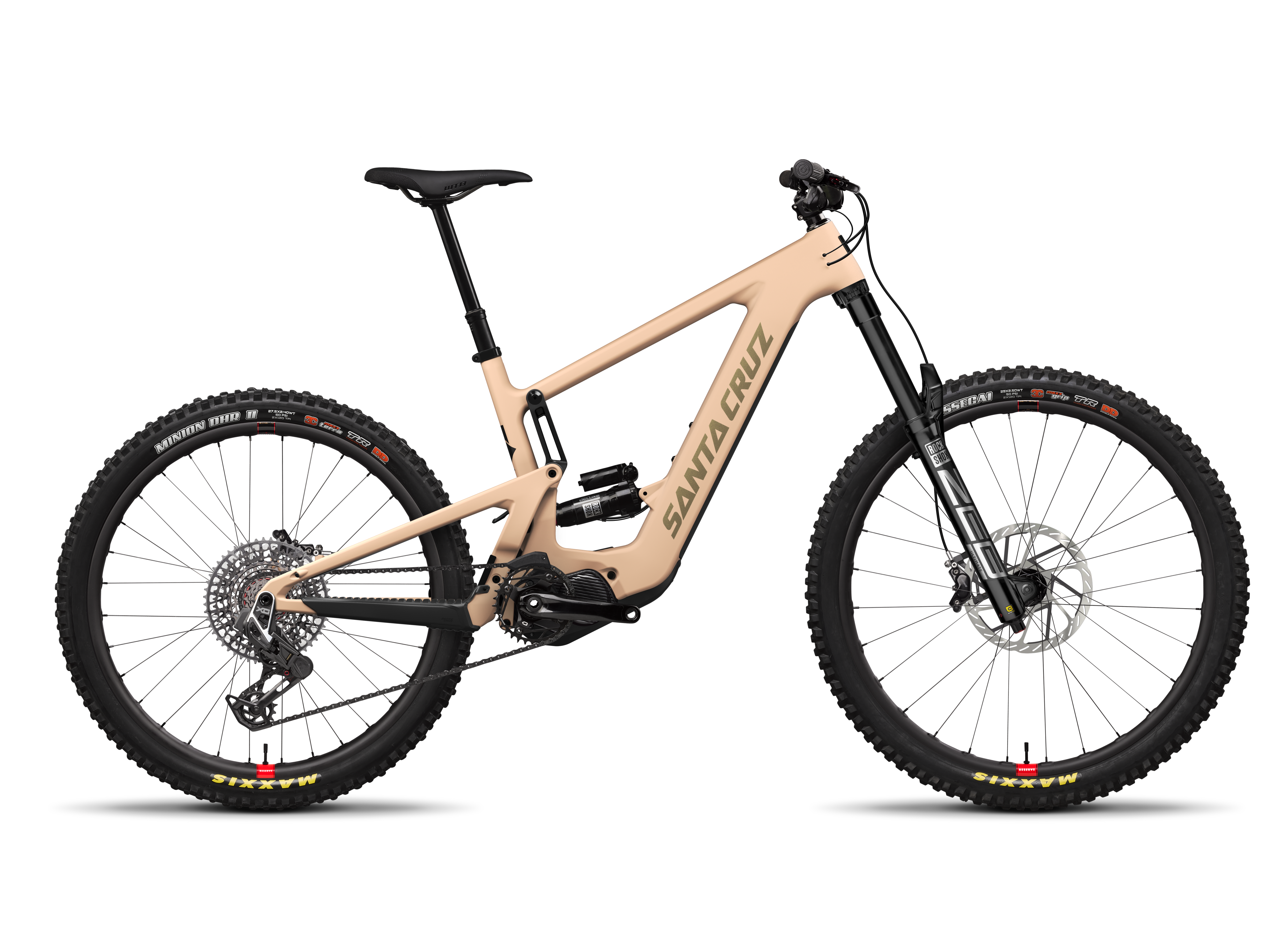

Bullit 3 MY24

Rahmen-Spezifikationen

Federungssystem	VPP
Front Derailleur Mount	No compatibility
Steuersatz	Integrated (IS41/52)
Seat Post Diameter	31.6mm
Sattelklemmung	36.4mm
Dämpferlänge	230mm
Dämpferhub	62.5mm
Gabel-Kompatibilität	170-180mm
Innenlager-Schale	73mm Threaded
Maximale Reifenfreiheit	2.6"
Maximale Kettenblattgröße	36t
Flaschenhalteraufnahmen	1
Dämpfer-Einbaumaß vorne	30x8
Dämpfer-Einbaumaß hinten	30x8
Hintere Bremsaufnahme	200PM

Ausstattungsvarianten

Wähle eine Ausstattungsvariante

R

• R
• S
• GX AXS
• GX AXS COIL
• X 0 AXS RSV
• X 0 AXS RSV COIL

Gewicht	50.24 lbs / 22.79 kg
Material	Carbon CC
Federweg	170mm
Laufradgröße	MX
Dämpfer	RockShox Super Deluxe Select, 230x62.5
Gabel	RockShox Zeb Base, 170mm
Schaltwerk	SRAM NX Eagle, 12spd
Right Shifter	SRAM NX
Kassette	SRAM PG1230, 12spd, 11-50t
Kette	SRAM NX Eagle, 12spd
Kettenführung	E13 E-Spec+ AL
Steuersatz	FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated
Hinterreifen	Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down
Vorderreifen	Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Nabe vorne	SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h
Felge vorne	WTB ST i30 TCS 2.0 29"
Nabe hinten	SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Felge hinten	WTB ST i30 TCS 2.0 27.5"
Bremsscheibe vorne	Avid Centerline 220mm
Bremsscheibe hinten	Avid Centerline, 200mm
Bremsen	SRAM DB8
Kurbelgarnitur	Shimano EM600 Crank Arms 165mm
Lenker	e13 TRS Base
Vorbau	e.13 Base
Sattel	WTB Silverado, CroMo
Sattelstütze	SDG Tellis Dropper, 31.6
Grips / Bar Tape	Santa Cruz Bicycles House Grips
Akku	Shimano 630Wh Integrated
Motor	Shimano Drive Unit DU-EP801
Ladegerät	Shimano Battery Charger

Gewicht	49.93 lbs / 22.65 kg
Material	Carbon CC
Federweg	170mm
Laufradgröße	MX
Dämpfer	RockShox Super Deluxe Select+, 230x62.5
Gabel	FOX 38 Float Performance, 170mm
Schaltwerk	SRAM GX Eagle, 12spd
Right Shifter	SRAM GX Eagle Single Click, 12spd
Kassette	SRAM XG1275 Eagle, 12spd, 10-50t
Kette	SRAM GX Eagle, 12spd
Kettenführung	E13 E-Spec+ AL
Steuersatz	Cane Creek 40 IS Integrated Headset
Hinterreifen	Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down
Vorderreifen	Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Nabe vorne	E13 SL, 15x110, 6-Bolt, 32h
Felge vorne	RaceFace ARC HD 30 29"
Nabe hinten	E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Felge hinten	RaceFace ARC HD 30 27.5"
Bremsscheibe vorne	Avid Centerline 220mm
Bremsscheibe hinten	Avid Centerline, 200mm
Bremsen	SRAM Code R
Kurbelgarnitur	Shimano EM600 Crank Arms 165mm
Lenker	Santa Cruz eCarbon
Vorbau	Burgtec Enduro MK3, 42mm
Sattel	WTB Silverado, CroMo
Sattelstütze	OneUp V2 Dropper Post, 31.6 or RockShox Reverb, 31.6
Grips / Bar Tape	Santa Cruz Bicycles House Grips
Akku	Shimano 630Wh Integrated
Motor	Shimano Drive Unit DU-EP801
Ladegerät	Shimano Battery Charger

Gewicht	49.29 lbs / 22.36 kg
Material	Carbon CC
Federweg	170mm
Laufradgröße	MX
Dämpfer	RockShox Super Deluxe Select+, 230x62.5
Gabel	RockShox Zeb Select+, 170mm -or- Fox 38 Performance Elite
Schaltwerk	SRAM GX Eagle AXS T-Type, 12spd
Right Shifter	SRAM AXS Pod Bridge
Kassette	SRAM GX Eagle T-Type, 10-52t
Kette	SRAM GX Eagle T-Type, Flattop, 12spd
Kettenführung	E13 E-Spec+ AL
Steuersatz	Cane Creek 40 IS Integrated Headset
Hinterreifen	Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down
Vorderreifen	Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Nabe vorne	E13 SL, 15x110, Torque Cap, 6-Bolt, 32h
Felge vorne	RaceFace ARC HD 30 29"
Nabe hinten	E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Felge hinten	RaceFace ARC HD 30 27.5"
Bremsscheibe vorne	SRAM HS2 220mm
Bremsscheibe hinten	SRAM HS2 200mm
Bremsen	SRAM Code Bronze Stealth
Kurbelgarnitur	Shimano EM900 HollowTech Crank Arms 165mm
Lenker	Santa Cruz eCarbon
Vorbau	Burgtec Enduro MK3, 42mm
Sattel	WTB Silverado Medium, CroMo
Sattelstütze	OneUp V2 Dropper Post, 31.6 -or- Reverb Stealth -or- Fox Transfer
Grips / Bar Tape	Santa Cruz Bicycles House Grips
Akku	Shimano 630Wh Integrated
Motor	Shimano Drive Unit DU-EP801
Ladegerät	Shimano Battery Charger

Gewicht	50.47 lbs / 22.89 kg
Material	Carbon CC
Federweg	170mm
Laufradgröße	MX
Dämpfer	RockShox Super Deluxe Select+ Coil, 230x62.5
Gabel	RockShox Zeb Select+, 170mm -or- Fox 38 Performance Elite
Schaltwerk	SRAM GX Eagle AXS T-Type, 12spd
Right Shifter	SRAM AXS Pod Bridge
Kassette	SRAM GX Eagle T-Type, 10-52t
Kette	SRAM GX Eagle T-Type, Flattop, 12spd
Kettenführung	E13 E-Spec+ AL
Steuersatz	Cane Creek 40 IS Integrated Headset
Hinterreifen	Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down
Vorderreifen	Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Nabe vorne	E13 SL, 15x110, Torque Cap, 6-Bolt, 32h
Felge vorne	RaceFace ARC HD 30 29"
Nabe hinten	E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Felge hinten	RaceFace ARC HD 30 27.5"
Bremsscheibe vorne	SRAM HS2 220mm
Bremsscheibe hinten	SRAM HS2 200mm
Bremsen	SRAM Code Bronze Stealth
Kurbelgarnitur	Shimano EM900 HollowTech Crank Arms 165mm
Lenker	Santa Cruz eCarbon
Vorbau	Burgtec Enduro MK3, 42mm
Sattel	WTB Silverado Medium, CroMo
Sattelstütze	OneUp V2 Dropper Post, 31.6 -or- Reverb Stealth -or- Fox Transfer
Grips / Bar Tape	Santa Cruz Bicycles House Grips
Akku	Shimano 630Wh Integrated
Motor	Shimano Drive Unit DU-EP801
Ladegerät	Shimano Battery Charger

Gewicht	49.1 lbs / 22.27 kg
Material	Carbon CC
Federweg	170mm
Laufradgröße	MX
Dämpfer	RockShox Super Deluxe Ultimate, 230x62.5
Gabel	RockShox Zeb Ultimate, 170mm -or- Fox 38 Float Factory
Schaltwerk	SRAM X0 Eagle AXS T-Type, 12spd
Right Shifter	SRAM AXS Pod Bridge
Kassette	SRAM X0 Eagle T-Type, 10-52t
Kette	SRAM X0 Eagle T-Type, Flattop, 12spd
Kettenführung	E13 E-Spec+ AL
Steuersatz	Cane Creek 40 IS Integrated Headset
Hinterreifen	Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down
Vorderreifen	Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Nabe vorne	DT Swiss 350, 15x110, Torque Cap, 6-Bolt, 28h
Felge vorne	Reserve 30|HD 29"
Nabe hinten	DT Swiss 350, 12x148, XD, 6-Bolt, 24t, 32h
Felge hinten	Reserve 31|DH 27.5"
Bremsscheibe vorne	SRAM HS2 220mm
Bremsscheibe hinten	SRAM HS2 200mm
Bremsen	SRAM Code Silver Stealth
Kurbelgarnitur	Shimano EM900 HollowTech Crank Arms 165mm
Lenker	Santa Cruz e35 Carbon Bar, 800mm
Vorbau	Burgtec Enduro MK3, 42mm
Sattel	WTB Silverado Medium, Ti
Sattelstütze	OneUp V2 Dropper Post, 31.6 -or- RockShox Reverb Stealth -or- Fox Transfer
Grips / Bar Tape	Santa Cruz Bicycles House Grips
Akku	Shimano 630Wh Integrated
Motor	Shimano Drive Unit DU-EP801
Ladegerät	Shimano Battery Charger, Powerpack 1 Battery

Gewicht	49.87 lbs / 22.62 kg
Material	Carbon CC
Federweg	170mm
Laufradgröße	MX
Dämpfer	RockShox Super Deluxe Ultimate Coil, 230x62.5
Gabel	RockShox Zeb Ultimate, 170mm -or- Fox 38 Float Factory
Schaltwerk	SRAM X0 Eagle AXS T-Type, 12spd
Right Shifter	SRAM AXS Pod Bridge
Kassette	SRAM X0 Eagle T-Type, 10-52t
Kette	SRAM X0 Eagle T-Type, Flattop, 12spd
Kettenführung	E13 E-Spec+ AL
Steuersatz	Cane Creek 40 IS Integrated Headset
Hinterreifen	Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down
Vorderreifen	Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Nabe vorne	DT Swiss 350, 15x110, Torque Cap, 6-Bolt, 28h
Felge vorne	Reserve 30|HD 29"
Nabe hinten	DT Swiss 350, 12x148, XD, 6-Bolt, 24t, 32h
Felge hinten	Reserve 31|DH 27.5"
Bremsscheibe vorne	SRAM HS2 220mm
Bremsscheibe hinten	SRAM HS2 200mm
Bremsen	SRAM Code Silver Stealth
Kurbelgarnitur	Shimano EM900 HollowTech Crank Arms 165mm
Lenker	Santa Cruz e35 Carbon Bar, 800mm
Vorbau	Burgtec Enduro MK3, 42mm
Sattel	WTB Silverado Medium, Ti
Sattelstütze	OneUp V2 Dropper Post, 31.6 -or- RockShox Reverb Stealth -or- Fox Transfer
Grips / Bar Tape	Santa Cruz Bicycles House Grips
Akku	Shimano 630Wh Integrated
Motor	Shimano Drive Unit DU-EP801
Ladegerät	Shimano Battery Charger, Powerpack 1 Battery

Geometrie

Alle Einheiten in Millimeter oder Grad

	m	l	xl	xxl
Reach	450	475	495	515
Stack	621	630	648	670.4
Head tube angle	64°	64°	64°	64°
Sitzrohrlänge	405	430	460	500
Front Center	789.4	818.8	847.5	878.5
Tretlagerhöhe	348	348	348	348
Tretlagerabsenkung	25.5/6.5	25.5/6.5	25.5/6.5	25.5/6.5
Radstand	1238.5	1267.9	1296.7	1327.7
Hinterbaulänge	449	449	449	449
Steuerrohrlänge	100	110	130	155
Oberrohrlänge	591.3	619.2	644.9	672.1
Sitzwinkel	77.2°	77.1°	77°	76.8°
Überstandshöhe	748	747	745	745

Größen-Empfehlung

IN / CM M

165cm 5'5" - 175cm 5'9" Reach: 450mm

L

175cm 5'9" - 185cm 6'1" Reach: 475mm

XL

185cm 6'1" - 193cm 6'4" Reach: 495mm

XXL

193cm 6'4" - 200cm 6'7" Reach: 515mm

Fahrwerks-Setup

Rockshox Zeb Base 170

Fahrergewicht (lbs)	Fahrergewicht (kg)	Luftdruck (psi)	Rebound (Klicks von geschlossen)
100	45	39	13
120	54	47	12
140	64	55	11
160	73	64	11
180	82	72	10
200	91	80	9
220	100	88	8

Rockshox Super Deluxe Select

Fahrergewicht (lbs)	Fahrergewicht (kg)	Luftdruck (psi)	Sag	Rebound (Klicks von geschlossen)
100	45	100	29-32%, 18-20mm	7
120	54	125	29-32%, 18-20mm	7
140	64	145	29-32%, 18-20mm	7
160	73	170	29-32%, 18-20mm	6
180	82	190	29-32%, 18-20mm	6
200	91	215	29-32%, 18-20mm	6
220	100	235	29-32%, 18-20mm	5
240	109	260	29-32%, 18-20mm	5
260	118	280	29-32%, 18-20mm	5

Fox 38 Performance 170

Fahrergewicht (lbs)	Fahrergewicht (kg)	Luftdruck (psi)	Rebound (Klicks von geschlossen)
120	54	76	12
130	59	80	11
140	64	84	10
150	68	88	9
160	73	92	8
170	77	96	7
180	82	99	6
190	86	104	5
200	91	109	4
210	95	114	3
220	100	119	2
230	104	123	1

Rockshox Super Deluxe Select Plus

Fahrergewicht (lbs)	Fahrergewicht (kg)	Luftdruck (psi)	Sag	Rebound (Klicks von geschlossen)
100	45	100	29-32%, 18-20mm	7
120	54	125	29-32%, 18-20mm	7
140	64	145	29-32%, 18-20mm	7
160	73	170	29-32%, 18-20mm	6
180	82	190	29-32%, 18-20mm	6
200	91	215	29-32%, 18-20mm	6
220	100	235	29-32%, 18-20mm	5
240	109	260	29-32%, 18-20mm	5
260	118	280	29-32%, 18-20mm	5

MY24 Rockshox Zeb Select Plus 170

Fahrergewicht (lbs)	Fahrergewicht (kg)	Luftdruck (psi)	Rebound (Klicks von geschlossen)
100	45	47	12
120	54	55	11
140	64	64	10
160	73	72	9
180	82	80	8
200	91	88	6
220	100	96	4
240	109	104	3

Rockshox Super Deluxe Select Plus

Fahrergewicht (lbs)	Fahrergewicht (kg)	Luftdruck (psi)	Sag	Rebound (Klicks von geschlossen)
100	45	100	29-32%, 18-20mm	7
120	54	125	29-32%, 18-20mm	7
140	63	145	29-32%, 18-20mm	7
160	72	170	29-32%, 18-20mm	6
180	81	190	29-32%, 18-20mm	6
200	90	215	29-32%, 18-20mm	6
220	99	235	29-32%, 18-20mm	5
240	108	260	29-32%, 18-20mm	5
260	117	280	29-32%, 18-20mm	5

MY24 Rockshox Zeb Select Plus 170

Fahrergewicht (lbs)	Fahrergewicht (kg)	Luftdruck (psi)	Rebound (Klicks von geschlossen)
100	45	47	12
120	54	55	11
140	64	64	10
160	73	72	9
180	82	80	8
200	91	88	6
220	100	96	4
240	109	104	3

Rockshox Super Deluxe Select Plus Coil

Fahrergewicht (lbs)	Fahrergewicht (kg)	Federhärte	Sag	Vorspannung	Rebound (Klicks von geschlossen)
100	45	300	28-32%, 17.5-20mm	1-2 turns	11
120	54	350	28-32%, 17.5-20mm	1-2 turns	10
140	64	400	28-32%, 17.5-20mm	1-2 turns	9
160	73	450	28-32%, 17.5-20mm	1-2 turns	8
180	82	500	28-32%, 17.5-20mm	1-2 turns	7
200	91	550	28-32%, 17.5-20mm	1-2 turns	6
220	100	600	28-32%, 17.5-20mm	1-2 turns	5
240	109	650	28-32%, 17.5-20mm	1-2 turns	5
260	118	700	28-32%, 17.5-20mm	1-2 turns	4

Rockshox Zeb Ultimate 170

Fahrergewicht (lbs)	Fahrergewicht (kg)	Luftdruck (psi)	Rebound (Klicks von geschlossen)	Compression (L/H - von der mittleren Position)
100	45	39	13	middle
120	54	47	12	middle
140	64	55	11	middle
160	73	64	10	middle
180	82	72	9	middle
200	91	80	8	middle
220	100	88	6	middle
240	109	96	4	middle

Rockshox Super Deluxe Ultimate

Fahrergewicht (lbs)	Fahrergewicht (kg)	Luftdruck (psi)	Sag	Rebound (Klicks von geschlossen)	Compression (L/H - von der mittleren Position)
100	45	100	29-32%, 18-20mm	7	-1/-1
120	54	125	29-32%, 18-20mm	6	-1/-1
140	63	145	29-32%, 18-20mm	6	-1/-1
160	72	170	29-32%, 18-20mm	5	-1/-1
180	81	190	29-32%, 18-20mm	5	-1/-1
200	90	215	29-32%, 18-20mm	4	-1/-1
220	99	235	29-32%, 18-20mm	4	-1/-1
240	108	260	29-32%, 18-20mm	3	-1/-1
260	117	280	29-32%, 18-20mm	3	-1/-1

Rockshox Zeb Ultimate 170

Fahrergewicht (lbs)	Fahrergewicht (kg)	Luftdruck (psi)	Rebound (Klicks von geschlossen)	Compression (von der mittleren Position)
100	45	39	13	middle
120	54	47	12	middle
140	64	55	11	middle
160	73	64	10	middle
180	82	72	9	middle
200	91	80	8	middle
220	100	88	6	middle
240	109	96	4	middle

Rockshox Super Deluxe Ultimate Coil

Fahrergewicht (lbs)	Fahrergewicht (kg)	Federhärte	Sag	Vorspannung	Rebound (Klicks von geschlossen)	Compression (L/H - von der mittleren Position)
100	45	300	28-32%, 17.5-20mm	1-2 turns	11	-1/-1
120	54	350	28-32%, 17.5-20mm	1-2 turns	10	-1/-1
140	63	400	28-32%, 17.5-20mm	1-2 turns	9	-1/-1
160	72	450	28-32%, 17.5-20mm	1-2 turns	8	-1/-1
180	81	500	28-32%, 17.5-20mm	1-2 turns	7	-1/-1
200	90	550	28-32%, 17.5-20mm	1-2 turns	6	-1/-1
220	99	600	28-32%, 17.5-20mm	1-2 turns	5	-1/-1
240	108	650	28-32%, 17.5-20mm	1-2 turns	5	-1/-1
260	117	700	28-32%, 17.5-20mm	1-2 turns	4	-1/-1

Schaltungs-Einstellung

Frame Size	Flip Chip	Setup Key	Setup Cog	32T	34T	36T
S	High	A	7	116	116	118
M	High	B	7	116	118	118
L	High	A	7	116	118	118
XL	High	A	7	118	118	120
XXL	High	A	7	118	118	120
S	Low	A	7	116	118	118
M	Low	A	7	116	118	118
L	Low	A	7	118	118	120
XL	Low	A	7	118	118	120
XXL	Low	A	7	118	118	120

Explosionszeichnungen

Battery Cover, Seat Collar, Downtube Protector, and Headbadge

label	part_number	quantity	name	blurb	torque
A	67-19217	1	Head Tube Badge	Clean frame surface, center on headtube
B	72-21292	1	Shimano BM-E8030	For EP801 use battery mount BM-EN801 (72-24168)
C	78-21554	1	Shimano BT-E8036	For EP801 use battery BT-EN806 (78-24169)
D	26-18382	6	M4x12 BHCS	Apply grease to treads	0.65 Nm
E	30-22329	1	Bullit 3C battery cover
F	26-15939	2	M3x12 BHCS	Apply Loctite 242 to threads	0.1 Nm
G	30-22358	1	DU Protector
H	26-22358	1	M3x6	Apply Loctite 242 to threads	0.6 Nm
I	26-19207	2	Hose Grommet
J	34-20201	2	36.4 Seat Collar

Hereinzoomen

Herauszoomen

Upper and Lower Linkage Bolts

label	part_number	quantity	torque	name	blurb
A	26-20122	2	16 Nm	M10x23 Screw	Apply Loctite 242 to threads only, apply grease to shaft only
B	26-21360	2		Water Bottle Screw
C	08-22343	2	20 Nm	Pivot Axle M15x91	Apply Loctite 242 to threads only, apply grease to shaft only
D	26-15633	3		M6 Tapered Washer	Apply grease to surface
E	26-11817	3		M6 Washer
F	26-15947	3	9 Nm	M6x20 SHCS	Apply Loctite 242 to threads
G	26-21231	1	22 Nm	M8x50 Shock Bolt	Apply loctite 242 to threads
H	72-21270	1		Shimano EW-CP100	Charge port for EP8 & EP801
I	26-15939	2	0.1 Nm	M3x12 BHCS	Apply Loctite 242 to threads
J	26-21223	1	12.5 Nm	M8x20 BHCS	Apply Loctite 242 to threads
K	72-21559	1		Shimano DC-EP800	For EP801 use DC-EP801 (72-24172)
L	08-20879	1	20 Nm	Pivot Axle M15x72	Apply Loctite 242 to threads only, apply grease to shaft only
M	26-21231	1	22 Nm	M8x50 Shock Bolt	Apply loctite 242 to threads

Hereinzoomen

Herauszoomen

Rear Axle, Derailleur Hanger, and Chainstay Protector

label	part_number	quantity	name	blurb	torque
A	08-22209	1	Rear axle 12x173.7	Apply grease to shaft and threads
B	23-23491	1	SCB UDH	Interchangeable with Sram UDH
C	26-23492	1	SCB UDH screw	Reverse thread	20 Nm
D	30-21226	1	Chainstay Protector
E	26-15939	1	M3x12 BHCS	Apply Loctite 242 to threads	0.1 Nm
F	30-20189	1	Chainstay Protector
G	26-21223	3	M8x20 BHCS	Apply Loctite 242 to threads	12.5 Nm
H	26-18382	2	M4x12 BHCS	Apply grease to treads	0.65 Nm
I	49-21567	1	Lower Link Fender
J	30-21453	1	Seatstay Protector
K	26-21361	1	Hose Grommet Single
L	26-15939	1	M3x12 BHCS	Apply Loctite 242 to threads	0.1 Nm
M	72-22286	1	Shimano Speed Sensor	Use for both EP8 & EP801

Hereinzoomen

Herauszoomen

Upper Link

label	part_number	quantity	name	blurb
A	29-22342	1	Upper Link
B	11-12681	2	6900-2RS Bearing
C	26-15533	2	M10x3 Washer	Apply grease to inner surface
D	26-11612	2	Bearing Dust Shield	Apply grease to inner surface
E	11-12218	2	6902-2RS Max Bearing
F	26-17013	1	15x40.25 Bearing Spacer

Hereinzoomen

Herauszoomen

Lower Link

label	part_number	quantity	name	blurb	torque
A	29-22341	1	Lower Link
B	11-17708	4	6902-1ZR Bearing
C	26-11612	4	Bearing Dust Shield	Apply grease to inner surface
D	26-20880	1	15x32 Bearing Spacer
E	26-17707	1	15x48 Bearing spacer
F	26-12678	1	M6 Grease Fitting		9 Nm
G	26-15532	1	M5x5 Set Screw	Apply Loctite 242 to threads, titghten until flush	0.5 Nm

Hereinzoomen

Herauszoomen

Dateien

Wenn Du mehr Informationen zu Deinem Bike suchst, findest Du sie im Santa Cruz Bicycles-Benutzerhandbuch.

• Santa Cruz Bicycles User Manual
• 2022 Santa Cruz Bicycles E bike User Manual Supplement all
• DoC Heckler9 and Bullit 3 MY24
