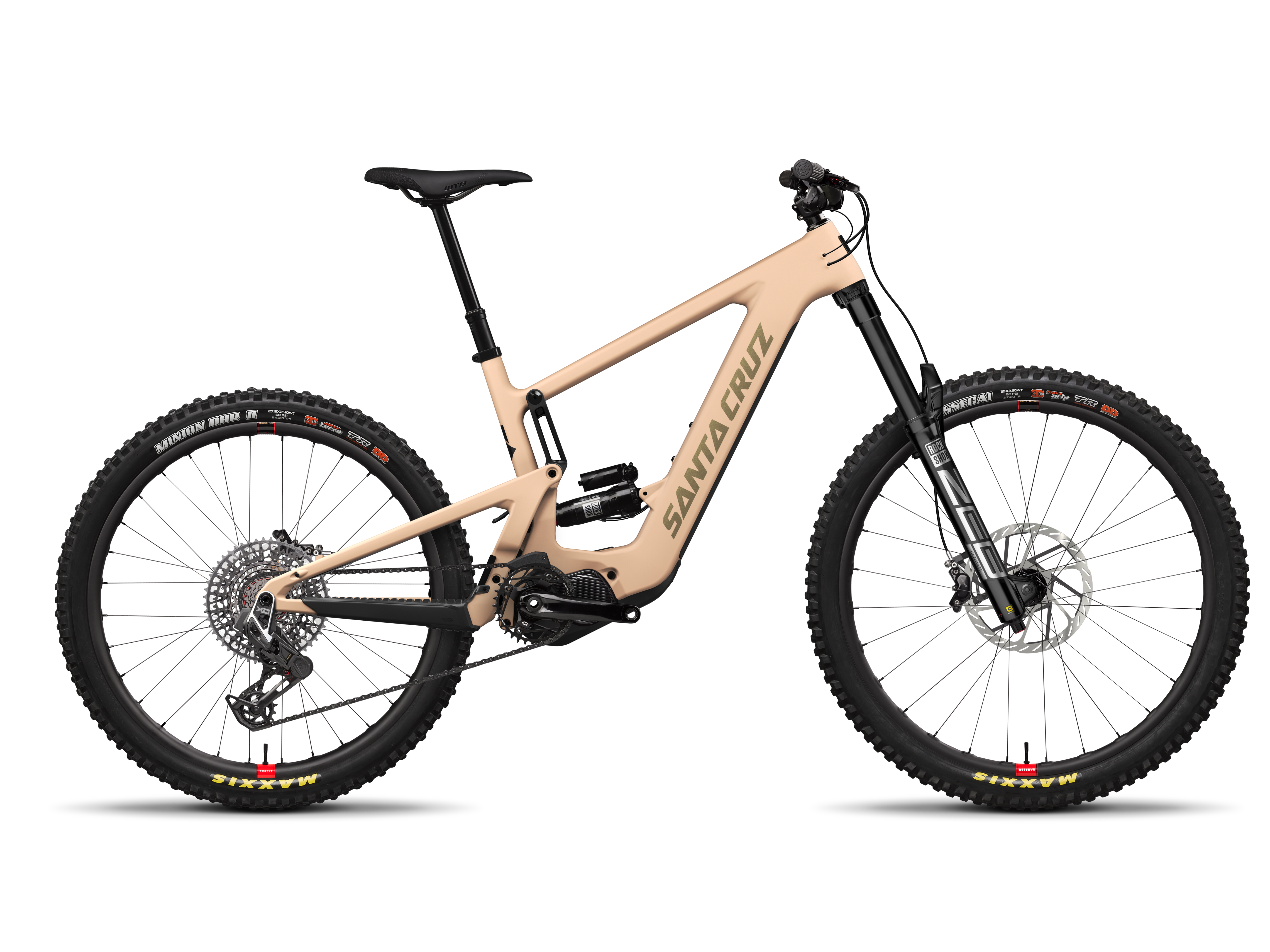

Bullit X0 AXS RSV

CHF 10,999.00 CHF

Carbon CC Frame
RockShox Zeb Ultimate Fork
RockShox Super Deluxe Ultimate Shock
SRAM X0 Eagle AXS T-Type Drivetrain
Shimano Drive Unit DU-EP801 Drive Unit

Color: Gloss Carbon

Gloss Carbon (Bullit 2024)

Matte Cider (Bullit 2024)

Size: M (5'5" - 5'9" / 165 - 175cm)

Trova un rivenditore

Domande? Scrivici

Carbon CC

Front Travel (MM) 170

Rear travel (MM) 170

Wheel Size MX

Peso (lbs)

Peso (lbs) 49.1

Peso (kg) 22.27

Se sei attratto dal gravity riding ma cerchi un aiuto in più per risalire al punto di partenza in autonomia, la Bullit fa al caso tuo. Progettata specificamente per affrontare i terreni più impegnativi, ma equipaggiata con una drive unit in grado di riportarti velocemente in vetta, la Bullit ti permettere di avere a disposizione una muscolosa bici da downhill con impianto di risalita di serie.

Dig Deep

Specs, sizing and support for the Bullit X0 AXS RSV

Detail image of a Bullit rear brake rotor and caliper.

Build kit
& Specs

Detail image of a Bullit headtube and cockpit from the front.

Geometry
& Sizing

Detail image of a Bullit's rear shock and linkage.

	m	l	xl	xxl
Reach	450	475	495	515
Stack	621	630	648	670.4
Head tube angle	64°	64°	64°	64°
Seat Tube Length	405	430	460	500
Front Center	789.4	818.8	847.5	878.5
BB Height	348	348	348	348
BB Drop	25.5/6.5	25.5/6.5	25.5/6.5	25.5/6.5
Wheelbase	1238.5	1267.9	1296.7	1327.7
Rear Center	449	449	449	449
Head Tube Length	100	110	130	155
Top Tube Length	591.3	619.2	644.9	672.1
Seat Tube Angle	77.2°	77.1°	77°	76.8°
Standover Height	748	747	745	745

Peso del Rider (lbs)	Peso del Rider (kg)	Pressione (psi)	Rebound (da chiuso)
100	45	47	12
120	54	55	11
140	64	64	10
160	73	72	9
180	82	80	8
200	91	88	6
220	100	96	4
240	109	104	3

Peso del Rider (lbs)	Peso del Rider (kg)	Pressione (psi)	Sag	Rebound (da chiuso)
100	45	100	29-32%, 18-20mm	7
120	54	125	29-32%, 18-20mm	7
140	63	145	29-32%, 18-20mm	7
160	72	170	29-32%, 18-20mm	6
180	81	190	29-32%, 18-20mm	6
200	90	215	29-32%, 18-20mm	6
220	99	235	29-32%, 18-20mm	5
240	108	260	29-32%, 18-20mm	5
260	117	280	29-32%, 18-20mm	5

label	part_number	quantity	name	blurb	torque
A	67-19217	1	Head Tube Badge	Clean frame surface, center on headtube
B	72-21292	1	Shimano BM-E8030	For EP801 use battery mount BM-EN801 (72-24168)
C	78-21554	1	Shimano BT-E8036	For EP801 use battery BT-EN806 (78-24169)
D	26-18382	6	M4x12 BHCS	Apply grease to treads	0.65 Nm
E	30-22329	1	Bullit 3C battery cover
F	26-15939	2	M3x12 BHCS	Apply Loctite 242 to threads	0.1 Nm
G	30-22358	1	DU Protector
H	26-22358	1	M3x6	Apply Loctite 242 to threads	0.6 Nm
I	26-19207	2	Hose Grommet
J	34-20201	2	36.4 Seat Collar

label	part_number	quantity	torque	name	blurb
A	26-20122	2	16 Nm	M10x23 Screw	Apply Loctite 242 to threads only, apply grease to shaft only
B	26-21360	2		Water Bottle Screw
C	08-22343	2	20 Nm	Pivot Axle M15x91	Apply Loctite 242 to threads only, apply grease to shaft only
D	26-15633	3		M6 Tapered Washer	Apply grease to surface
E	26-11817	3		M6 Washer
F	26-15947	3	9 Nm	M6x20 SHCS	Apply Loctite 242 to threads
G	26-21231	1	22 Nm	M8x50 Shock Bolt	Apply loctite 242 to threads
H	72-21270	1		Shimano EW-CP100	Charge port for EP8 & EP801
I	26-15939	2	0.1 Nm	M3x12 BHCS	Apply Loctite 242 to threads
J	26-21223	1	12.5 Nm	M8x20 BHCS	Apply Loctite 242 to threads
K	72-21559	1		Shimano DC-EP800	For EP801 use DC-EP801 (72-24172)
L	08-20879	1	20 Nm	Pivot Axle M15x72	Apply Loctite 242 to threads only, apply grease to shaft only
M	26-21231	1	22 Nm	M8x50 Shock Bolt	Apply loctite 242 to threads
