Heckler SL 70
Build Kit & Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
| Material | |
| Features | |
| Suspension | |
| Fork | |
| Shock | |
| Drivetrain | |
| Rear Derailleur | |
| Shifter | |
| Crankset | |
| Crank Length | |
| Cassette | |
| Chain | |
| Bottom Bracket | |
| Brakes | |
| Brakes | |
| Front Brake | |
| Front Rotor | |
| Front Rotor | |
| Rear Rotor | |
| Rear Rotor | |
| Cockpit | |
| Handlebars | |
| Handlebars | |
| Stem | |
| Stem Length | |
| Grips | |
| Grips | |
| Headset | |
| Seatpost | |
| Seatpost | |
| Dropper Length | |
| Saddle | |
| Wheels | |
| Front Rim | |
| Front Hub | |
| Front Tire | |
| Rear Rim | |
| Rear Hub | |
| Rear Tire | |
| Valves | |
| Ebike | |
| Battery | |
| Drive Unit | |
| Specs | |
| Headset | |
| Seat Post Diameter | |
| Seat Clamp Diameter | |
| Rear Brake Mount | |
| Max Rotor Size | |
| Bottom Bracket Shell | |
| UDH Compatible | |
| Max Tire Clearance | |
| Max Chainring Size | |
| Water Bottle Mounts | |
| Shock Length | |
| Shock Stroke | |
| Shock Bushing Size Front | |
| Shock Bushing Size Rear | |
| Shock Mounting Hardware Upper | |
| Shock Mounting Hardware Lower | |
| Fork Offset |
Heckler SL 70
Sizing & Geometry
Find your Size
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Small
Medium
Large
X-Large
XX-Large
154cm
5'1"
-
165cm
5'5"
Reach: 435mm
165cm
5'5"
-
175cm
5'9"
Reach: 460mm
172cm
5'8"
-
185cm
6'1"
Reach: 480mm
182cm
6'0"
-
193cm
6'4"
Reach: 500mm
190cm
6'3"
-
200cm
6'7"
Reach: 525mm
All units are in millimeters or degrees.
| s | m | l | xl | xxl | |
|---|---|---|---|---|---|
| A. Reach (Hi/Lo) | 435/432.4 | 460/457.4 | 480/477.5 | 500/497.4 | 525/522.5 |
| B. Stack | 614.9/616.8 | 624/625.8 | 633/634.9 | 651/653 | 664.5/666.5 |
| Head tube angle | 64.3/64 | 64.3/64 | 64.3/64 | 64.3/64 | 64.3/64 |
| K. Head Tube Length | 100 | 110 | 120 | 140 | 155 |
| G. Rear Center | 443/443.8 | 443/443.8 | 443/443.8 | 446/446.8 | 450/450.7 |
| F. Front Center | 766.1/765.9 | 795.4/795.3 | 819.7/819.6 | 848.4/848.3 | 879.9/879.8 |
| H. BB Height | 344/340.7 | 344/340.7 | 344/340.7 | 344/340.7 | 344/340.7 |
| Bb drop front | 28.5/31.8 | 28.5/31.8 | 28.5/31.8 | 28.5/31.8 | 28.5/31.8 |
| Bb drop rear | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 |
| Wheel base | 1209.1/1209.7 | 1238.4/1239.1 | 1262.7/1263.4 | 1294.4/1295.1 | 1329.9/1330.5 |
| M. Top Tube Length | 569.2/579.6 | 602.7/602.9 | 620.6/621.5 | 641.8/642.7 | 669.1/670 |
| L. Seat Tube Length | 380/380 | 405/405 | 430/430 | 460/460 | 500/500 |
| D. Seat Tube Angle | 76.8/76.6 | 77.1/76.9 | 77.5/77.2 | 77.7/77.5 | 77.8/77.5 |
| J. Standover Height | 720.1/716.2 | 733/728.8 | 733.4/729.3 | 731.7/731.6 | 741/738.6 |
Heckler SL 70
Setup & Support
Whether you’re the proud owner of a Heckler SL or are just digging deep into the details you’ll find it all here.
Fox Rhythm
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) |
|---|---|---|---|---|
| 100 | 45 | 120 | 29-31% | 9 |
| 120 | 54 | 145 | 29-31% | 8 |
| 140 | 64 | 170 | 29-31% | 8 |
| 160 | 73 | 195 | 29-31% | 7 |
| 180 | 82 | 220 | 29-31% | 7 |
| 200 | 91 | 245 | 29-31% | 6 |
| 220 | 100 | 270 | 29-31% | 6 |
| 240 | 109 | 295 | 29-31% | 5 |
| 260 | 118 | 320 | 29-31% | 5 |
Rockshox Lyrik Base 160
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (from closed) |
|---|---|---|---|
| 100 | 45 | 60 | 13 |
| 120 | 54 | 70 | 12 |
| 140 | 64 | 80 | 10 |
| 160 | 73 | 90 | 9 |
| 180 | 82 | 100 | 8 |
| 200 | 91 | 110 | 7 |
| 220 | 100 | 120 | 5 |
| 240 | 109 | 130 | 4 |
Upper Link
| label | part_number | quantity | name | blurb |
|---|---|---|---|---|
| A | 29-25028 | 1 | Upper Link | |
| B | 11-12681 | 2 | 6900-2RS Bearing | |
| C | 26-15533 | 2 | M10x3 Washer | Apply grease to inner surface |
| D | 11-12218 | 2 | 6902-2RS Max Bearing | |
| E | 26-11612 | 2 | Bearing Dust Shield | Apply grease to inner surface |
| F | 26-17013 | 1 | 15x40.25 Bearing Spacer |
Loading
Lower Link
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 29-25027 | 1 | Lower Link | ||
| B | 26-11612 | 4 | Bearing Dust Shield | Apply grease to inner surface | |
| C | 11-17708 | 4 | 6902-1ZR Bearing | ||
| D | 26-17707 | 1 | 15x47.7 Bearing Spacer | ||
| E | 26-17013 | 1 | 15x40.25 Bearing Spacer | ||
| F | 26-15532 | 1 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | |
| G | 26-12678 | 1 | M6 Grease Fitting | 9 Nm |
Loading
Battery Mounting Hardware
| label | part_number | quantity | torque | name | blurb |
|---|---|---|---|---|---|
| A | 26-25295 | 4 | 1.2 Nm | M4x12 SHCS | Apply Loctite 242 to threads |
| B | 26-25288 | 1 | Fix 430 mount | ||
| C | 26-25283 | 2 | 9 Nm | M6x10 BHCS | Apply Loctite 242 to threads |
| D | 78-24791 | 1 | Fazua Energy 430 Fix | ||
| E | 26-25137 | 1 | Fix 430 mount | ||
| F | 26-18382 | 1 | 0.6 Nm | M4x12 BHC | Apply grease to treads |
Loading

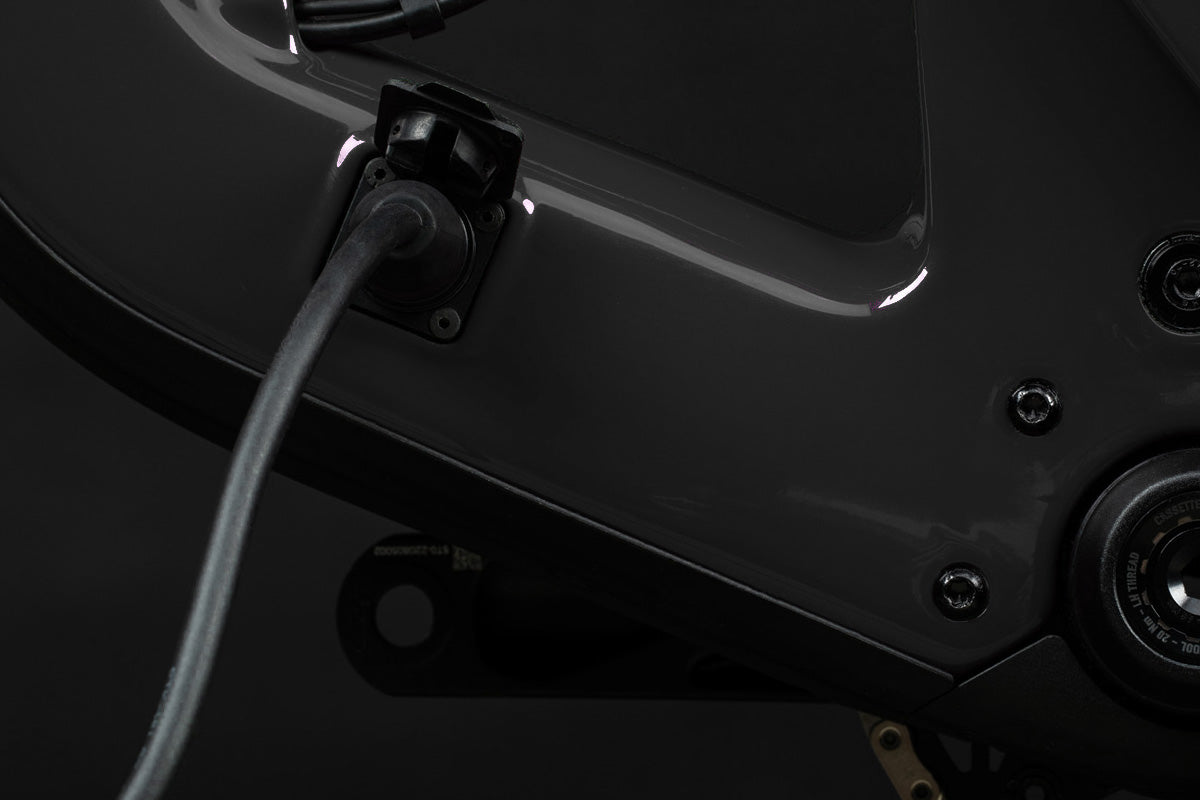

Charging Port
| label | part_number | quantity | name | torque | blurb |
|---|---|---|---|---|---|
| A | 26-25196 | 1 | Fazua charge port mount | ||
| B | 72-24768 | 1 | Fazua charge port cap | ||
| C | 72-24771 | 1 | Fazua Charge port, short wire | ||
| D | 26-15938 | 4 | M3x10 FHCS | 0.5 Nm | Apply Loctite 242 to threads |
| E | 26-27112 | 1 | Fazua charge port cover | Used with range extender only |
Loading
Rear Axle, Derailleur Hanger, and Chainstay Protector
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 08-22209 | 1 | Rear axle 173.7 | Apply grease to shaft and threads | |
| B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
| C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20 Nm |
| D | 30-25289 | 1 | Chainstay Protector | ||
| E | 26-15939 | 2 | M3x12 BHCS | Apply grease to treads | 0.5 Nm |
| F | 30-21453 | 1 | Seatstay Protector | ||
| G | 72-27041 | 1 | Fazua speed sensor, XL wire | ||
| H | 26-25140 | 1 | Speed Sensor Cover |
Loading
Motor Mounts and Chain Guide
| label | part_number | quantity | name | torque | blurb |
|---|---|---|---|---|---|
| A | 49-21567 | 1 | Lower Link Fender | ||
| B | 26-18382 | 2 | M4x12 BHC | 0.6 Nm | Apply grease to treads |
| C | 26-25294 | 6 | M6x22 BHCS | 14 Nm | Apply Loctite 242 to threads |
| D | 26-18382 | 3 | M4x12 BHC | 0.6 Nm | Apply grease to treads |
| E | 30-25292 | 1 | DU protector | ||
| F | 26-22570 | 1 | M5x12 HHS | 2 Nm | Apply Loctite 242 to threads |
| G | 26-22571 | 1 | OneUp chainguide back plate | ||
| H | 26-22572 | 1 | OneUp chainguide mount | ||
| I | 19-22609 | 1 | OneUp chainguide | ||
| J | 26-22938 | 2 | M4x10 FHCS | 0.65 Nm | Apply Loctite 242 to threads |
Loading
Frame Mounting Hardware
| label | part_number | quantity | name | torque | blurb |
|---|---|---|---|---|---|
| A | 26-21360 | 2 | Water Bottle Screw | ||
| B | 26-20122 | 2 | M10x23 Screw | 16 Nm | Apply Loctite 242 to threads only, apply grease to shaft only |
| C | 26-25139 | 1 | DT Plug | ||
| D | 26-25138 | 1 | DT Plug for Range Extender | Apply Loctite 242 to threads | |
| E | 26-15947 | 3 | M6x20 SHCS | 9 Nm | |
| F | 26-11817 | 3 | M6 Washer | ||
| G | 26-15633 | 3 | M6 Tapered Washer | Apply grease to surface | |
| H | 08-22343 | 2 | Pivot Axle M15x90.75 | 20 Nm | Apply Loctite 242 to threads only, apply grease to shaft only |
| I | 26-22461 | 2 | M8x45 Shock Bolt | 20 Nm | Apply Loctite 242 to threads |
| J | 26-19207 | 1 | Hose Grommet | ||
| K | 08-16292 | 1 | Pivot Axle M15x80.5 | 20 Nm | Apply Loctite 242 to threads only, apply grease to shaft only |
| L | 26-21452 | 1 | M8x2 Flip Chip NDS | Apply grease to surface | |
| M | 26-21451 | 1 | M8x2 Flip Chip DS | Apply grease to surface |
Loading
Head Badge, Control Unit, and Downtube protector
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 72-24784 | 1 | Fazua LED Hub, long wire | Insert foam tube 26-17568 onto long wire | |
| B | 67-19217 | 1 | Head Tube Badge | Clean frame surface, center on headtube | |
| C | 30-25291 | 1 | Downtube Protector | ||
| D | 26-18382 | 1 | M4x12 BHC | Apply grease to treads | 0.6 Nm |
| E | 34-20201 | 3 | 36.4 Seat Collar |
Loading
| Frame Size | Setup Key | Setup Cog | 30T | 32T | 34T | 36T |
|---|---|---|---|---|---|---|
| Small | B | 7 | 116 | 118 | 118 | 120 |
| Medium | B | 7 | 116 | 118 | 118 | 120 |
| Large | B | 7 | 116 | 118 | 118 | 120 |
| XLarge | B | 7 | 116 | 118 | 118 | 120 |
| XXLarge | B | 7 | 118 | 118 | 120 | 120 |
| *same setup flip chip hi or low |
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
- Santa Cruz Bicycles User Manual
- FAZUA ride60 User Manual NL
- FAZUA ride60 User Manual IT
- FAZUA ride60 User Manual PL
- FAZUA ride60 User Manual PT
- FAZUA ride60 User Manual DE
- FAZUA ride60 User Manual FR
- FAZUA ride60 User Manual US
- FAZUA ride60 User Manual ES
- Heckler SL and Skitch Declaration of Conformity DoC MY25 MYXX
