Bullit

Federweg vorne (mm) 170

Federweg hinten (mm) 170

Laufradgröße MX

Leistung (W) 630

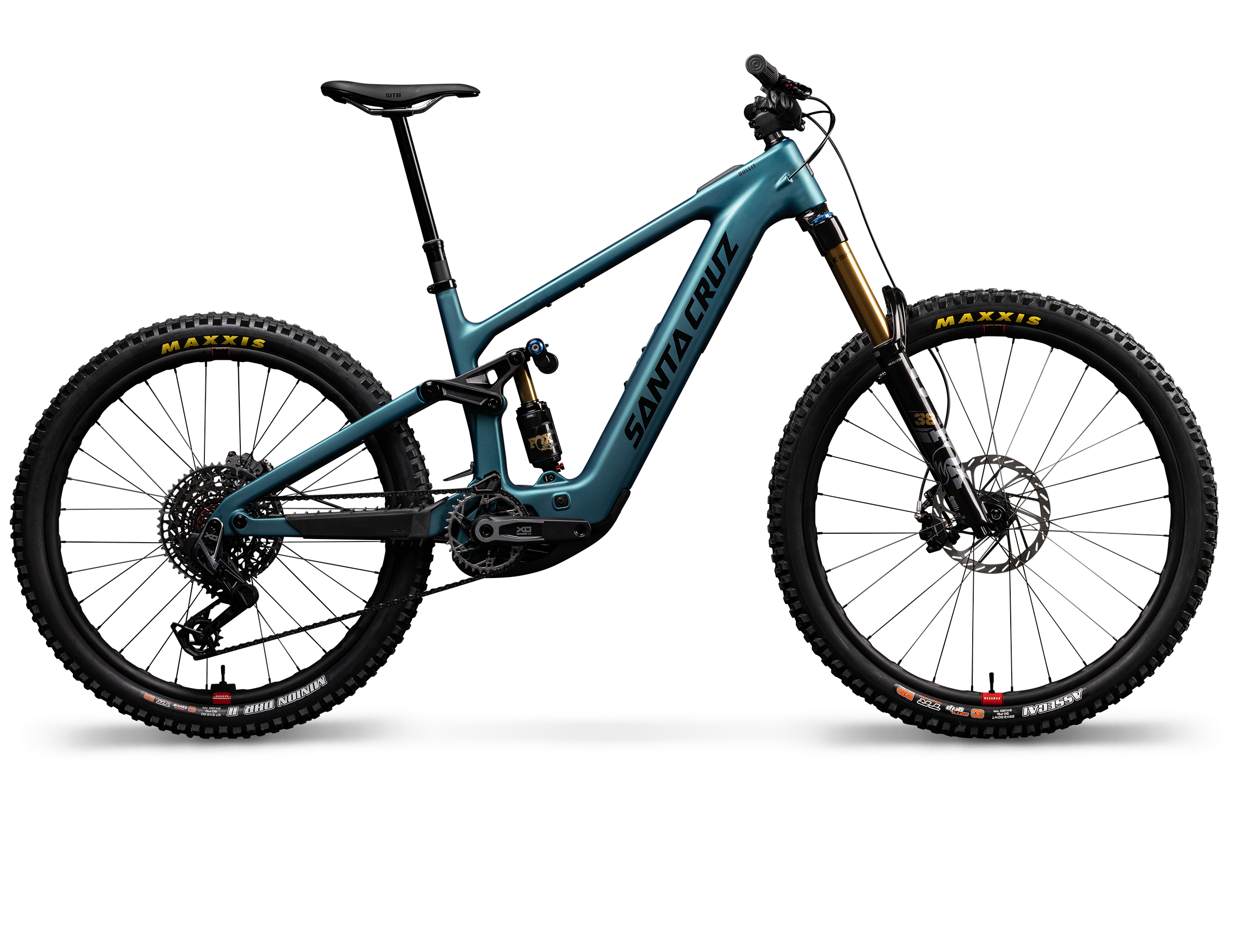

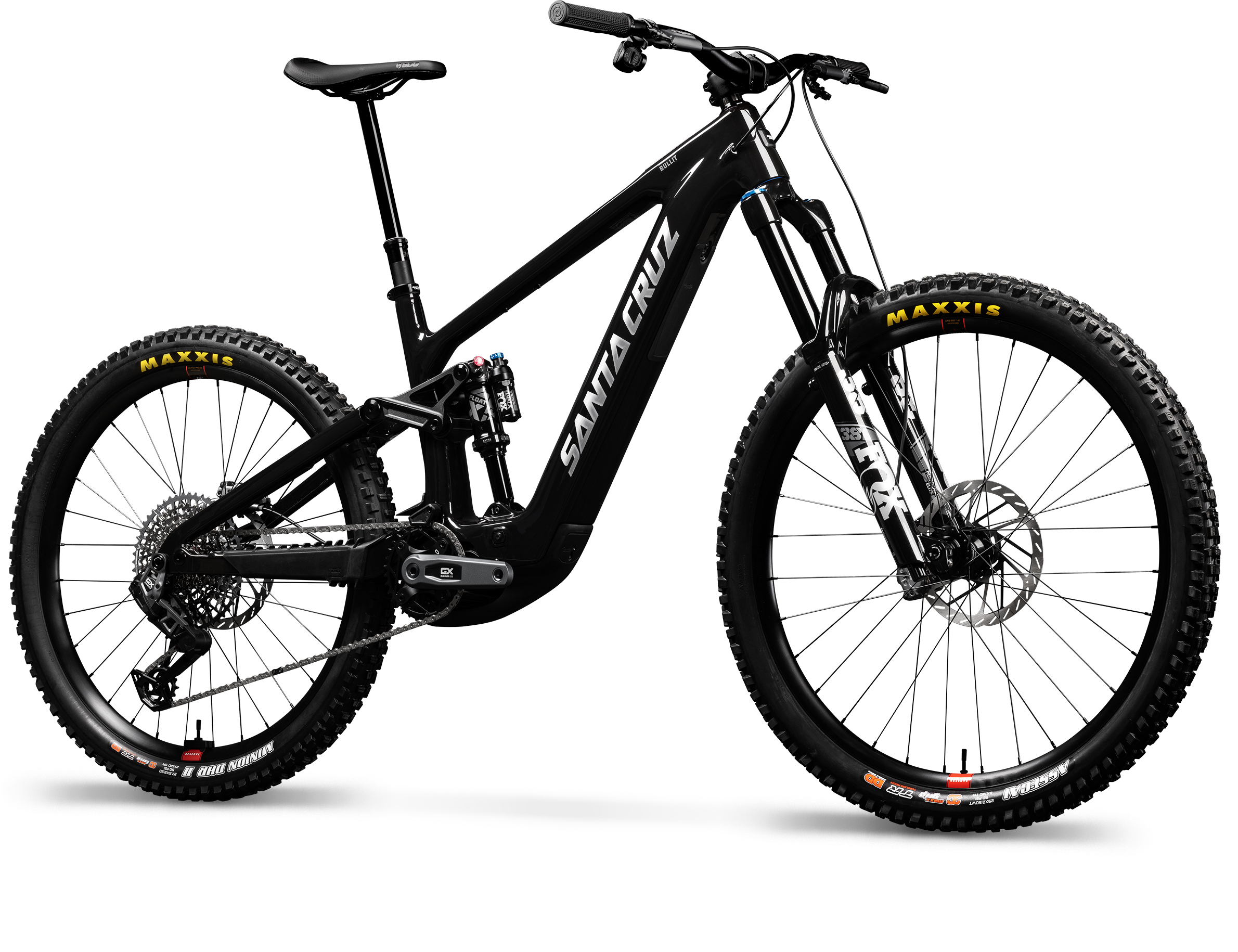

A DOWNHILL BIKE WITH A BUILT-IN CHAIRLIFT

If you feel the pull of gravity riding but want an extra push to get to the top, the Bullit is for you. Specifically designed to excel on the toughest terrain, it features an electric motor to get you to the drop-in of the wildest trails. The Bullit is the closest you can get to owning both a downhill bike and a chairlift.

See The Bikes

TIME FRAMES SVEN MARTIN CAPTURES THE MOMENT

PEDAL-ASSIST

WHAT GOES UP, LOVES COMING DOWN

The Bullit takes a no-limits approach to ebikes. With DH-derived geometry, huge travel, and burly components, it thrives on challenging trails. The full carbon frame and hardware are so bulletproof that we offer a lifetime warranty.

MAX POWER

WHEN GRAVITY CALLS

The biggest trails are often further away and higher up the mountain. The full-power Shimano motor, paired with a large 630 Wh battery, ensures the Bullit will get you to the drop-in

Filter:

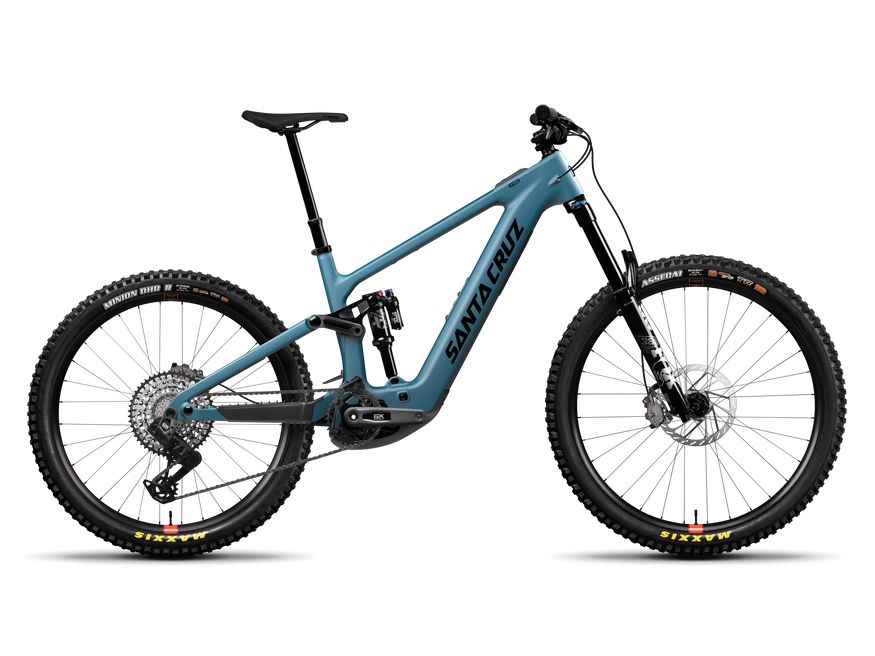

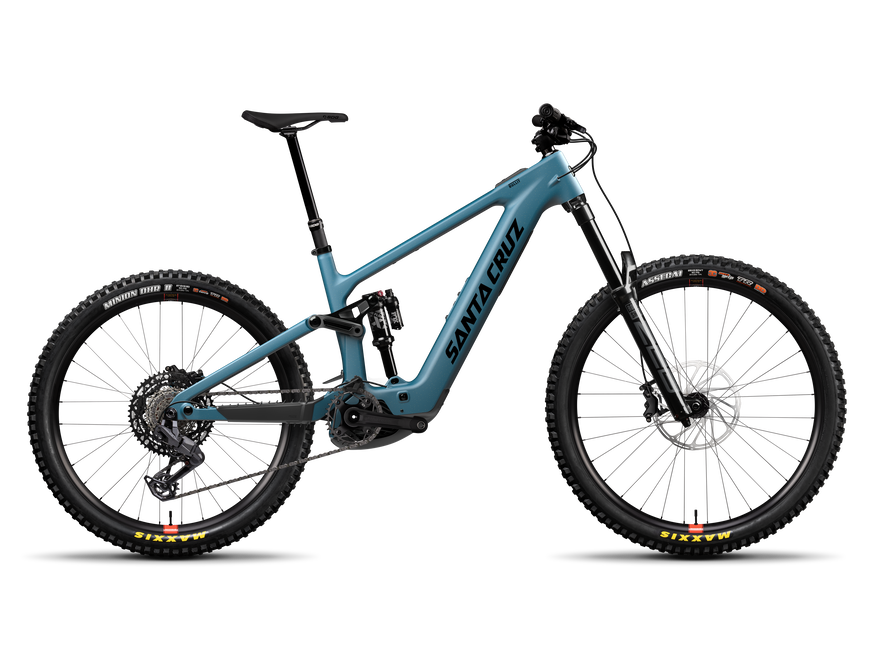

Bullit X0 AXS RSV Coil

Carbon CC

X0 AXS RSV COIL - SRAM X0 Transmission Schaltung, Highend-Ausstattung mit RESERVE DH Carbon-Felgen auf DT Swiss-Naben und Rockshox Super Deluxe Ultimate Stahlfederdämpfer.

£9,999

Vergleichen

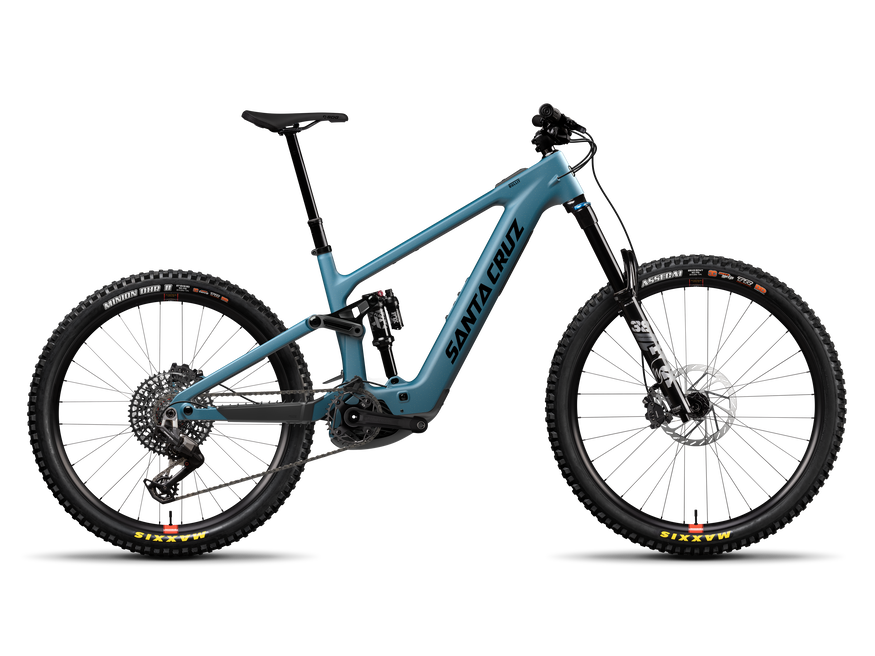

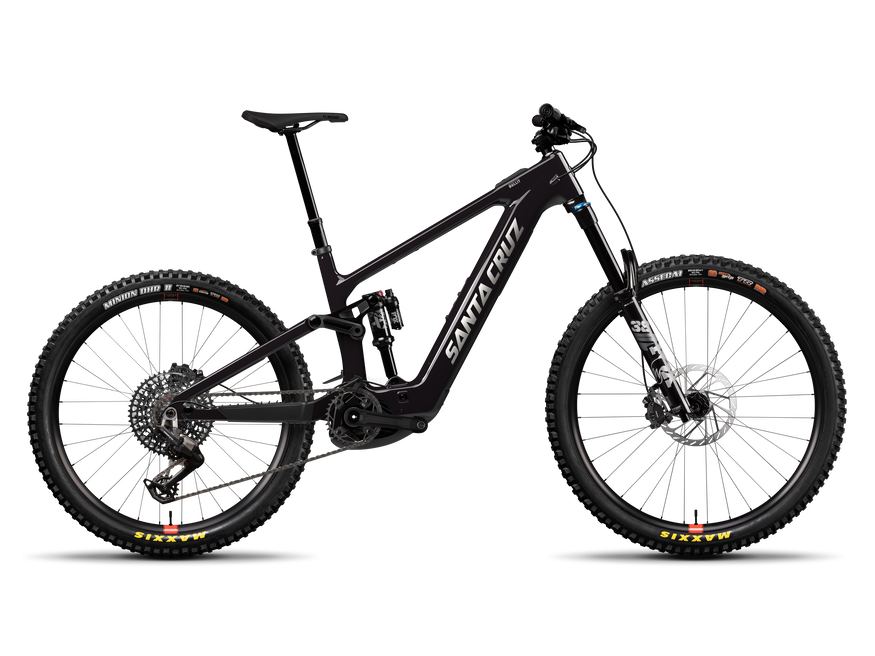

Bullit X0 AXS RSV

Carbon CC

X0 AXS RSV COIL - SRAM X0 Transmission Schaltung, Highend-Ausstattung mit RESERVE DH Carbon-Felgen auf DT Swiss-Naben und Rockshox Super Deluxe Ultimate Luftdämpfer.

£9,999

Vergleichen

Bullit GX AXS Coil

Carbon CC

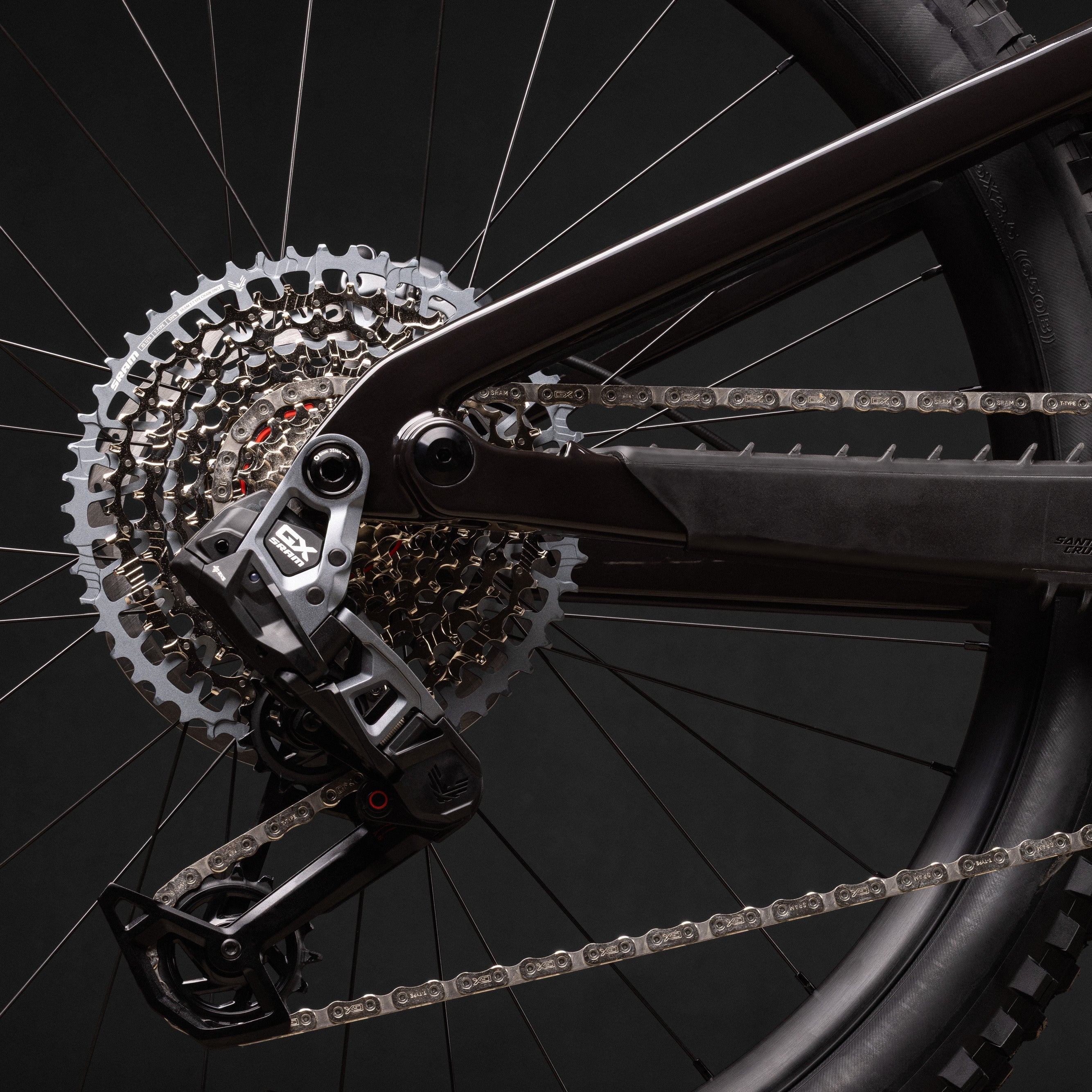

Elektronische SRAM GX Schaltung, kraftvolle SRAM Code Bremsen und Rockshox Super Deluxe Select+ Luftdämpfer

£8,800

Vergleichen

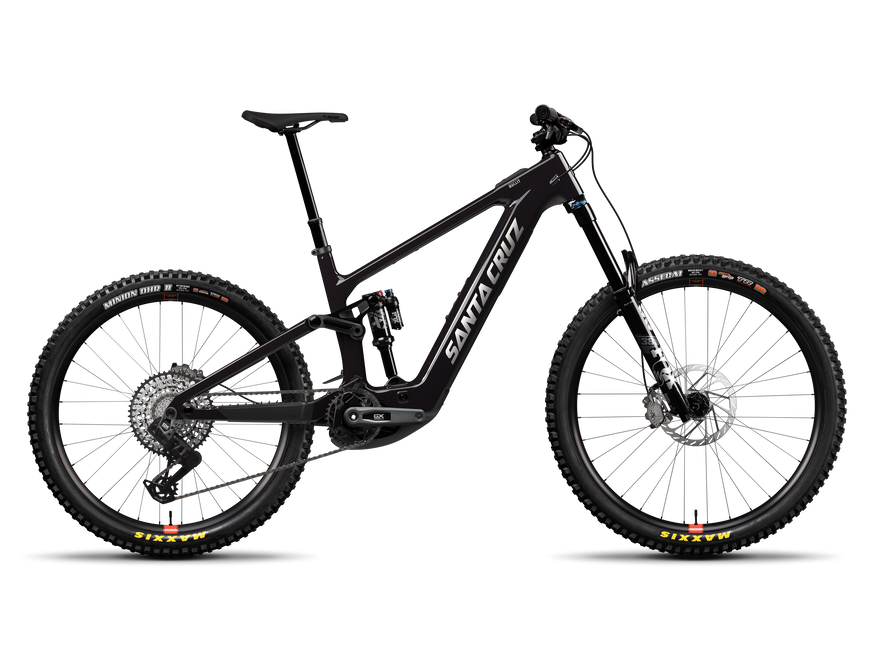

Bullit GX AXS

Carbon CC

Elektronische SRAM GX Transmission Schaltung, kraftvolle SRAM Code Bremsen und Rockshox Super Deluxe Select+ Luftdämpfer

£8,800

Vergleichen

Bullit S

Carbon CC

Hochwertigere Laufräder, Bremsen, Vorbau, Steuersatz, Sattelstütze und Carbonlenker. Mehr Einstellmöglichkeiten am Fahrwerk und mechanische SRAM Eagle Schaltung.

£6,649 ~~£7,699~~

Sale

Vergleichen

Bullit R

Carbon CC

Das Basismodell mit dem gleichen erstklassigen Motor, sowie Reifen und großen Bremsscheiben wie bei allen Bullit-Modellen. Hochwertiges Fahrwerk, nur ohne die externen Einstellmöglichkeiten.

£5,749 ~~£6,799~~

Sale

Vergleichen

Sorry, es gibt keine passenden Produkte.

Design Details

Full-Power

Das Shimano EP801 System bietet ein maximales Drehmoment von 85 Nm und eine Spitzenleistung von bis zu 600 Watt. Damit gehört die neueste Generation des Shimano-Antriebs zu den leistungsstärksten Systemen auf dem Markt.

630 Wh AKKU

Das Bullit hat einen großen 630Wh-Akku, der zum Wechseln oder Aufladen herausgenommen werden kann. Mehr Wattstunden = mehr Fahrzeit.

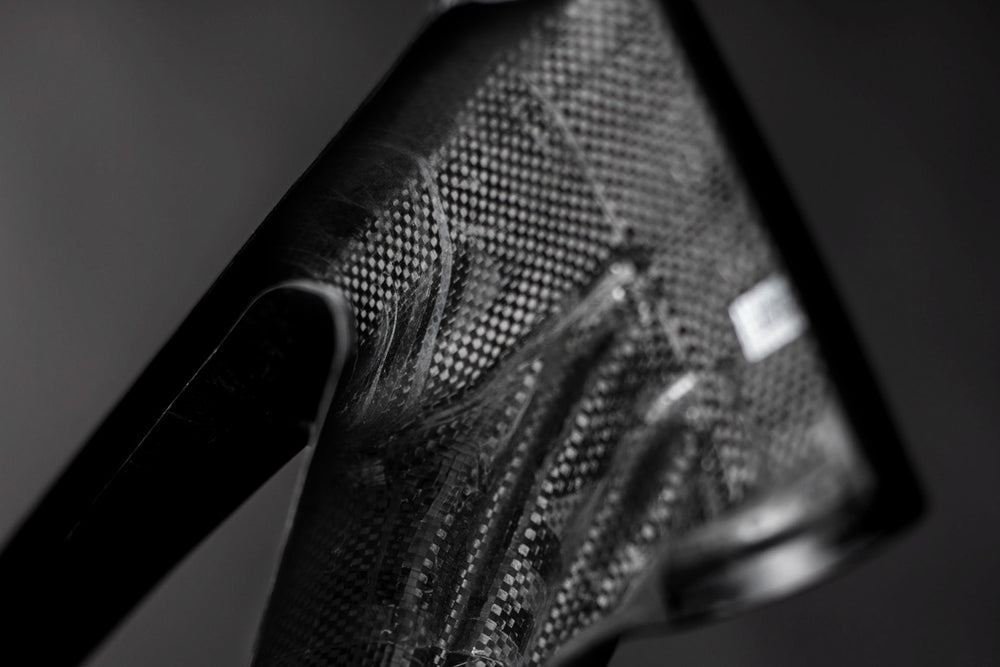

CC Carbon

Wenige beherrschen den Umgang mit Carbon wie Santa Cruz. Unsere Rahmen werden in der eigenen Fabrik hergestellt und haben lebenslange Garantie.

Mehr Infos

GEBAUT UM ZU HALTEN

Bikes sind keine Wegwerfartikel, aber wir werfen sie gerne quer über den Trail. Unsere Bikes sind gebaut, um zu halten.

Mehr Infos

Sweat the details

	m	l	xl	xxl
A. Reach	450	475	495	515
B. Stack	621	630	648	670.4
Head tube angle	64°	64°	64°	64°
Sitzrohrlänge	405	430	460	500
F. Front Center	789.4	818.8	847.5	878.5
Tretlagerhöhe	348	348	348	348
Tretlagerabsenkung	25.5/6.5	25.5/6.5	25.5/6.5	25.5/6.5
Radstand	1238.5	1267.9	1296.7	1327.7
Hinterbaulänge	449	449	449	449
Steuerrohrlänge	100	110	130	155
Oberrohrlänge	591.3	619.2	644.9	672.1
Sitzwinkel	77.2°	77.1°	77°	76.8°
Überstandshöhe	748	747	745	745

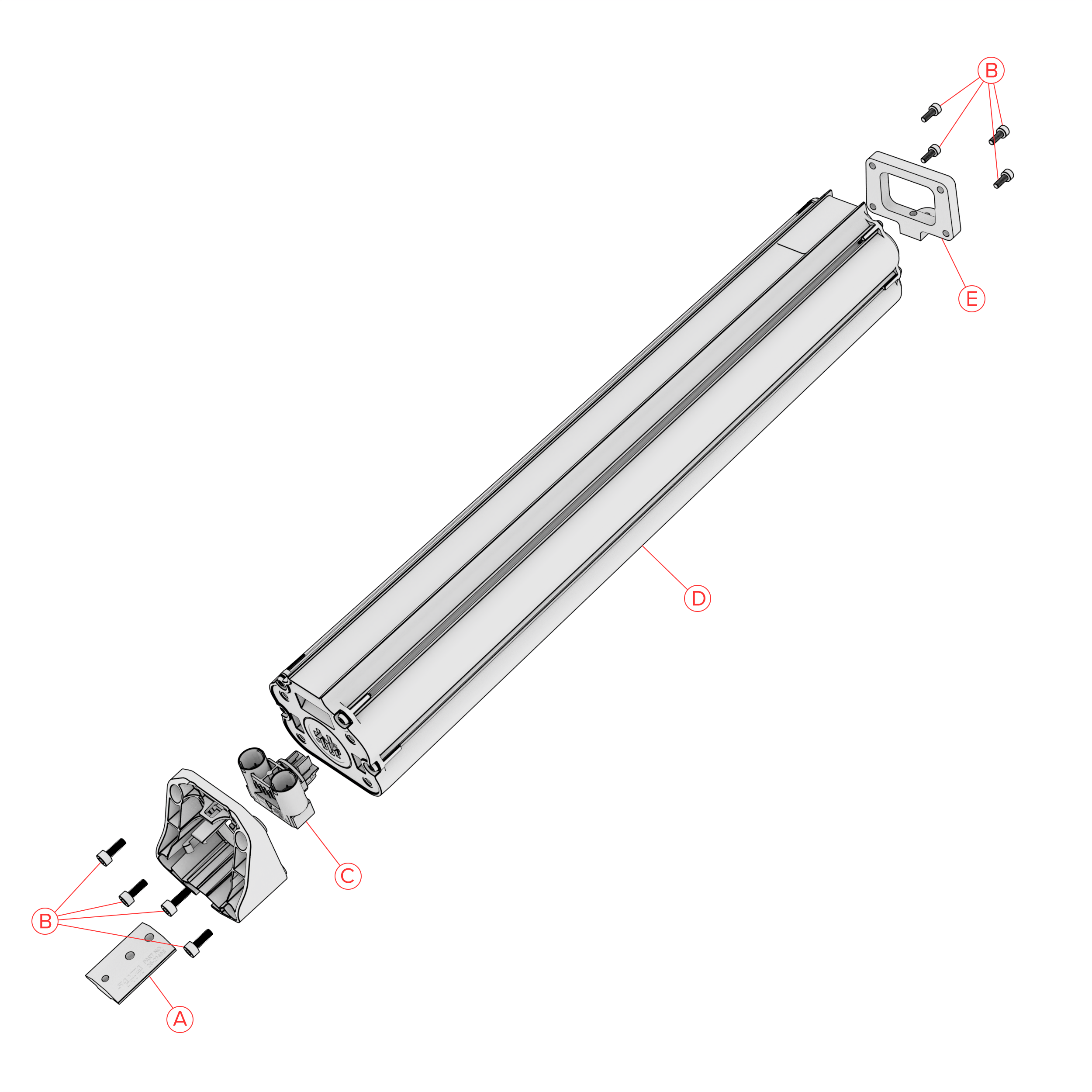

label	part_number	quantity	name	blurb	torque

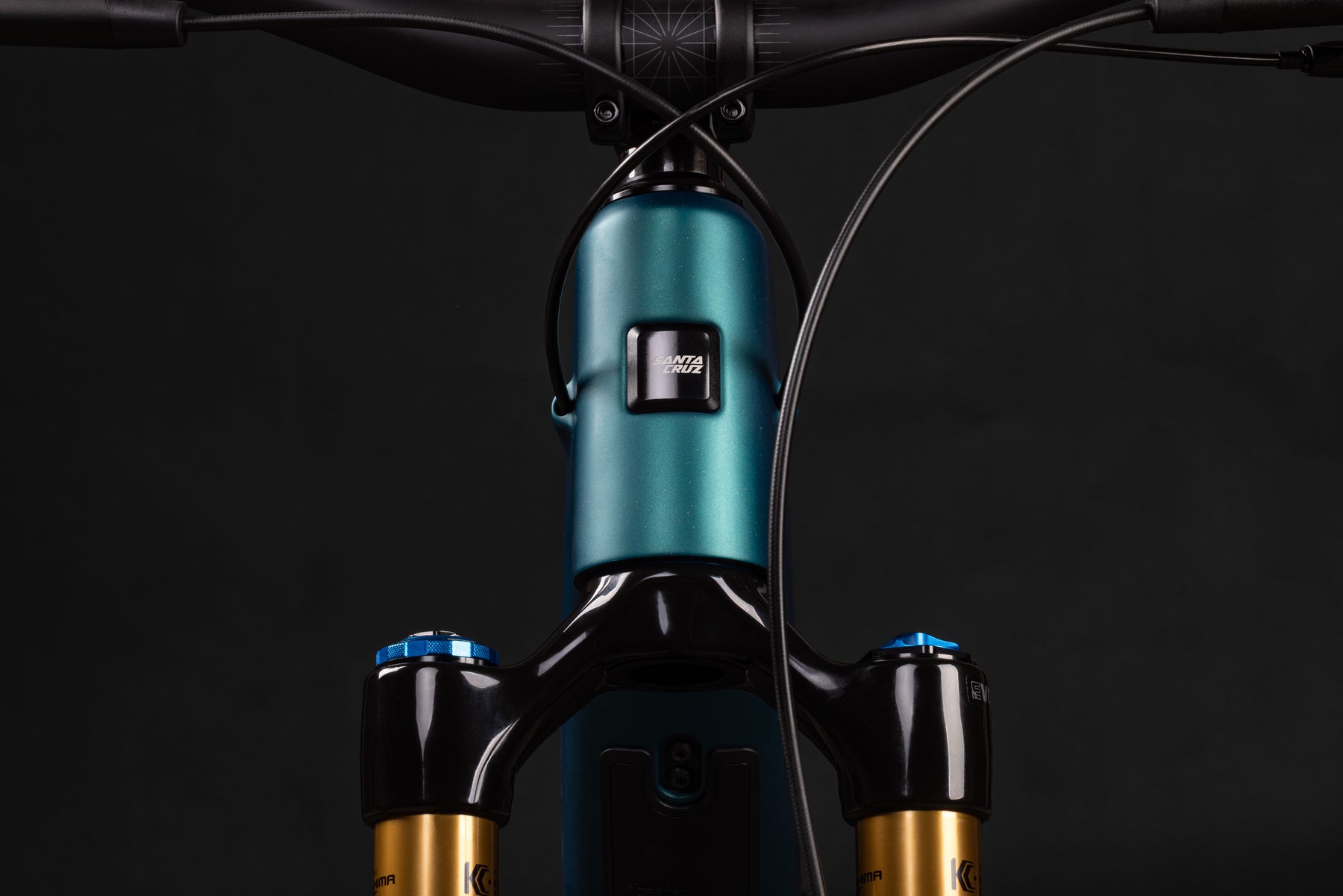

A	67-19217	1	Head Tube Badge	Clean frame surface, center on headtube
B	72-21292	1	Shimano BM-E8030	For EP801 use battery mount BM-EN801 (72-24168)
C	78-21554	1	Shimano BT-E8036	For EP801 use battery BT-EN806 (78-24169)
D	26-18382	6	M4x12 BHCS	Apply grease to treads	0.65 Nm
E	30-22329	1	Bullit 3C battery cover
F	26-15939	2	M3x12 BHCS	Apply Loctite 242 to threads	0.1 Nm
G	30-22358	1	DU Protector
H	26-22358	1	M3x6	Apply Loctite 242 to threads	0.6 Nm
I	26-19207	2	Hose Grommet
J	34-20201	2	36.4 Seat Collar

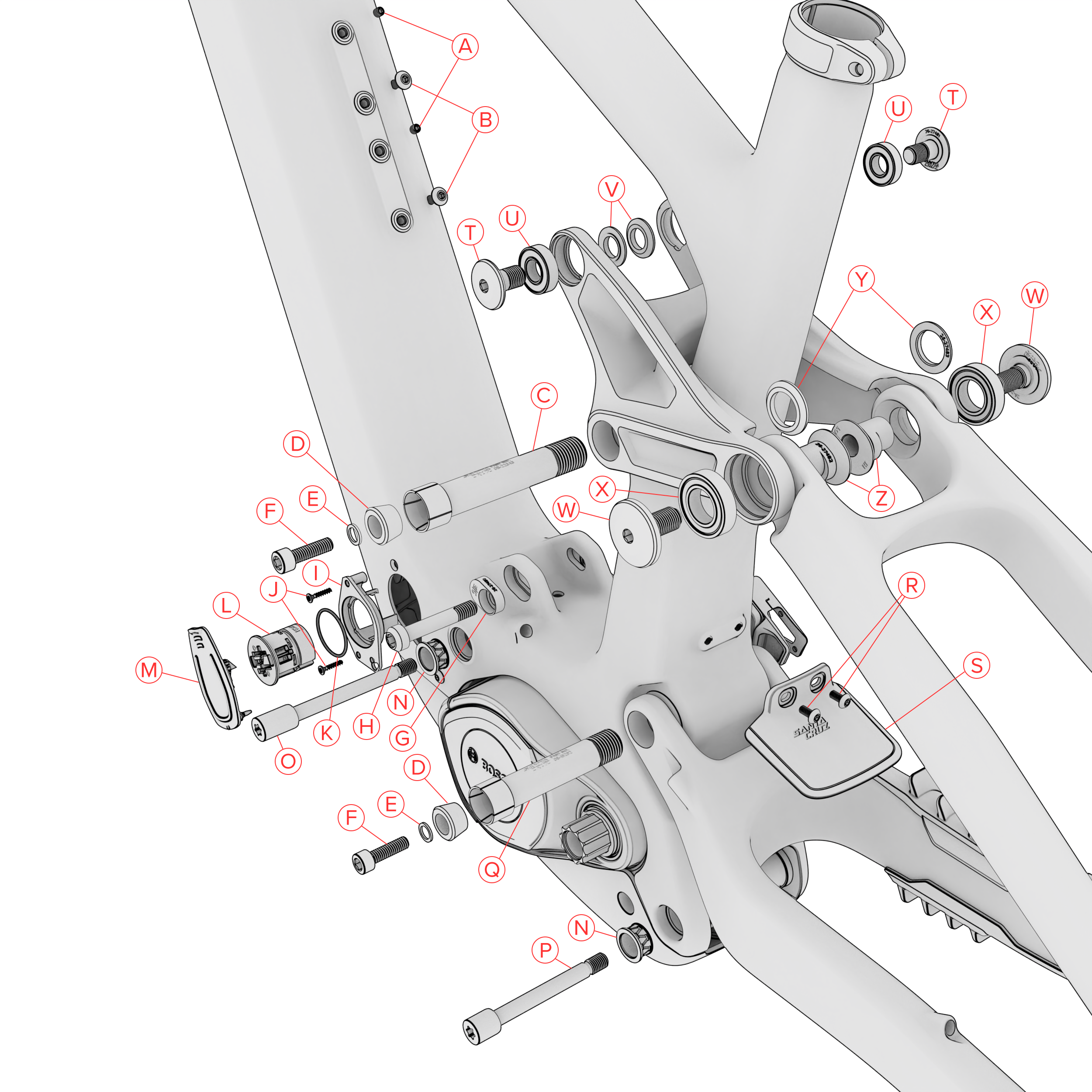

label	part_number	quantity	torque	name	blurb
A	26-20122	2	16 Nm	M10x23 Screw	Apply Loctite 242 to threads only, apply grease to shaft only
B	26-21360	2		Water Bottle Screw
C	08-22343	2	20 Nm	Pivot Axle M15x91	Apply Loctite 242 to threads only, apply grease to shaft only
D	26-15633	3		M6 Tapered Washer	Apply grease to surface
E	26-11817	3		M6 Washer
F	26-15947	3	9 Nm	M6x20 SHCS	Apply Loctite 242 to threads
G	26-21231	1	22 Nm	M8x50 Shock Bolt	Apply loctite 242 to threads
H	72-21270	1		Shimano EW-CP100	Charge port for EP8 & EP801
I	26-15939	2	0.1 Nm	M3x12 BHCS	Apply Loctite 242 to threads
J	26-21223	1	12.5 Nm	M8x20 BHCS	Apply Loctite 242 to threads
K	72-21559	1		Shimano DC-EP800	For EP801 use DC-EP801 (72-24172)
L	08-20879	1	20 Nm	Pivot Axle M15x72	Apply Loctite 242 to threads only, apply grease to shaft only
M	26-21231	1	22 Nm	M8x50 Shock Bolt	Apply loctite 242 to threads

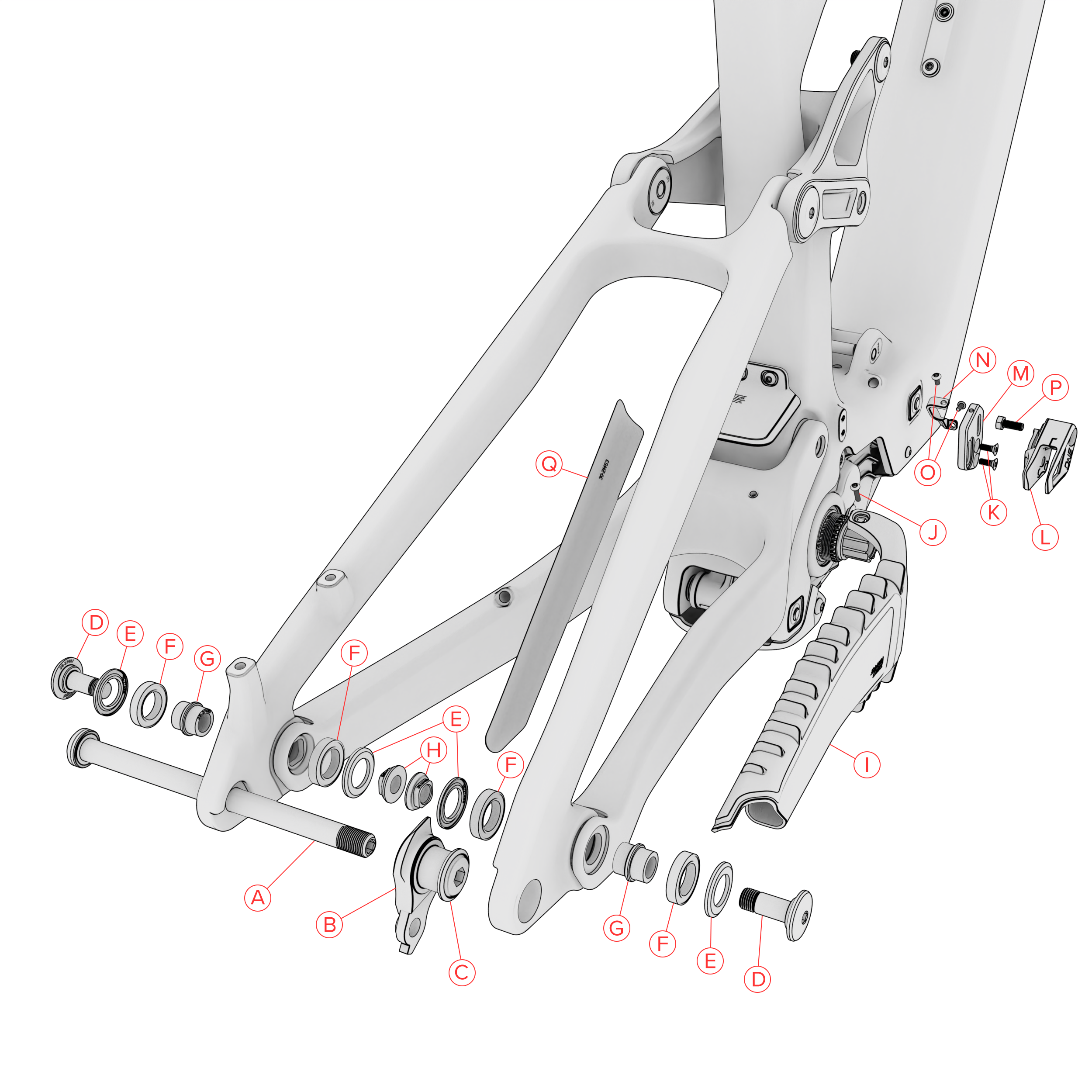

label	part_number	quantity	name	blurb	torque
A	08-22209	1	Rear axle 12x173.7	Apply grease to shaft and threads
B	23-23491	1	SCB UDH	Interchangeable with Sram UDH
C	26-23492	1	SCB UDH screw	Reverse thread	20 Nm
D	30-21226	1	Chainstay Protector
E	26-15939	1	M3x12 BHCS	Apply Loctite 242 to threads	0.1 Nm
F	30-20189	1	Chainstay Protector
G	26-21223	3	M8x20 BHCS	Apply Loctite 242 to threads	12.5 Nm
H	26-18382	2	M4x12 BHCS	Apply grease to treads	0.65 Nm
I	49-21567	1	Lower Link Fender
J	30-21453	1	Seatstay Protector
K	26-21361	1	Hose Grommet Single
L	26-15939	1	M3x12 BHCS	Apply Loctite 242 to threads	0.1 Nm
M	72-22286	1	Shimano Speed Sensor	Use for both EP8 & EP801

label	part_number	quantity	name	blurb
A	29-22342	1	Upper Link
B	11-12681	2	6900-2RS Bearing
C	26-15533	2	M10x3 Washer	Apply grease to inner surface
D	26-11612	2	Bearing Dust Shield	Apply grease to inner surface
E	11-12218	2	6902-2RS Max Bearing
F	26-17013	1	15x40.25 Bearing Spacer

label	part_number	quantity	name	blurb	torque
A	29-22341	1	Lower Link
B	11-17708	4	6902-1ZR Bearing
C	26-11612	4	Bearing Dust Shield	Apply grease to inner surface
D	26-20880	1	15x32 Bearing Spacer
E	26-17707	1	15x48 Bearing spacer
F	26-12678	1	M6 Grease Fitting		9 Nm
G	26-15532	1	M5x5 Set Screw	Apply Loctite 242 to threads, titghten until flush	0.5 Nm

Frame Size	Flip Chip	Setup Key	Setup Cog	32T	34T	36T
S	High	A	7	116	116	118
M	High	B	7	116	118	118
L	High	A	7	116	118	118
XL	High	A	7	118	118	120
XXL	High	A	7	118	118	120
S	Low	A	7	116	118	118
M	Low	A	7	116	118	118
L	Low	A	7	118	118	120
XL	Low	A	7	118	118	120
XXL	Low	A	7	118	118	120

Alle Details

Sizing and support for the Bullit.

Geometrie
& Größe

Setup
& Support

“When gravity is on your side, the Bullit is an impressive performer, offering great handling on a wide range of trail types and excelling when things get particularly rough, fast and steep…The impressive suspension combines with well suited geometry, deepening how natural and easy it is to ride.”

“Downhill, the Bullit is a true master of fun on challenging and rough trails and fast bike park tracks with huge jumps. Here, the Santa Cruz cranks it up to eleven and still delights its rider with smooth yet nimble handling. ”

“22 kilos for an e-MTB with massive downhill genes and robust equipment - that's a statement! This makes the Santa Cruz Bullit a pleasant exception in the obesity-prone E-Enduro segment.”
