Heckler SL X0 AXS RSV
Build Kit & Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
| Material | |
| Features | |
| Suspension | |
| Fork | |
| Shock | |
| Drivetrain | |
| Rear Derailleur | |
| Shifter | |
| Crankset | |
| Cassette | |
| Chain | |
| Bottom Bracket | |
| Brakes | |
| Brakes | |
| Front Rotor | |
| Rear Rotor | |
| Cockpit | |
| Handlebars | |
| Stem | |
| Grips | |
| Headset | |
| Seatpost | |
| Saddle | |
| Wheels | |
| Front Rim | |
| Front Hub | |
| Front Tire | |
| Rear Rim | |
| Rear Hub | |
| Rear Tire | |
| Valves | |
| Ebike | |
| Battery | |
| Drive Unit | |
| Specs | |
| Headset | |
| Seat Post Diameter | |
| Seat Clamp Diameter | |
| Rear Brake Mount | |
| Bottom Bracket Shell | |
| Max Tire Clearance | |
| Max Chainring Size | |
| Water Bottle Mounts | |
| Shock Length | |
| Shock Stroke | |
| Shock Bushing Sizes | |
| Shock Bushing Sizes | |
| Shock Mounting Hardware Upper | |
| Shock Mounting Hardware Lower | |
| Fork Offset |
Heckler SL X0 AXS RSV
Sizing & Geometry
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
| s | m | l | xl | xxl | |
|---|---|---|---|---|---|
| A. Reach (Hi/Lo) | 435/432.4 | 460/457.4 | 480/477.5 | 500/497.4 | 525/522.5 |
| B. Stack | 614.9/616.8 | 624/625.8 | 633/634.9 | 651/653 | 664.5/666.5 |
| Head tube angle | 64.3/64 | 64.3/64 | 64.3/64 | 64.3/64 | 64.3/64 |
| K. Head Tube Length | 100 | 110 | 120 | 140 | 155 |
| G. Rear Center | 443/443.8 | 443/443.8 | 443/443.8 | 446/446.8 | 450/450.7 |
| F. Front Center | 766.1/765.9 | 795.4/795.3 | 819.7/819.6 | 848.4/848.3 | 879.9/879.8 |
| H. BB Height | 344/340.7 | 344/340.7 | 344/340.7 | 344/340.7 | 344/340.7 |
| Bb drop front | 28.5/31.8 | 28.5/31.8 | 28.5/31.8 | 28.5/31.8 | 28.5/31.8 |
| Bb drop rear | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 | 9.9/13.3 |
| Wheel base | 1209.1/1209.7 | 1238.4/1239.1 | 1262.7/1263.4 | 1294.4/1295.1 | 1329.9/1330.5 |
| M. Top Tube Length | 569.2/579.6 | 602.7/602.9 | 620.6/621.5 | 641.8/642.7 | 669.1/670 |
| L. Seat Tube Length | 380/380 | 405/405 | 430/430 | 460/460 | 500/500 |
| D. Seat Tube Angle | 76.8/76.6 | 77.1/76.9 | 77.5/77.2 | 77.7/77.5 | 77.8/77.5 |
| J. Standover Height | 720.1/716.2 | 733/728.8 | 733.4/729.3 | 731.7/731.6 | 741/738.6 |
Heckler SL X0 AXS RSV
Setup & Support
Whether you’re the proud owner of a Heckler SL or are just digging deep into the details you’ll find it all here.
| label | name | quantity | part_number | blurb |
|---|---|---|---|---|
| A | 29-25028 | 1 | Upper Link | |
| B | 11-12681 | 2 | 6900-2RS Bearing | |
| C | 26-15533 | 2 | M10x3 Washer | Apply grease to inner surface |
| D | 11-12218 | 2 | 6902-2RS Max Bearing | |
| E | 26-11612 | 2 | Bearing Dust Shield | Apply grease to inner surface |
| F | 26-17013 | 1 | 15x40.25 Bearing Spacer |
| label | name | quantity | part_number | blurb | torque |
|---|---|---|---|---|---|
| A | 29-25027 | 1 | Lower Link | ||
| B | 26-11612 | 4 | Bearing Dust Shield | Apply grease to inner surface | |
| C | 11-17708 | 4 | 6902-1ZR Bearing | ||
| D | 26-17707 | 1 | 15x47.7 Bearing Spacer | ||
| E | 26-17013 | 1 | 15x40.25 Bearing Spacer | ||
| F | 26-15532 | 1 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | |
| G | 26-12678 | 1 | M6 Grease Fitting | 9 Nm |
| label | name | quantity | torque | part_number | blurb |
|---|---|---|---|---|---|
| A | 26-25295 | 4 | 1.2 Nm | M4x12 SHCS | Apply Loctite 242 to threads |
| B | 26-25288 | 1 | Fix 430 mount | ||
| C | 26-25283 | 2 | 9 Nm | M6x10 BHCS | Apply Loctite 242 to threads |
| D | 78-24791 | 1 | Fazua Energy 430 Fix | ||
| E | 26-25137 | 1 | Fix 430 mount | ||
| F | 26-18382 | 1 | 0.6 Nm | M4x12 BHC | Apply grease to treads |
| label | name | quantity | part_number | torque | blurb |
|---|---|---|---|---|---|
| A | 26-25196 | 1 | Fazua charge port mount | ||
| B | 72-24768 | 1 | Fazua charge port cap | ||
| C | 72-24771 | 1 | Fazua Charge port, short wire | ||
| D | 26-15938 | 4 | M3x10 FHCS | 0.5 Nm | Apply Loctite 242 to threads |
| E | 26-27112 | 1 | Fazua charge port cover | Used with range extender only |
| label | name | quantity | part_number | blurb | torque |
|---|---|---|---|---|---|
| A | 08-22209 | 1 | Rear axle 173.7 | Apply grease to shaft and threads | |
| B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
| C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20 Nm |
| D | 30-25289 | 1 | Chainstay Protector | ||
| E | 26-15939 | 2 | M3x12 BHCS | Apply grease to treads | 0.5 Nm |
| F | 30-21453 | 1 | Seatstay Protector | ||
| G | 72-27041 | 1 | Fazua speed sensor, XL wire | ||
| H | 26-25140 | 1 | Speed Sensor Cover |
| label | name | quantity | part_number | torque | blurb |
|---|---|---|---|---|---|
| A | 49-21567 | 1 | Lower Link Fender | ||
| B | 26-18382 | 2 | M4x12 BHC | 0.6 Nm | Apply grease to treads |
| C | 26-25294 | 6 | M6x22 BHCS | 14 Nm | Apply Loctite 242 to threads |
| D | 26-18382 | 3 | M4x12 BHC | 0.6 Nm | Apply grease to treads |
| E | 30-25292 | 1 | DU protector | ||
| F | 26-22570 | 1 | M5x12 HHS | 2 Nm | Apply Loctite 242 to threads |
| G | 26-22571 | 1 | OneUp chainguide back plate | ||
| H | 26-22572 | 1 | OneUp chainguide mount | ||
| I | 19-22609 | 1 | OneUp chainguide | ||
| J | 26-22938 | 2 | M4x10 FHCS | 0.65 Nm | Apply Loctite 242 to threads |
| label | name | quantity | part_number | torque | blurb |
|---|---|---|---|---|---|
| A | 26-21360 | 2 | Water Bottle Screw | ||
| B | 26-20122 | 2 | M10x23 Screw | 16 Nm | Apply Loctite 242 to threads only, apply grease to shaft only |
| C | 26-25139 | 1 | DT Plug | ||
| D | 26-25138 | 1 | DT Plug for Range Extender | Apply Loctite 242 to threads | |
| E | 26-15947 | 3 | M6x20 SHCS | 9 Nm | |
| F | 26-11817 | 3 | M6 Washer | ||
| G | 26-15633 | 3 | M6 Tapered Washer | Apply grease to surface | |
| H | 08-22343 | 2 | Pivot Axle M15x90.75 | 20 Nm | Apply Loctite 242 to threads only, apply grease to shaft only |
| I | 26-22461 | 2 | M8x45 Shock Bolt | 20 Nm | Apply Loctite 242 to threads |
| J | 26-19207 | 1 | Hose Grommet | ||
| K | 08-16292 | 1 | Pivot Axle M15x80.5 | 20 Nm | Apply Loctite 242 to threads only, apply grease to shaft only |
| L | 26-21452 | 1 | M8x2 Flip Chip NDS | Apply grease to surface | |
| M | 26-21451 | 1 | M8x2 Flip Chip DS | Apply grease to surface |
| label | name | quantity | part_number | blurb | torque |
|---|---|---|---|---|---|
| A | 72-24784 | 1 | Fazua LED Hub, long wire | Insert foam tube 26-17568 onto long wire | |
| B | 67-19217 | 1 | Head Tube Badge | Clean frame surface, center on headtube | |
| C | 30-25291 | 1 | Downtube Protector | ||
| D | 26-18382 | 1 | M4x12 BHC | Apply grease to treads | 0.6 Nm |
| E | 34-20201 | 3 | 36.4 Seat Collar |
- Santa Cruz Bicycles User Manual
- FAZUA ride60 User Manual NL
- FAZUA ride60 User Manual IT
- FAZUA ride60 User Manual PL
- FAZUA ride60 User Manual PT
- FAZUA ride60 User Manual DE
- FAZUA ride60 User Manual FR
- FAZUA ride60 User Manual US
- FAZUA ride60 User Manual ES
- Heckler SL and Skitch Declaration of Conformity DoC MY25 MYXX
Heckler SL X0 AXS RSV
Get access to the exclusive SCB Owners Club which gives you access to added levels of rider support, treats, opportunities and benefits. Join the club today for free! It takes just five minutes to receive a lifetime of membership perks.
Learn MoreWe build Santa Cruz bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.
Santa Cruz Bicycles offers free replacement pivot bearings to the original owner for as long as they own their bike.
A sneaky ebike that’s lightweight, powerful and has surprising range. All the on-trail traits of a Santa Cruz combined with the FAZUA RIDE 60 drive unit. 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry makes the Heckler SL a natural handling trail bike. Just with the added power of an ebike.
Standout Features
Explore the trail taming highlights that make the Vala so special.

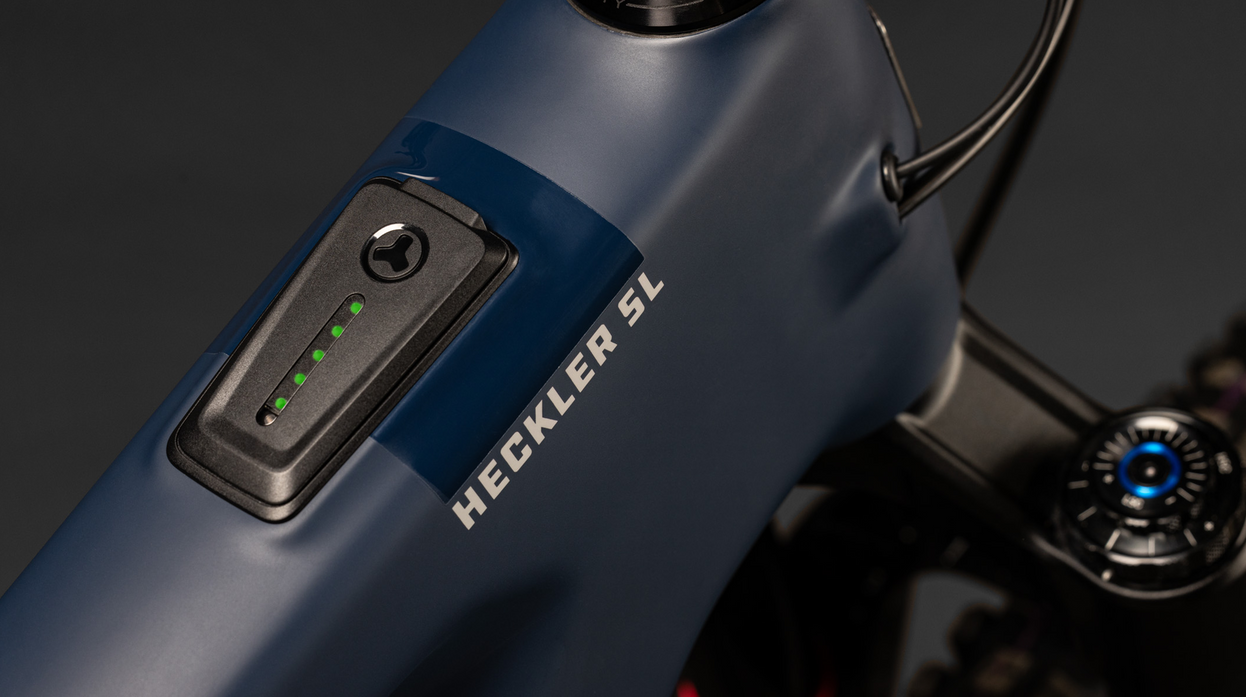

CC Carbon Frame

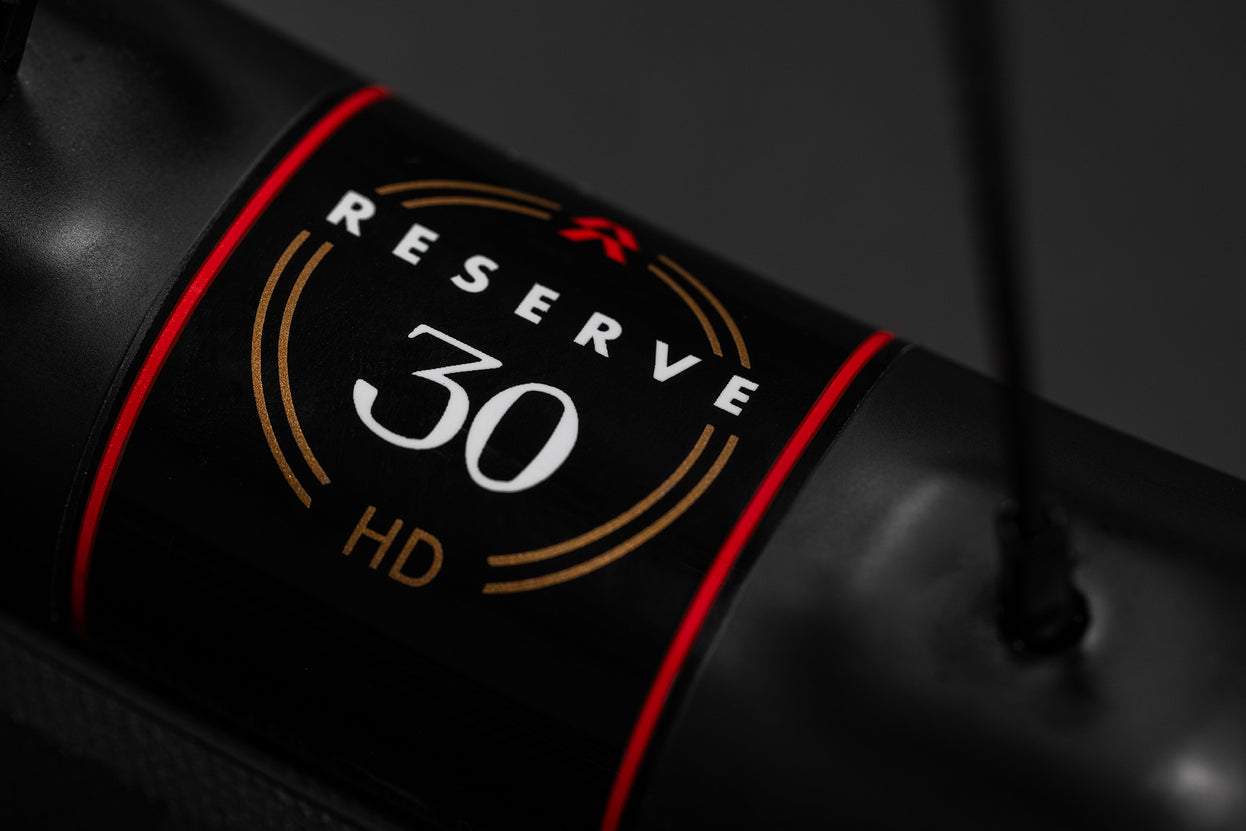

Reserve Carbon Wheels
VPPâ„¢ Suspension
Flip Chip
430 Wh Battery
FAZUA RIDE 60 Drive Unit
Dig Deep
Build kit& Specs
Geometry& Sizing
Setup& Support
Other Builds
Heckler SL R
Base model with same tires and big rotors as all Heckler SLs. Quality parts, no black label throwaway items.
Heckler SL S
Sweet spot for a sweet price. Upgraded wheels, headset, dropper post, suspension with more adjustment.
Heckler SL GX AXS
High-tech entry. Full SRAM GX Eagle electronic Transmission and SRAM Maven brakes.
Heckler SL Stout
Beefier parts for aggressive terrain. Fox 38, Float X2 rear shock, mechanical GX drivetrain, super powerful Maven brakes and Schwalbe Magic Mary radial tires.
