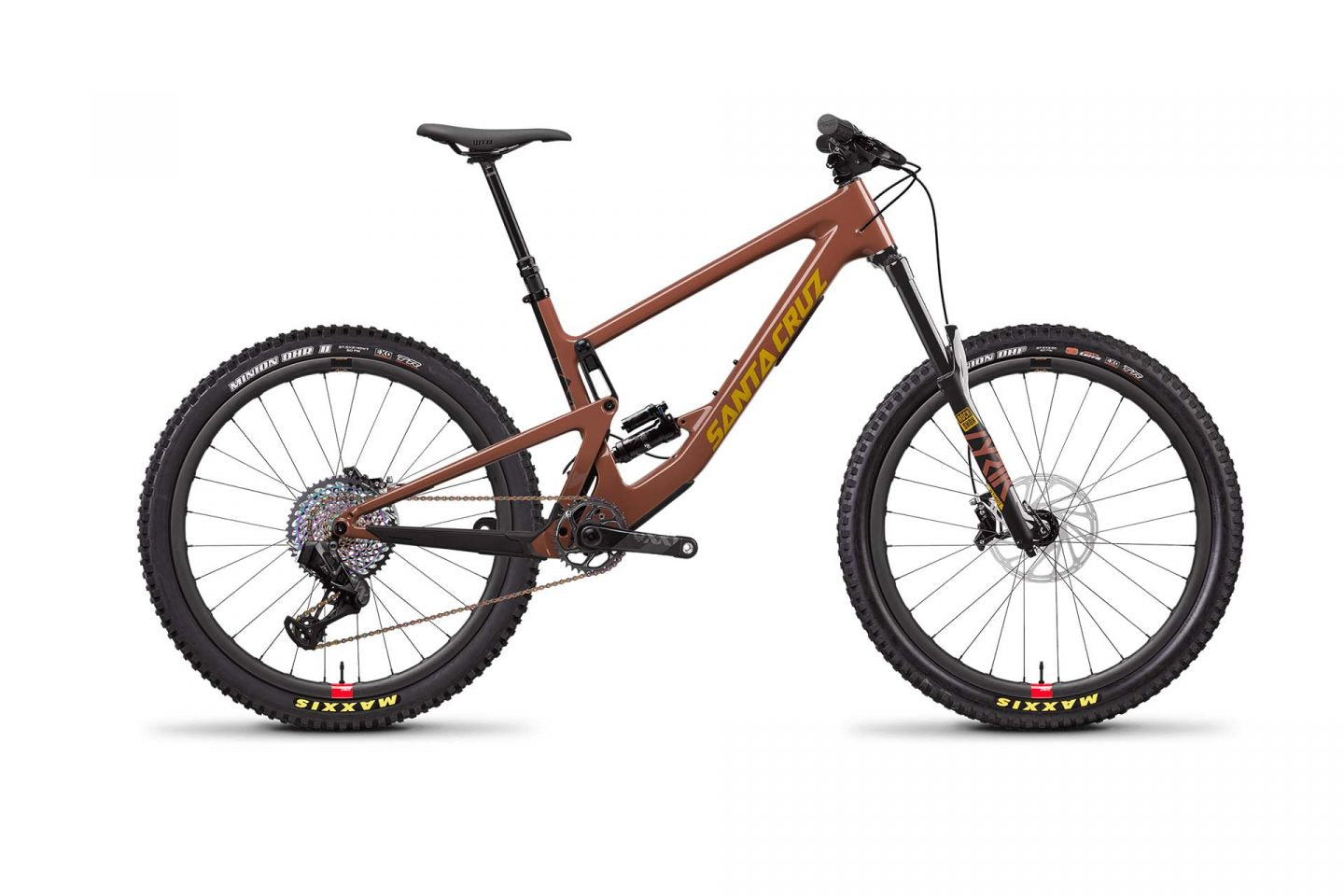

Bronson 3

Model Version	3 Carbon
Production Start	2018
Production End	2021
Suspension/Pivot System	VPP - Virtual Pivot Point
Material	Available in Carbon Fiber & Aluminum
Rear Wheel Travel	150mm
Size Range	XS, S, M, L, XL

Spécificités du modèle

Compatible Forks	150-170mm
Headtube/Headset	Tapered - Integrated Headset. 1-1/8" Upper bearing and 1.5" Lower bearing. S.H.I.S. IS 41/28.6 IS 52/40
Seat Post	31.6mm - Minimum Insertion 100mm
Front Derailleur	N/A - Single Front Chainring Only
BB Shell Width	73mm - Threaded - ISO
Chainline Spec	53mm
Max Brake Rotor Size	203mm
Rear Hub	148x12mm Through Axle
Seatpost Clamp	36.4mm

Rear Shock Eye-to-Eye	210
Stroke	55
Mounting Bushing Width Front	20x8
Mounting Bushing Width Rear	30x8
