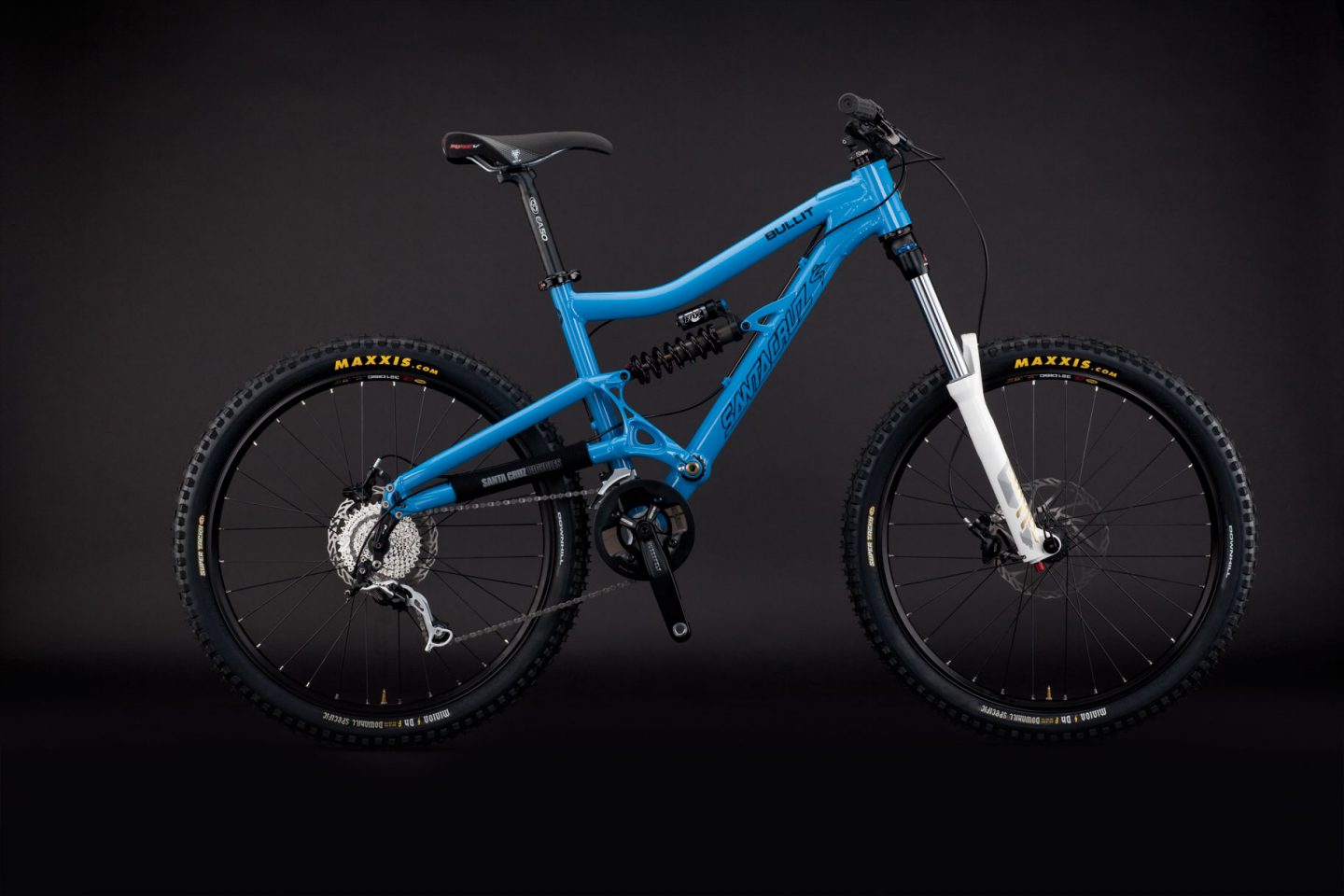

Bullit 2
| Model Version | 2 |
|---|---|
| Production Start | 2007 |
| Production End | 2011 |
| Suspension/Pivot System | Single Pivot |
| Material | Aluminum - 6000 series |
| Rear Wheel Travel | 178 mm |
| Size Range | S,M,L |
Spécificités du modèle
| Compatible Forks | 180 - 200mm |
|---|---|
| Headtube/Headset | 1.5" Straight - External Headset. S.H.I.S. EC49/38.1 EC49/40 |
| Seat Post | 30.9mm - Minimum insertion 100mm |
| Front Derailleur | 34.9mm Top Pull/Top Swing (Low Clamp) |
| BB Shell Width | 73mm - Threaded - ISO |
| Chainline Spec | 50mm |
| Recommended Max Tire Size | 2.5 - may vary by tire and rim model |
| Brakes | Disc Brake - ISO |
| Max Brake Rotor Size | 203mm |
| Rear Hub | *See Component Notes |
| Seatpost Clamp | 34.9mm |
| Component Notes | Bullit 2 available with 135 x 10mm QR style dropouts or 150 x 10mm TA style dropouts. Headset Reducer Kit available for use of 1-1/8" headset. Part Number: 04-05101 |
Spécificités de l'amortisseur
| Rear Shock Eye-to-Eye | 8.5" |
|---|---|
| Stroke | 2.5" |
| Mounting Bushing Width Front | 22 mm |
| Mounting Bushing Width Rear | 22 mm |
| Mounting Bolt Diameter Front | M8 |
| Mounting Bolt Diameter Rear | M8 |

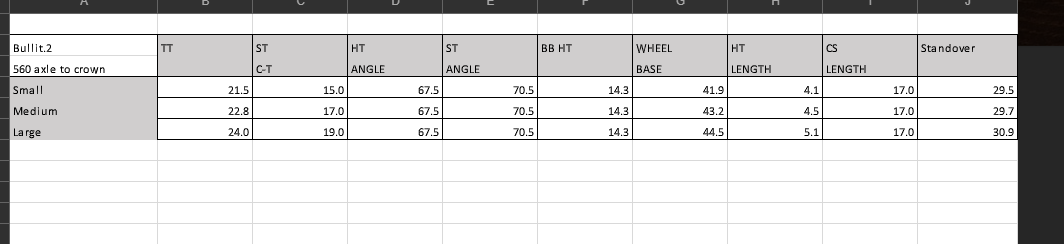

Géométries

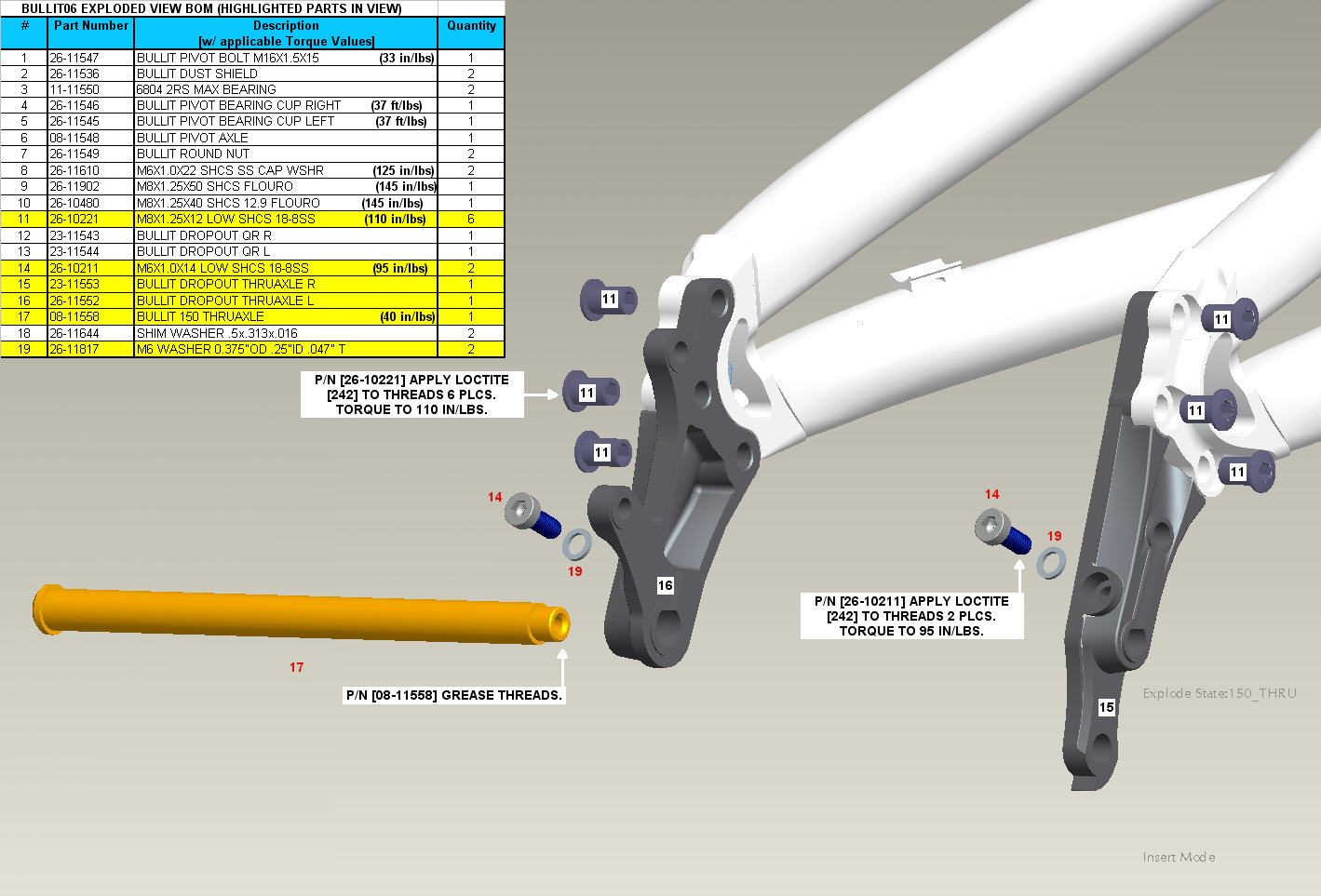

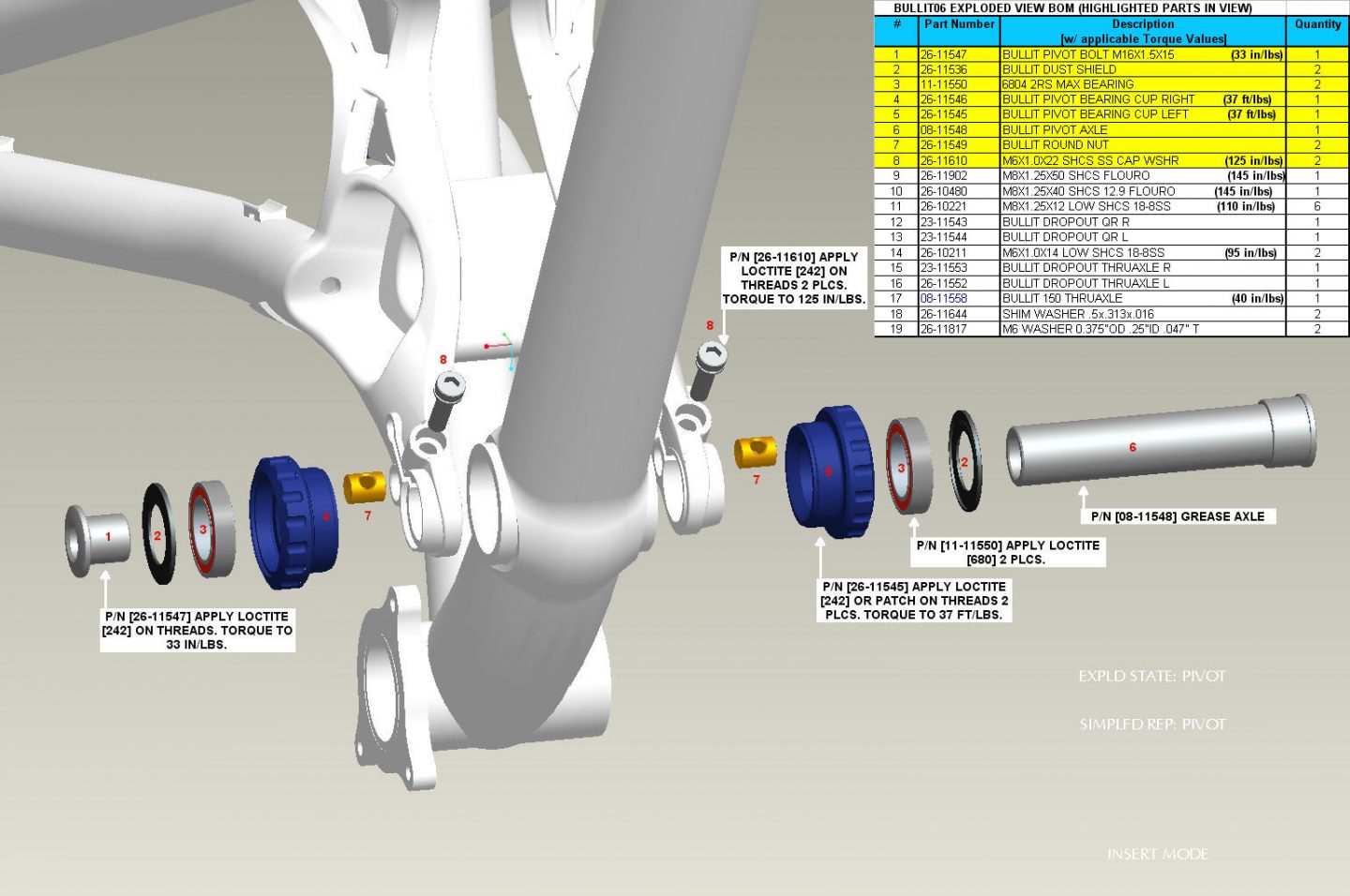

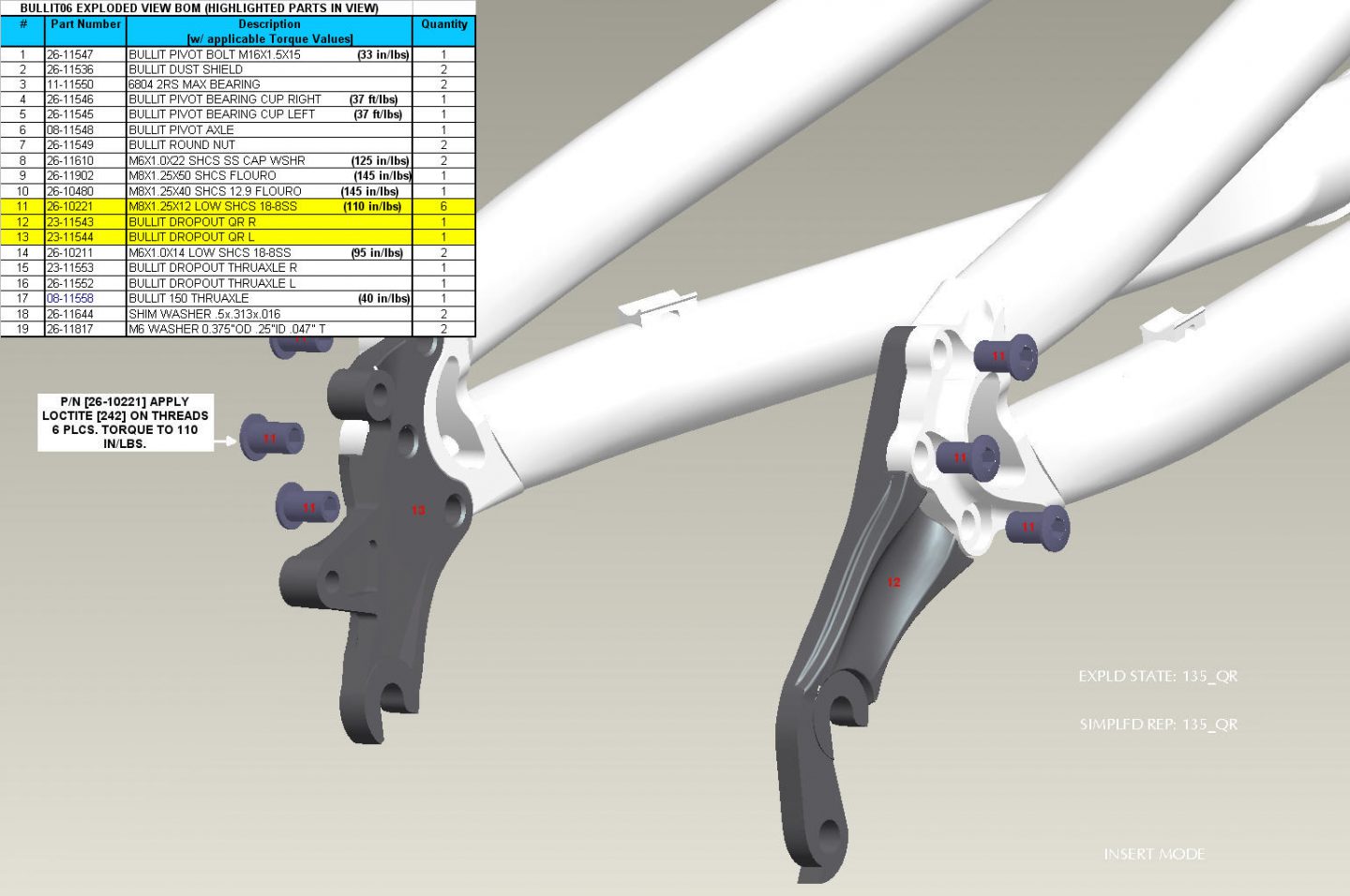

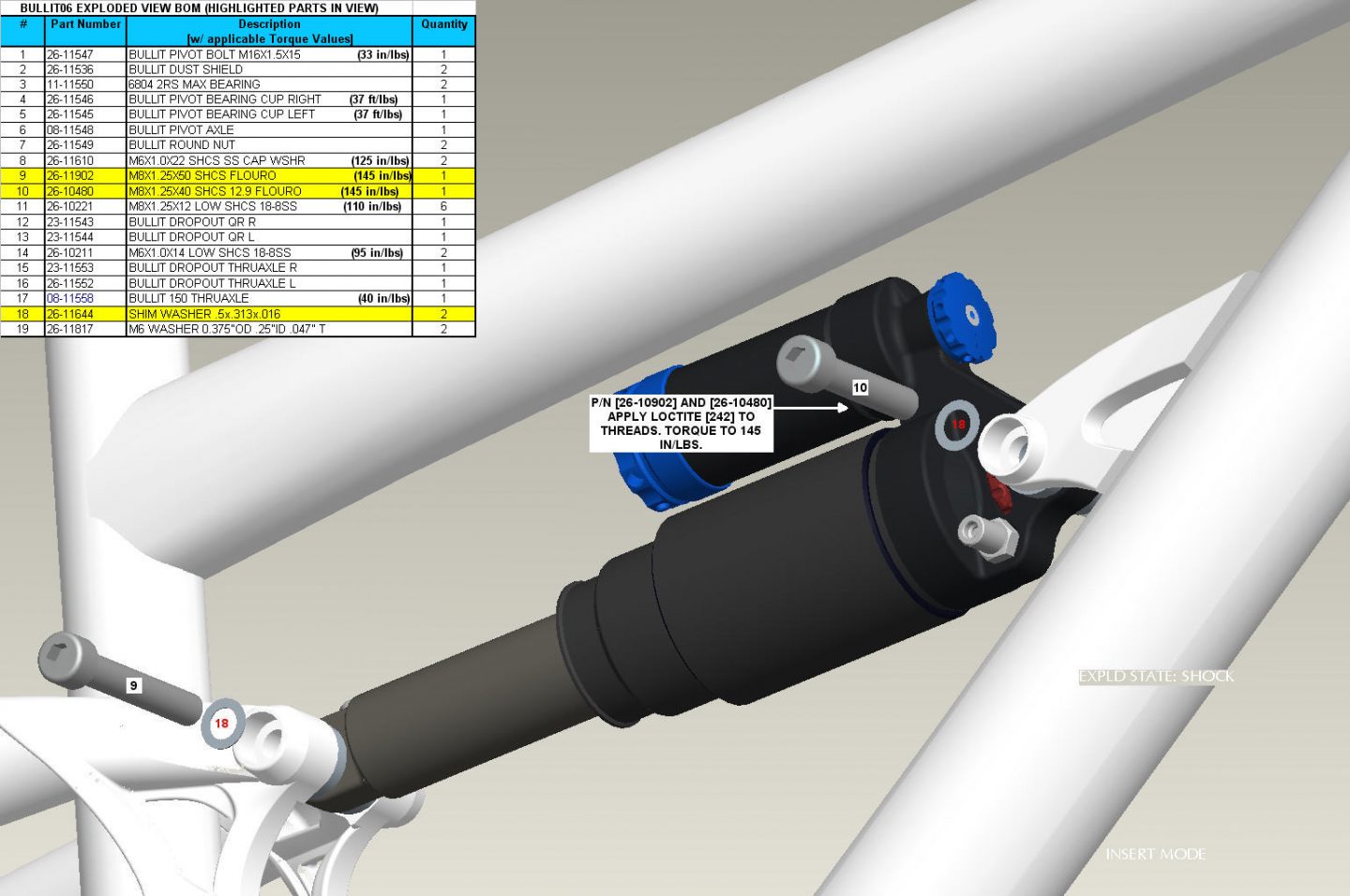

Vues éclatées
Chargement
Chargement
Chargement
Chargement
Entretien
[["Click Here to view Bullet 2 Geometry https://www.santacruzbicycles.com/en-US/file/dataimage96.png"]]
