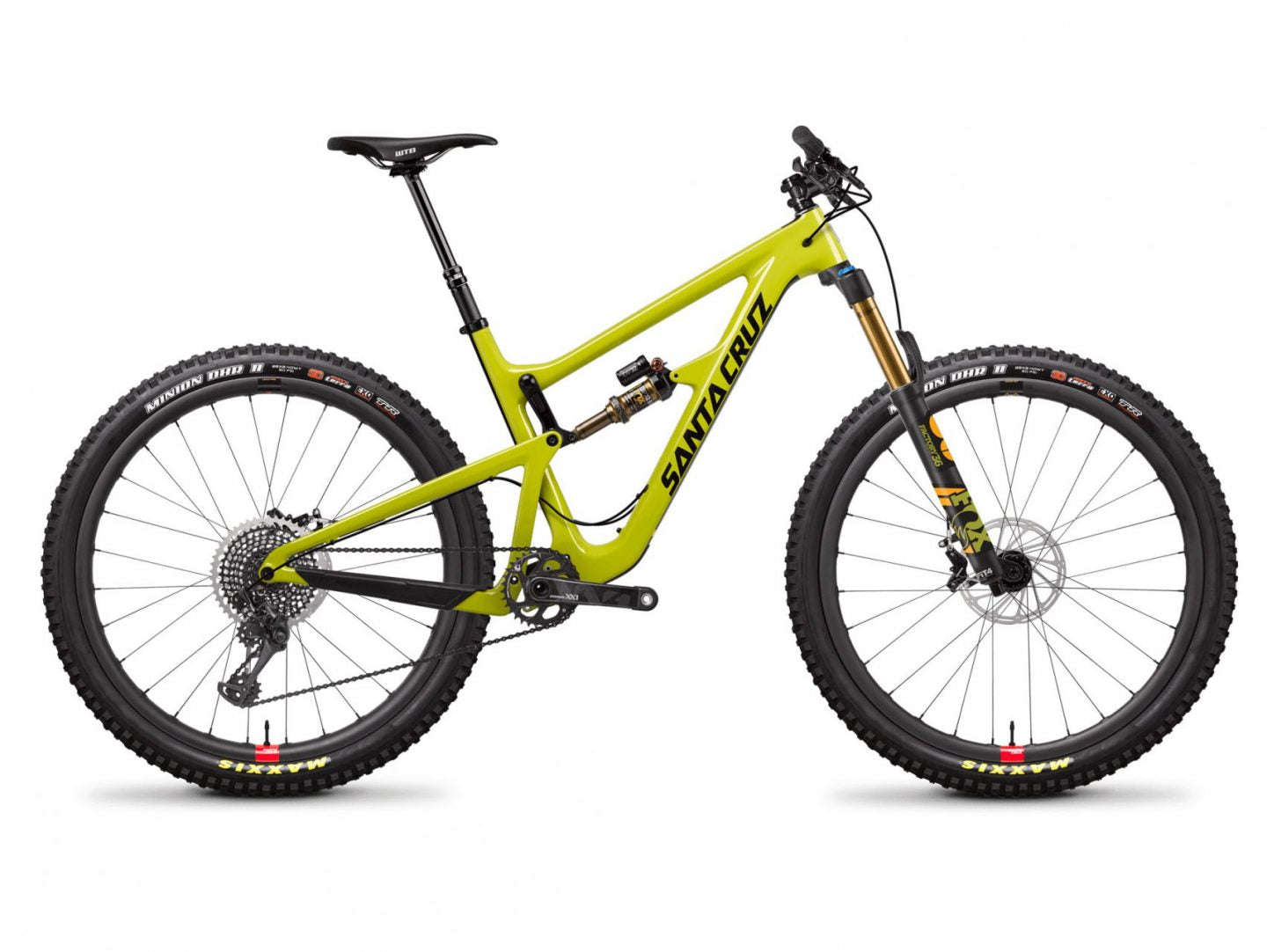

Hightower LT 1

Model Version 1
Production Start 2016
Production End 2019
Suspension/Pivot System VPP - Virtual Pivot Point
Material Carbon Fiber
Rear Wheel Travel 150mm
Size Range S , M , L, XL , XXL

Spécificités du modèle

Compatible Forks 150mm - 170mm
Headtube/Headset Tapered - Integrated Headset. 1-1/8" Upper bearing and 1.5" Lower bearing. S.H.I.S. IS 41/28.6 IS 52/40
Seat Post 31.6mm - Minimum Insertion 100mm
BB Shell Width 73mm - Threaded - ISO
Chainline Spec 50mm
Recommended Max Tire Size 2.4 - may vary by tire and rim model
Brakes Disc Brake - ISO
Max Brake Rotor Size 203mm
Rear Hub 148x12mm Through Axle
Seatpost Clamp 36.4mm

Spécificités de l'amortisseur

Rear Shock Eye-to-Eye 200mm
Stroke 57mm
Mounting Bushing Width Front 22mm
Mounting Bushing Width Rear 22mm
Mounting Bolt Diameter Front 8mm
Mounting Bolt Diameter Rear 8mm

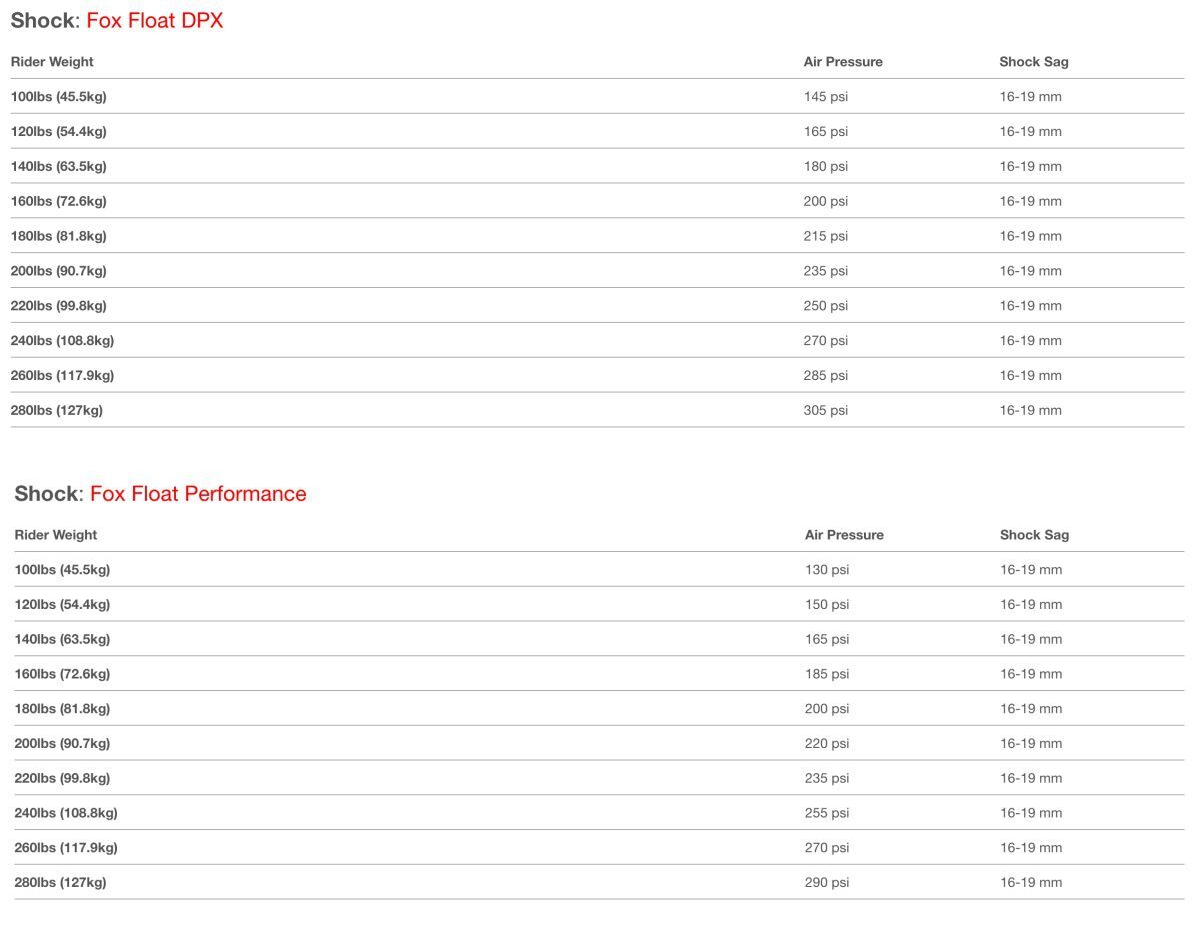

Rear Shock Setup htltfoxfloatdpxsetup.jpg htltfoxfloatperfsetup.jpg

Géométries

Toutes les mesures sont en millimètres ou en degrés.
s m l xl xxl
A. Reach 398mm 423mm 443mm 468mm 498mm
B. Stack 609mm 614mm 618mm 628mm 646mm
Head tube angle 66.4° 66.4° 66.4° 66.4° 66.4°
L. Longueur du tube de selle 390mm 420mm 450mm 490mm 510mm
F. Front Center 706mm 733mm 755mm 784mm 822mm
H. Hauteur du boitier 338mm 338mm 338mm 338mm 338mm
I. BB Drop 32mm 32mm 32mm 32mm 32mm
E. Empattement 1146mm 1173mm 1195mm 1223mm 1261mm
G. Longueur des bases 438mm 438mm 438mm 438mm 438mm
K. Longueur du tube de direction 90mm 95mm 100mm 110mm 130mm
M. Longueur de tube supérieur 577mm 605mm 626mm 653mm 692mm
D. Angle du tube de selle 73.7° 73.7° 73.7° 73.7° 73.7°
J. Standover Height 710mm 710mm 713mm 720mm 727mm
Eye to eye length
Seatpost length
Stem length
Crank length

Réglage des suspensions

Suspension Setup

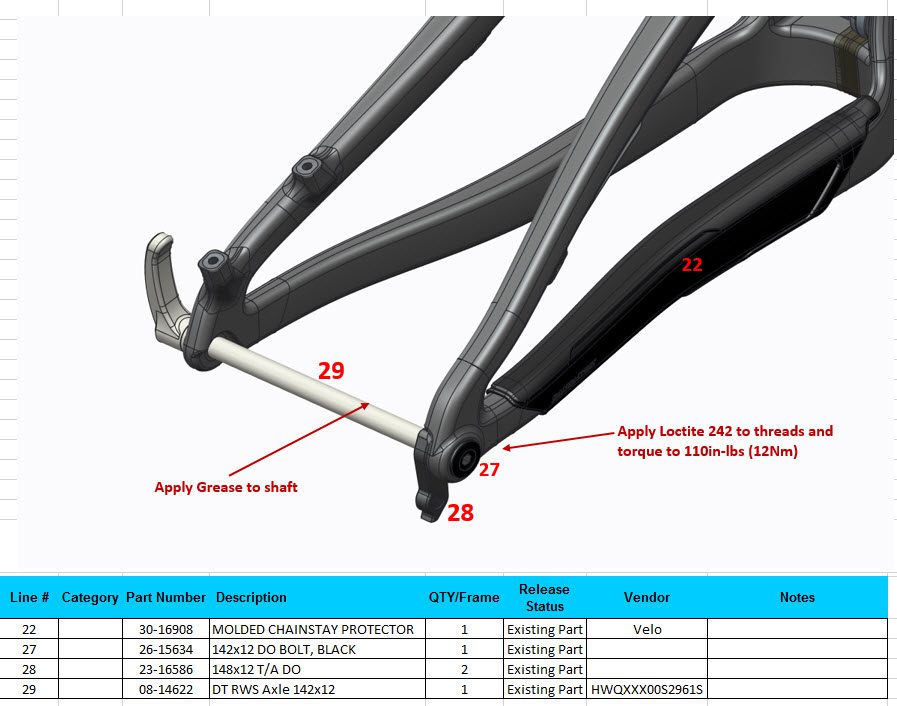

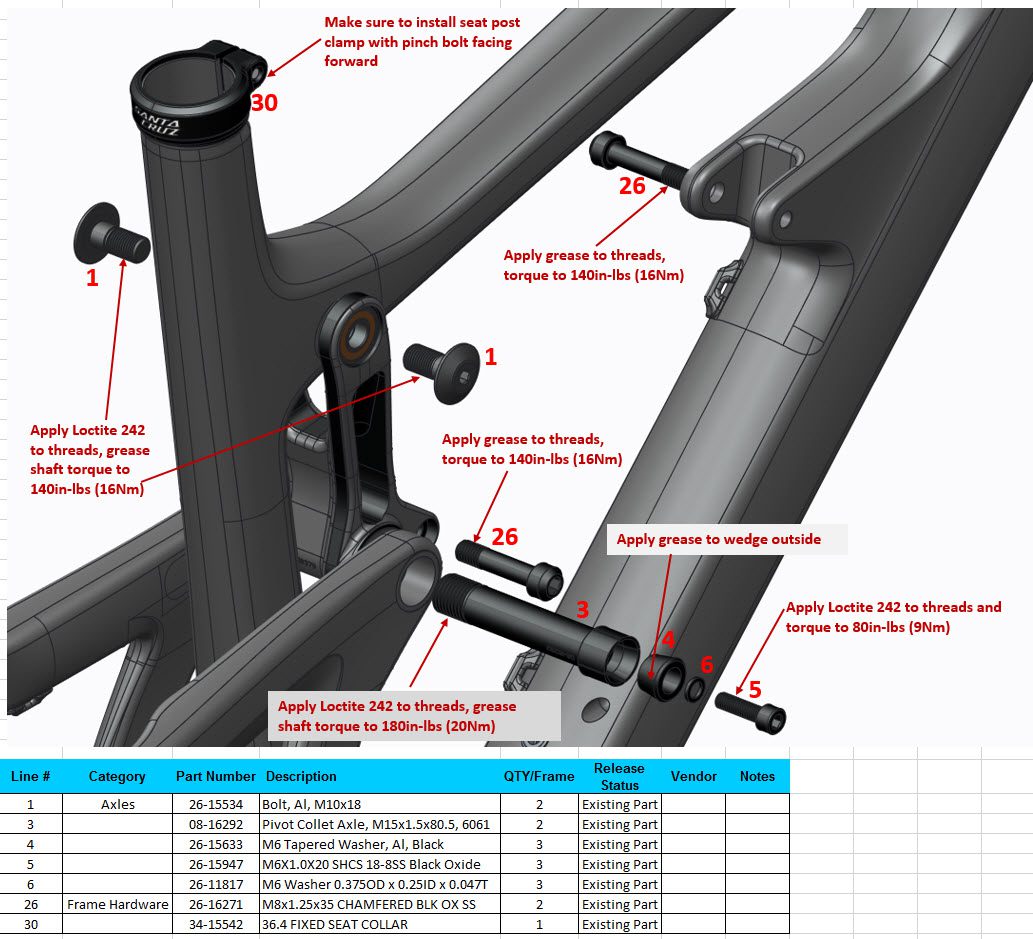

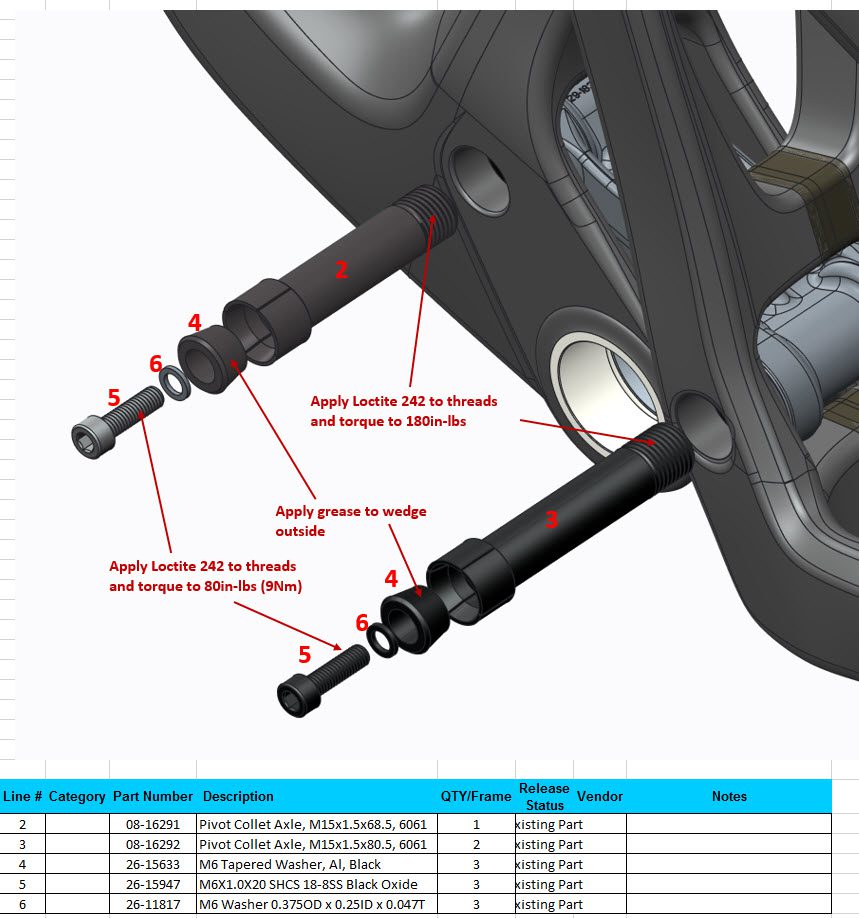

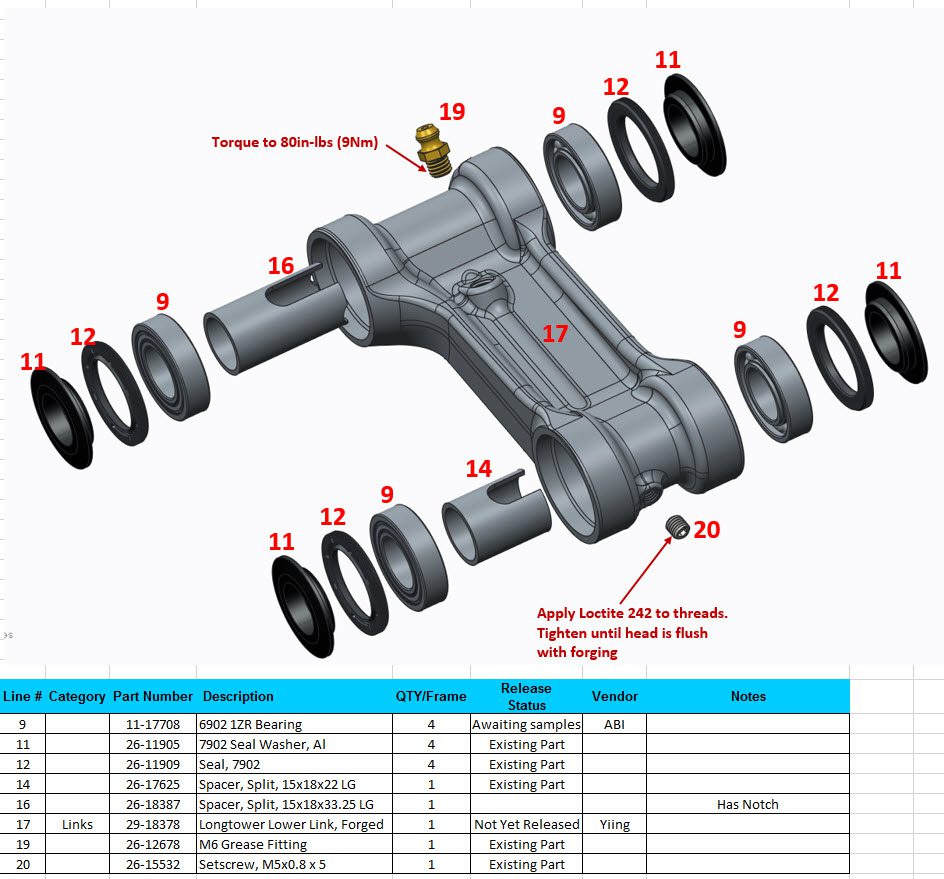

Vues éclatées
