V10 2

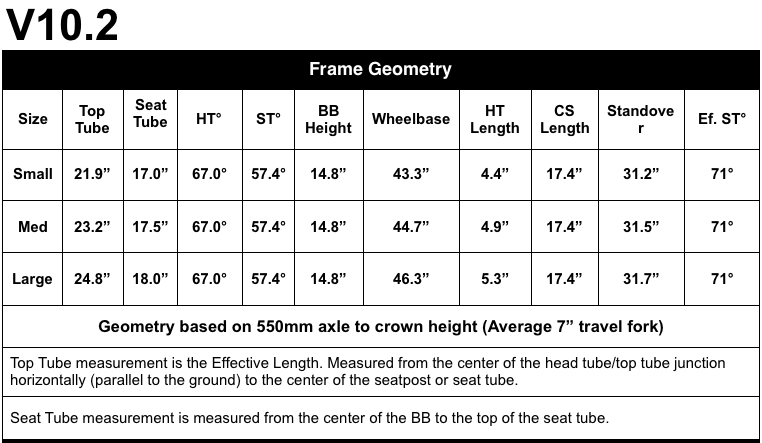

Spécificités du modèle

Compatible Forks	160mm to 200mm total travel 200mm travel max
Headtube/Headset	1-1/8" Straight - External. S.H.I.S EC34/28.6 EC34/30
Seat Post	30.9mm - Minimum insertion 100mm
Front Derailleur	N/A - Single Front Chainring Only
BB Shell Width	73mm - Threaded - ISO
Chainline Spec	55mm
Recommended Max Tire Size	2.7 - may vary by tire and rim model
Brakes	Disc Brake - ISO
Max Brake Rotor Size	203mm
Rear Hub	150mm x 12mm Through-Axle
Seatpost Clamp	34.9mm

Rear Shock Eye-to-Eye	8.75"
Stroke	2.25"
Mounting Bushing Width Front	22mm
Mounting Bushing Width Rear	22mm
Mounting Bolt Diameter Front	8mm
Mounting Bolt Diameter Rear	8mm
Leverage Ratio	3.6 : 1
Rear Shock Setup	Because it is highly likely the original rear shocks on older models are repaired/replaced/upgraded throughout the lifetime of the frame, we offer some very basic tuning guidelines, and recommend using the original rear shock manufacturers manual for more detailed set-up for the specific rear shock you have. Contact the rear shock manufacturer for info if you do not have it.  The key component for set-up with any rear shock here is sag. Once you have that set-up correctly, the rest of the shock settings are fine tuning adjustments (Rebound and Compression damping, etc.) set to rider preference.Recommended sag is 24-26mm at the shock shaft - This equates to approximately 35% of the total rear wheel travel. Less sag = a firmer suspension feel.For Coil rear shocks here is a rough spring size to weight guideline for average coil shocks. This can vary based on rear shock model and manufacturer:100-130lbs - 400#140-160lbs - 450#160-170lbs - 500#180-200lbs - 550#210-230lbs - 600#

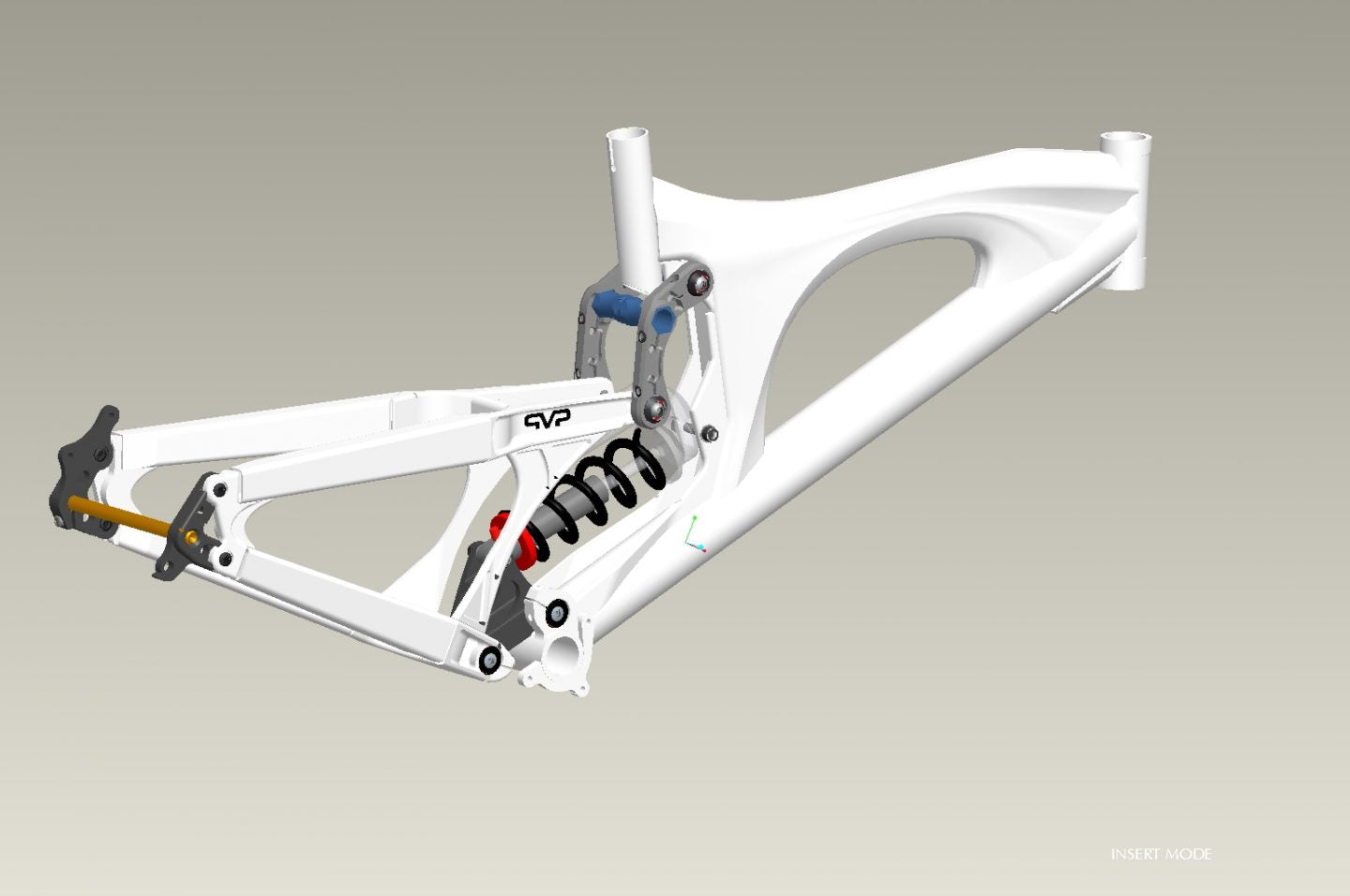

Fastener	Description	Prep	Torque	Download

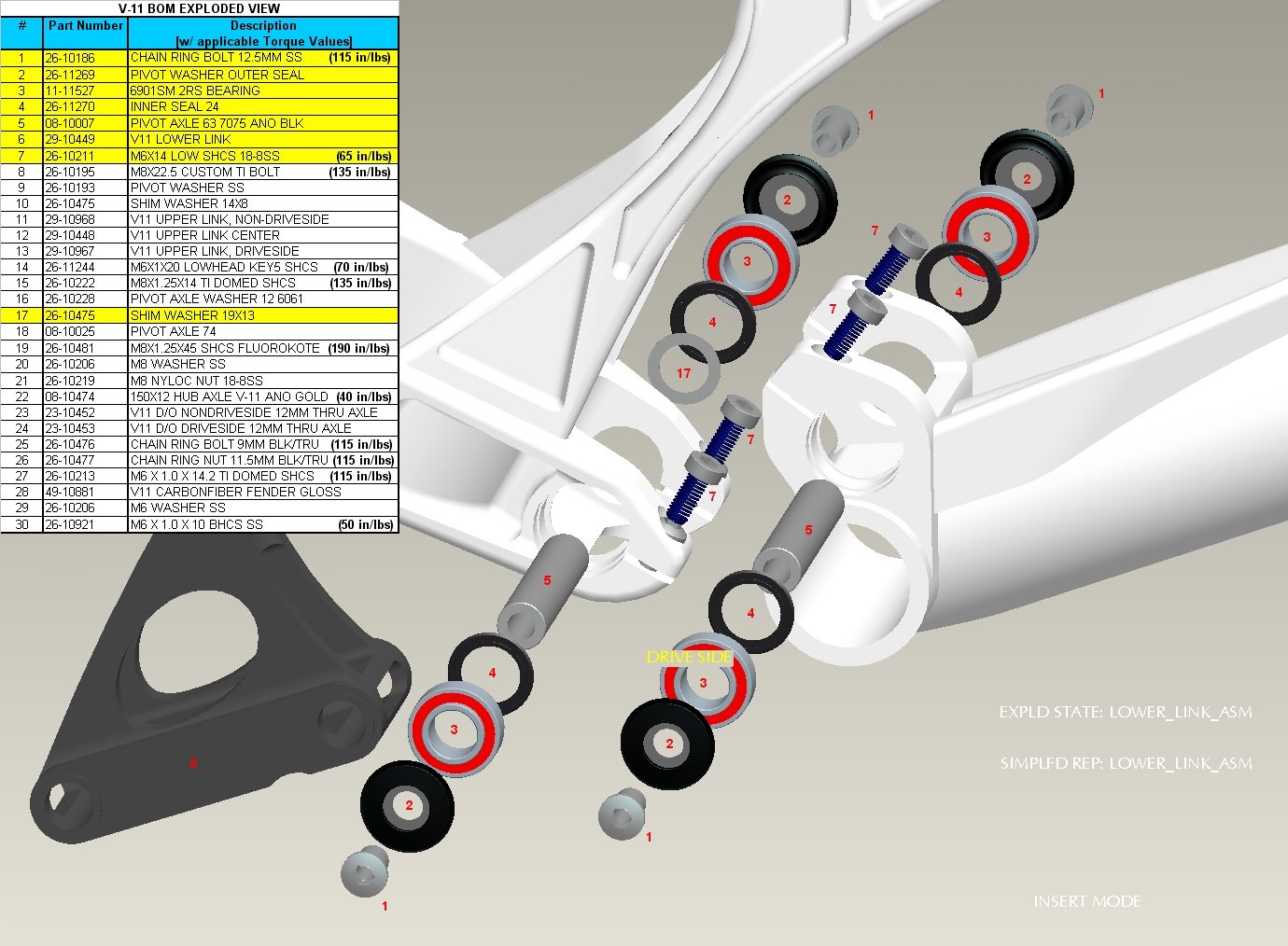

Lower Pivot Bolts	Lower Main Pivot Chainring Bolts (4)	Loctite 242	115 inch lbs	-
Lower Bearing Pinch Bolts	M6 x 14 low socket head cap screws (4)	Loctite 242	65 inch lbs	-

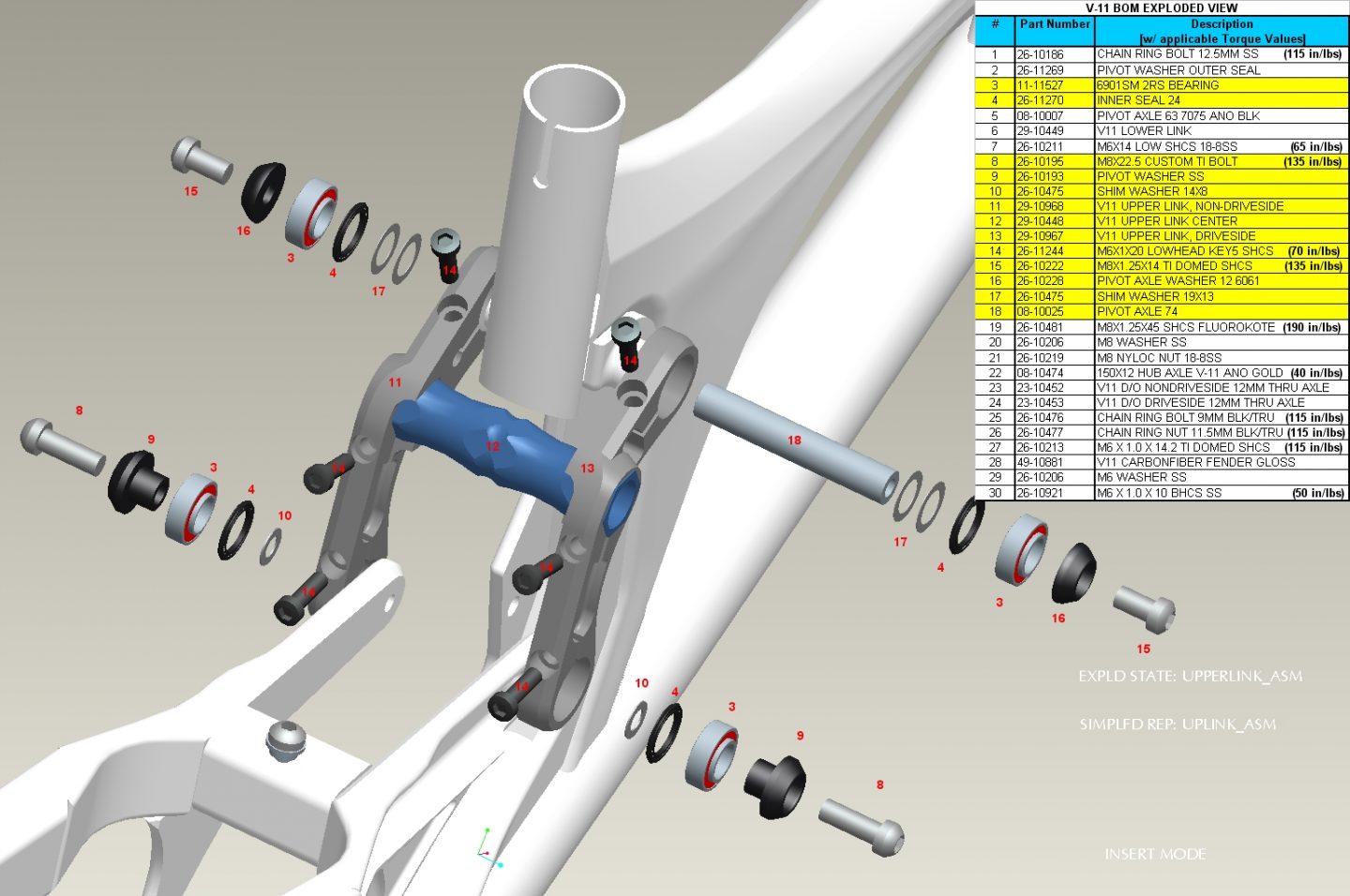

Upper Pivot At Frame	M8 x 1.25 x 14 domed socket head cap screws (2)	Loctite 242	135 inch lbs	-
Upper Pivot At Swingarm	M8 x 1.25 x 22.5 domed socket head cap screws (2)	Loctite 242	135 inch lbs	-
Upper Bearing Pinch Bolts	M6 x 1 x 20 low socket head cap screws (6)	Loctite 242	70 inch lbs	-

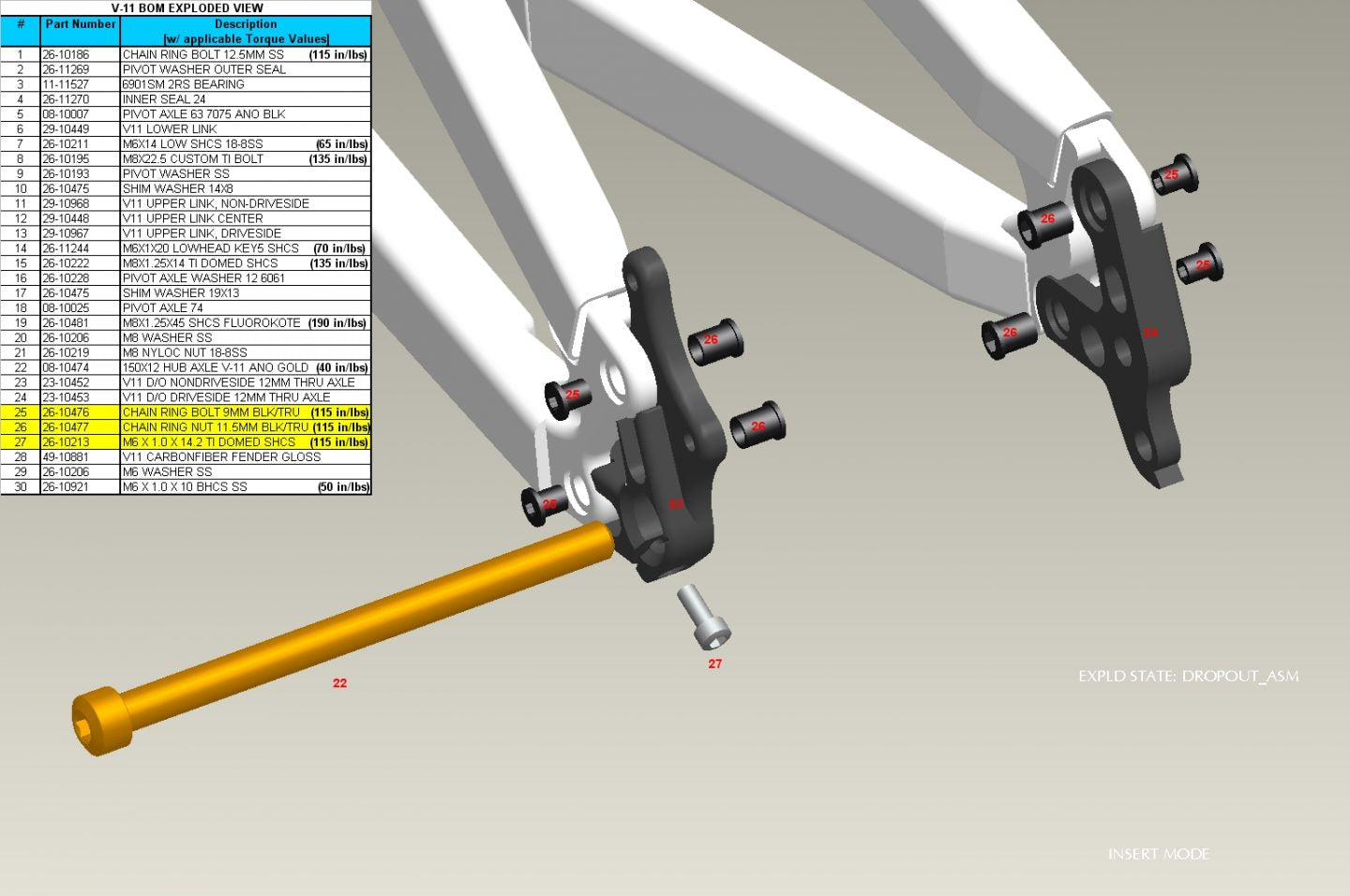

Dropout to Frame	Chainring Bolt and Nut (4pr)	Loctite 242	115 inch lbs	-
Rear Hub T/A	150 x 12mm Through Axle (1)	Grease	40 inch lbs	-
Thru-Axle Pinch Bolt	M6 x 1 x 14.2 domed socket head cap screw (1)	Grease	115 inch lbs	-
Shock Mounting Bolts	M8 x 1.25 x 45 socket head cap screws (2)	Loctite 242	190 inch lbs	-

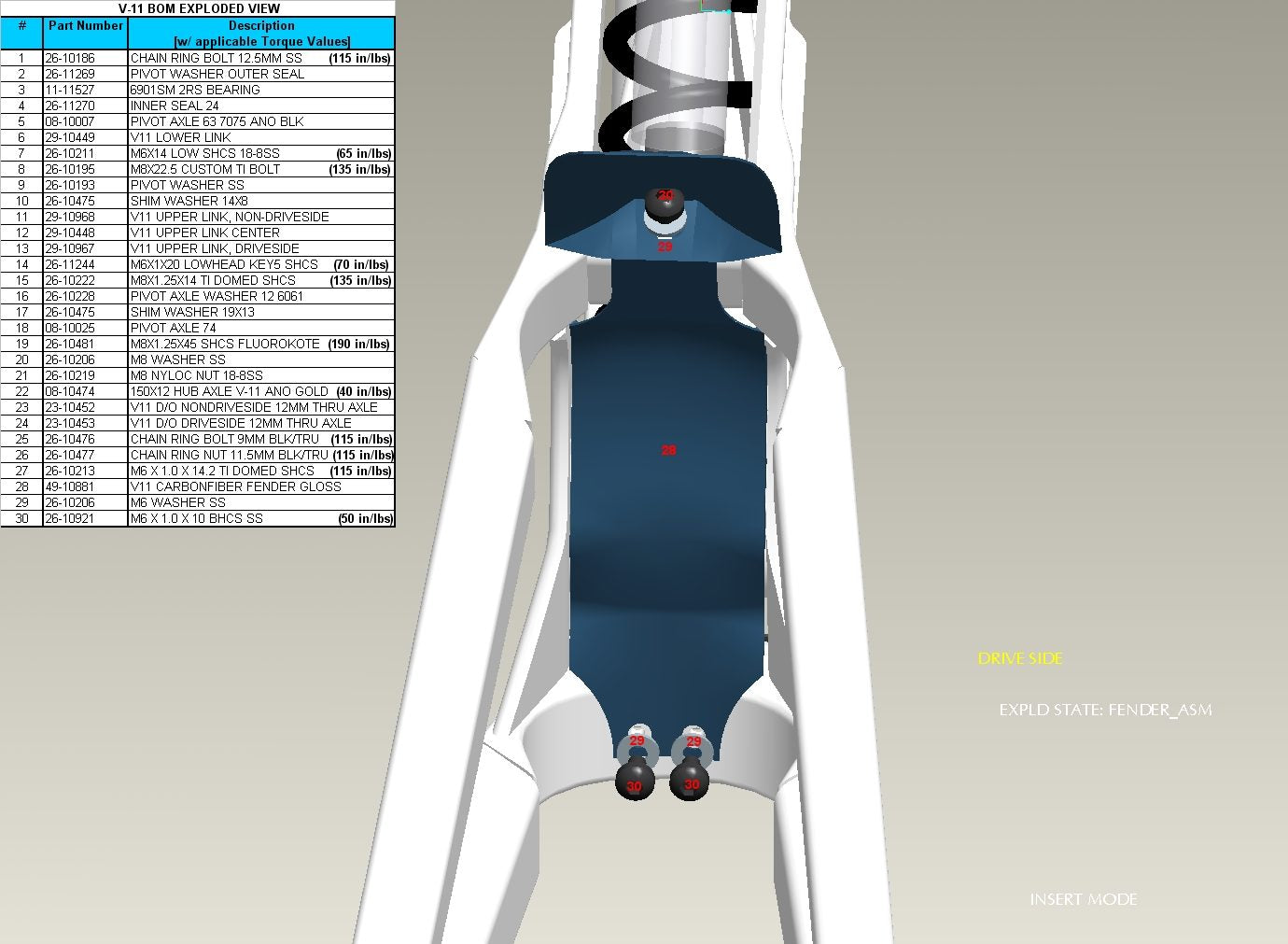

Fender Mount	M6 x 1 x 10 button head cap screw (3)	Loctite 242	50 inch lbs	-
