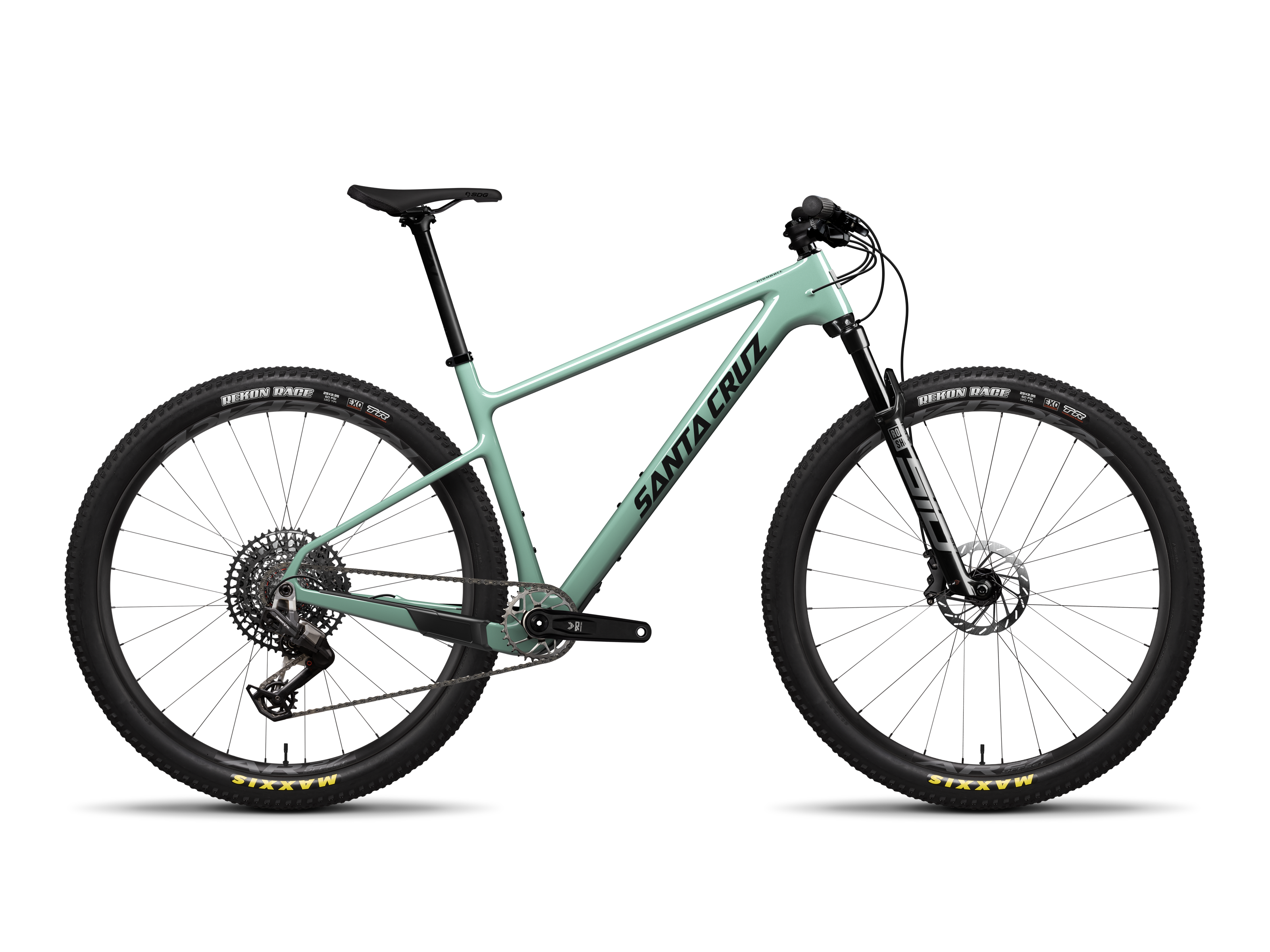

Highball 3 MY26

Model Specs

Front Derailleur	No compatibility
Headset	Integrated (IS41/52)
Seat Post Diameter	27.2mm
Seat Clamp Diameter	31.8mm
Fork Compatibility	100-120mm
Bottom Bracket Shell	73mm Threaded
Max Tire Clearance	2.4"
Max Chainring Size	38t
Water Bottle Mounts	3
Rear Brake Mount	160 PM

Build Kits

Select a Build Kit

90

• 90

Frame	Carbon C 29" Hardtail
Shock	N/A
Fork	RockShox Sid SL Select+, 100mm, w/ Remote
Rear Derailleur	SRAM 90 Eagle T-Type, 12spd
Shifter	SRAM 90 Eagle T-Type, 12spd
Cassette	SRAM XS 1275 Eagle T-Type, 10-52t
Chain	SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide	N/A
Bottom Bracket	SRAM DUB 73mm MTB Wide BB
Headset	Cane Creek 50 IS Integrated Headset
Rear Tire	Maxxis Rekon Race 29"x2.35", EXO
Front Tire	Maxxis Rekon Race 29"x2.35", EXO
Front Hub	DT Swiss 370, 15x110, 6-Bolt, 28h
Front Rim	RaceFace AR Offset 27 29"
Rear Hub	DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Rim	RaceFace AR Offset 27 29"
Front Rotor	SRAM HS2 160mm
Rear Rotor	SRAM HS2 160mm
Front Brake	SRAM DB8
Crankset	SRAM 90 Eagle DUB T-Type Crankset, 34t
Handlebars	SRAM Atmos Flat Bar, 31.8x760
Stem	SRAM Atmos Stem, 60mm
Saddle	SDG Bel-Air V3 Lux-Alloy
Seatpost	RaceFace Next, 27.2, 400mm
Grips	SRAM Grips

Geometry

All units are in millimeters or degrees.

	s	m	l	xl
A. Reach	415	440	460	490
B. Stack	596	605	614	633
Head tube angle	67°	67°	67°	67°
L. Seat Tube Length	405	430	470	530
F. Front Center	693	719	743	781
H. BB Height	313	313	313	313
I. BB Drop	60	60	60	60
E. Wheelbase	1119	1145	1169	1207
G. Rear Center	426	426	426	426
K. Head Tube Length	95	105	115	135
M. Top Tube Length	595	619	642	677
D. Seat Tube Angle	73.5°	73.5°	73.5°	73.5°
J. Standover Height	707	704	739	755

Size Guide

IN / CM Small

152cm 5'0" - 165cm 5'5" Reach: 415mm

Medium

165cm 5'5" - 177cm 5'10" Reach: 440mm

Large

177cm 5'10" - 185cm 6'1" Reach: 460mm

X-Large

185cm 6'1" - 198cm 6'6" Reach: 490mm

Transmission Setup

Frame Size	Setup Key	Setup Cog	30T	32T	34T	36T
Small	A	7	114	116	116	118
Medium	A	7	114	116	116	118
Large	A	7	114	116	116	118
XLarge	A	7	114	116	116	118

Exploded Diagrams

Bottle Cage Bolts, and Downtube Protector

label	part_number	quantity	name	blurb	torque
A	67-19217	1	Head Tube Badge	Clean frame surface, center on headtube
B	26-20124	6	M5x16 Water Bottle screw	Apply grease to threads
C	30-18552	1	Downtube Protector
D	26-20104	1	DT Plug
E	26-15939	1	M3x12 BHCS	Apply grease to treads	0.5 Nm
F	34-20202	1	31.8 Seat Collar

Zoom in on image

Zoom out on image

Rear Axle, Deraillaur Hanger, and Chainstay Protector

label	part_number	quantity	name	blurb	torque
A	08-22209	1	Rear axle 12x173.7	Apply grease to shaft and threads
B	23-23491	1	SCB UDH	Interchangeable with Sram UDH
C	26-23492	1	SCB UDH screw	Reverse thread	20 Nm
D	30-18551	1	Chainstay Protector
E	26-15939	1	M3x12 BHCS	Apply grease to treads	0.5 Nm

Zoom in on image

Zoom out on image

Files

If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.

• Santa Cruz Bicycles User Manual
