Hightower 2 AL
| Model Version | 2 Aluminum |
|---|---|
| Production Start | 2019 |
| Production End | 2021 |
| Suspension/Pivot System | VPP - Virtual Pivot Point |
| Material | Aluminum - 6000 series |
| Rear Wheel Travel | MY20 140mm, MY21 145mm |
| Size Range | S , M , L, XL , XXL |
Model Specs
| Compatible Forks | 150-160mm |
|---|---|
| Headtube/Headset | Tapered - Integrated Headset. 1-1/8" Upper bearing and 1.5" Lower bearing. S.H.I.S. IS 41/28.6 IS 52/40 |
| Seat Post | 31.6mm - Minimum Insertion 100mm |
| BB Shell Width | 73mm - Threaded - ISO |
| Recommended Max Tire Size | 2.4 - may vary by tire and rim model |
| Max Brake Rotor Size | 203mm |
| Rear Hub | 148x12mm Through Axle |
| Seatpost Clamp | 36.4mm |
Shock Specs
| Rear Shock Eye-to-Eye | 210 |
|---|---|
| Stroke | MY20 52.5mm, MY21 55mm |
| Mounting Bushing Width Front | 20x8 |
| Mounting Bushing Width Rear | 30x8 |

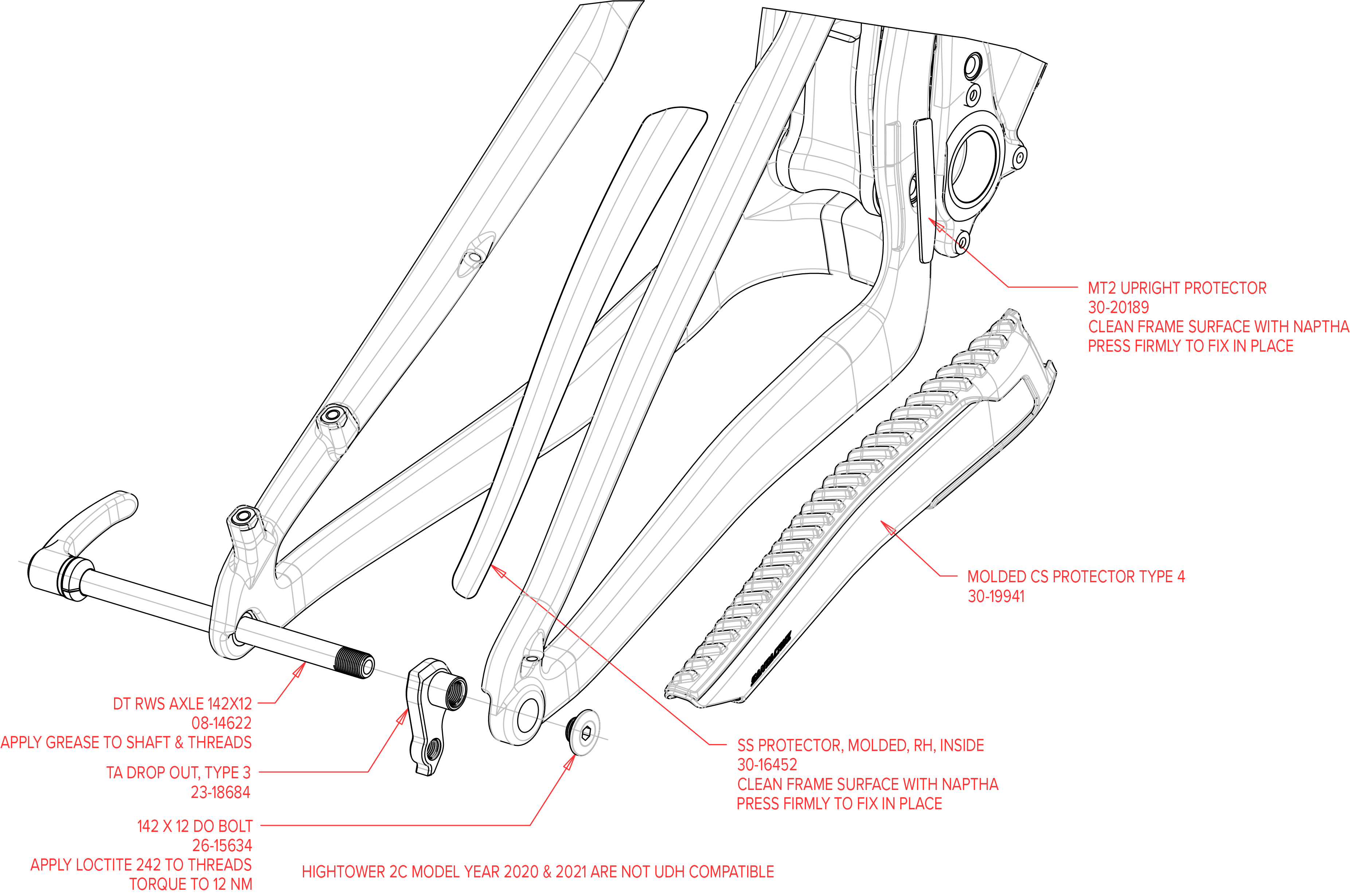

Exploded Diagrams
Loading
Loading
Loading
Loading
Loading
Loading
Loading
Files
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
