Bullit X0 AXS RSV
Build Kit & Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
| Material | |
| Features | |
| Frame | |
| Travel | |
| Weight | |
| Wheel Size | |
| Suspension | |
| Fork | |
| Shock | |
| Remote | |
| Drivetrain | |
| Bottom Bracket | |
| Cassette | |
| Chain | |
| Chainguide | |
| Crank Length | |
| Crankset | |
| Front Derailleur | |
| Left Shifter | |
| Rear Derailleur | |
| Right Shifter | |
| Shifters | |
| Brakes | |
| Brakes | |
| Front Brakes | |
| Front Rotor | |
| Rear Brakes | |
| Rear Rotor | |
| Rotors | |
| Cockpit | |
| Bar Width | |
| Dropper Length | |
| Grips / Bar Tape | |
| Handlebars | |
| Headset | |
| Saddle | |
| Seatpost | |
| Stem | |
| Stem Length | |
| Wheels | |
| Front Rim | |
| Front Hub | |
| Front Tire | |
| Rear Rim | |
| Rear Hub | |
| Rear Tire | |
| Valves | |
| Rims | |
| Ebike | |
| Battery | |
| Drive Unit | |
| Battery Charger | |
| Specs | |
| Bottom Bracket Shell | |
| Rear Brake Mount | |
| Chainguide_standard | |
| Chainline | |
| Derailleur Hanger | |
| Shock Length | |
| Fork Axle to Crown | |
| Fork Compatibility | |
| Fork Offset | |
| Front Derailleur Mount | |
| Headset | |
| Max Chainring Size | |
| Max Rotor Size | |
| Max Tire Clearance | |
| Rear Spacing | |
| Rear Travel | |
| Recommended Sag | |
| Sealant | |
| Seat Clamp Diameter | |
| Seat Post Diameter | |
| Shock Bushing Size Front | |
| Shock Bushing Size Rear | |
| Shock Mounting Hardware Lower | |
| Shock Mounting Hardware Upper | |
| Shock Stroke | |
| Suspension System | |
| UDH Compatible | |
| Water Bottle Mounts |
Bullit X0 AXS RSV
Sizing & Geometry
Find your Size
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Small
Medium
Large
X-Large
XX-Large
154cm
5'1"
-
165cm
5'5"
Reach: 435mm
165cm
5'5"
-
175cm
5'9"
Reach: 460mm
175cm
5'9"
-
185cm
6'1"
Reach: 480mm
185cm
6'1"
-
193cm
6'4"
Reach: 500mm
193cm
6'4"
-
200cm
6'7"
Reach: 525mm
All units are in millimeters or degrees.
| s | m | l | xl | xxl | |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 435/432 | 460/457 | 480/477 | 500/497 | 525/522 |
| Stack (Hi/Lo) | 622/625 | 631/635 | 640/643 | 654/656 | 670/674 |
| Head Tube Angle (Hi/Lo) | 63.6/63.3 | 63.6/63.3 | 63.6/63.3 | 63.6/63.3 | 63.6/63.3 |
| Head Tube Length | 100 | 110 | 120 | 135 | 155 |
| Rear Center | 440 | 443 | 446 | 449 | 452 |
| Front Center | 780 | 809 | 834 | 860 | 894 |
| BB Height (Hi/Lo) | 346/342 | 346/342 | 346/342 | 346/342 | 346/342 |
| BB Drop Front (Hi/Lo) | 27/31 | 27/31 | 27/31 | 27/31 | 27/31 |
| BB Drop Rear (Hi/Lo) | 9/13 | 9/13 | 9/13 | 9/13 | 9/13 |
| Wheelbase | 1220 | 1252 | 1280 | 1309 | 1346 |
| Top Tube Length | 571 | 596 | 617 | 640 | 670 |
| Seat Tube Length | 380 | 400 | 420 | 460 | 500 |
| Seat Tube Angle (Hi/Lo) | 78.6/78.3 | 78.7/78.4 | 78.7/78.4 | 78.7/78.4 | 78.6/78.3 |
| Standover Height (Hi/Lo) | 745/740 | 739/735 | 738/733 | 738/733 | 735/730 |
Bullit X0 AXS RSV
Setup & Support
Whether you’re the proud owner of a Bullit or are just digging deep into the details you’ll find it all here.
Fox Float X2 Factory
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|---|
| 100 | 45 | 130 | 28-30%, | 14/6 | 6/3 |
| 120 | 54 | 150 | 28-30%, | 13/5 | 6/3 |
| 140 | 64 | 170 | 28-30%, | 13/4 | 6/3 |
| 160 | 73 | 190 | 28-30%, | 12/3 | 6/3 |
| 180 | 82 | 210 | 28-30%, | 11/3 | 6/3 |
| 200 | 91 | 230 | 28-30%, | 11/2 | 6/3 |
| 220 | 100 | 250 | 28-30%, | 9/2 | 6/3 |
| 240 | 109 | 270 | 28-30%, | 7/1 | 6/3 |
Fox 38 170 Factory
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|
| 100 | 45 | 68 | 12/8 | 5/4 |
| 120 | 54 | 76 | 10/8 | 5/4 |
| 140 | 64 | 85 | 9/8 | 5/4 |
| 160 | 73 | 93 | 7/7 | 5/4 |
| 180 | 82 | 102 | 7/6 | 5/4 |
| 200 | 91 | 111 | 6/4 | 5/4 |
| 220 | 100 | 119 | 4/3 | 5/4 |
| 240 | 109 | 128 | 3/1 | 5/4 |
Motor, Display, Downtube Protector, Shuttle Guard, and Seat Collar
| label | name | quantity | part_number | blurb | torque |
|---|---|---|---|---|---|
| A | Head Tube Badge | 1 | 20-27756 | Clean frame surface, center on headtube | |
| B | M5x10 BHCS | 4 | 26-27915 | Apply Loctite 242 to threads | 9 Nm |
| C | Shuttle guard | 1 | 30-27825 | Line up with battery screws | |
| D | Bosch DU Performance CX | 1 | 72-25239 | Bosch part number EB11.100.00E | |
| E | M4x16 BHCS | 3 | 26-23102 | Apply grease to threads | 0.65 Nm |
| F | DU Protector | 1 | 30-27495 | ||
| G | M6x10 BHCS | 2 | 26-21224 | Apply loctite 242 to threads | 3 Nm |
| H | Bosch DU mount nut | 2 | 26-27862 | Bosch part number EB11.200.03C | |
| I | M8x7 Flip Chip | 1 | 26-27480 | Apply grease to outside surface | |
| J | 36.4 Seat Collar | 1 | 34-20201 | ||
| K | M4x26 Bosch Screw | 1 | 26-28150 | ||
| L | Bosch TT System Controller | 1 | 72-25240 | Bosch part number EB13.100.000 | |
| M | Bosch TT adapter | 1 | 26-27857 | Bosch part number EB13.200.0AE |
Loading
Linkage Hardware
| label | name | quantity | torque | part_number | blurb |
|---|---|---|---|---|---|
| A | M5x5 Set Screw | 2 | 0.5 Nm | 26-15532 | Apply Loctite 242 to threads, titghten until flush |
| B | Water Bottle Screw | 2 | 26-21360 | ||
| C | Pivot Axle M15x91 | 1 | 20 Nm | 08-22343 | Apply Loctite 242 to threads only, apply grease to shaft only |
| D | M6 Tapered Washer | 2 | 26-15633 | Apply grease to surface | |
| E | M6 Washer | 2 | 26-11817 | ||
| F | M6x20 SHCS | 2 | 9 Nm | 26-15947 | Apply Loctite 242 to threads |
| G | M8x7 Flip Chip | 1 | 26-27480 | Apply grease to outside surface | |
| H | M8x45 Lowhead SHCS | 1 | 15.6 Nm | 26-20091 | Apply Loctite 242 to threads |
| I | Bosch charge socket holder | 1 | 26-27867 | Bosch part number EB12.120.01A | |
| J | Bosch MCx14 Screw | 2 | 26-27869 | Bosch part number F04N.002.663 | |
| K | Bosch COB O-ring | 1 | 26-27868 | Bosch part number EB12.120.019 | |
| L | Bosch charge socket | 1 | 72-25237 | Bosch part number EB12.120.048 | |
| M | Bosch charger port cover | 1 | 26-27866 | Bosch part number EB12.120.01B | |
| N | Bosch DU Insert Sleeve | 1 | 26-29334 | Bosch part number EB11.200.0GK | |
| O | Bosch DU mount bolt front | 1 | 30 Nm | 26-27864 | Bosch part number EB11.200.12M |
| P | Bosch DU mount bolt rear | 1 | 30 Nm | 26-27865 | Bosch part number EB11.200.12H |
| Q | Pivot axle M15x80.5 | 1 | 20 Nm | 08-16292 | Apply Loctite 242 to threads only, apply grease to shaft only |
| R | M4x8 BHCS | 2 | 0.65 Nm | 26-21249 | Apply grease to threads |
| S | Fender | 1 | 30-27475 | ||
| T | M10x10 trunnion screw | 2 | 16 Nm | 26-27481 | Apply Loctite 242 to threads only, apply grease to shaft only |
| U | 6900-2RS Bearing | 2 | 11-12681 | ||
| V | M10x3 Washer | 2 | 26-15533 | Apply grease to inner surface | |
| W | M10x20 bolt | 2 | 16 Nm | 26-27484 | Apply Loctite 242 to threads |
| X | 6902-2RS Max Bearing | 2 | 11-12218 | ||
| Y | Washer | 2 | 26-27483 | Apply grease to inner surface | |
| Z | M10x2.6 Flip Chip | 2 | 26-27482 | Apply grease to outside surface |
Loading
Rear Axle, Rear Triangle Hardware, Chainguide, and Chainstay Protector
| label | name | quantity | part_number | blurb | torque |
|---|---|---|---|---|---|
| A | Rear axle 12x173.7 | 1 | 08-22209 | Apply grease to shaft and threads | |
| B | SCB UDH | 1 | 23-23491 | Interchangeable with Sram UDH | |
| C | SCB UDH screw | 1 | 26-23492 | Reverse thread | 20 Nm |
| D | M10x26 Bolt | 2 | 26-27487 | Apply Loctite 242 to threads only, apply grease to shaft only | 16 Nm |
| E | Dust Shield | 4 | 26-27488 | Apply grease to inner surface | |
| F | 6802-2RS Bearing | 4 | 11-27485 | ||
| G | Bearing spacer | 2 | 26-27489 | Apply grease to shaft | |
| H | M10x6 Nut | 2 | 26-27486 | Apply grease to inner surface | |
| I | Chanistay protector | 1 | 30-27476 | ||
| J | M3x12 BHCS | 1 | 26-15939 | Apply Loctite 242 to threads | 0.1 Nm |
| K | M4x10 FHCS | 2 | 26-22938 | Apply Loctite 242 to threads | 0.65 Nm |
| L | OneUp chainguide | 1 | 19-22609 | ||
| M | OneUp chainguide back plate | 1 | 26-27839 | ||
| N | Cable Loop Guide | 1 | 30-27838 | ||
| O | M3x6 | 2 | 26-22358 | Apply Loctite 242 to threads | 0.6 Nm |
| P | M5x12 HHS | 1 | 26-22570 | Apply Loctite 242 to threads | 2 Nm |
| Q | Seatstay Protector | 1 | 30-21453 |
Loading
Battery
| label | name | quantity | part_number | torque | blurb |
|---|---|---|---|---|---|
| A | Battery mount rear PT600 | 1 | 26-27493 | ||
| B | M4x10 SHCS | 8 | 26-28053 | 1.2 Nm | Apply Loctite 242 to threads |
| C | Bosch H-Connector | 1 | 26-27870 | ||
| D | Bosch battery PT600 | 1 | 78-25241 | Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ) | |
| E | Battery mount front PT600 | 1 | 26-27494 |
Loading

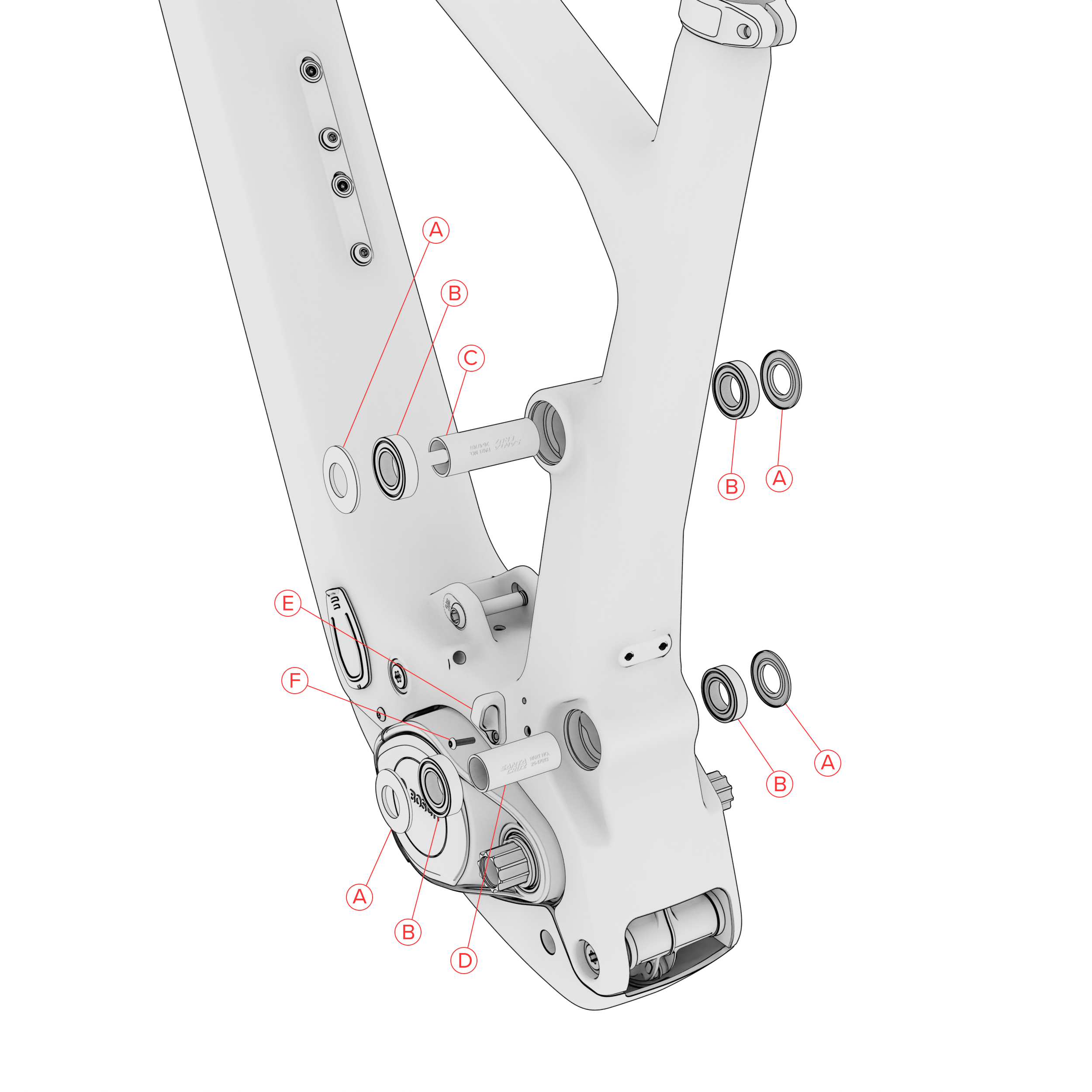

Front Triangle Hardware
| label | name | quantity | part_number | blurb |
|---|---|---|---|---|
| A | Bearing Dust Shield | 4 | 26-11612 | Apply grease to inner surface |
| B | 6902-2RS Max Bearing | 4 | 11-12218 | |
| C | 15x48 Bearing spacer | 1 | 26-17707 | |
| D | 15x40.25 Bearing Spacer | 1 | 26-17013 | |
| E | Cable loop FT NDS | 1 | 26-25329 | |
| F | M3x12 BHCS | 1 | 26-15939 | Apply Loctite 242 to threads |
Loading
| Frame Size | Flip Chip | Setup Key | Setup Cog | 32T | 34T | 36T |
|---|---|---|---|---|---|---|
| S | High | A | 7 | 116 | 116 | 118 |
| M | High | B | 7 | 116 | 118 | 118 |
| L | High | A | 7 | 116 | 118 | 118 |
| XL | High | A | 7 | 118 | 118 | 120 |
| XXL | High | A | 7 | 118 | 118 | 120 |
| S | Low | A | 7 | 116 | 118 | 118 |
| M | Low | A | 7 | 116 | 118 | 118 |
| L | Low | A | 7 | 118 | 118 | 120 |
| XL | Low | A | 7 | 118 | 118 | 120 |
| XXL | Low | A | 7 | 118 | 118 | 120 |
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
Carbon
CC
Front (MM)
170
Rear (MM)
170
Wheel Size
MX
Weight (lbs)
48.4
Weight (lbs)
48.4
Weight (kg)
21.95
If you feel the pull of gravity riding but want an extra push to get to the top, the Bullit is for you. The Bosch Performance Line CX motor gets you to the drop-in of the deepest, wildest trails. Built tough for the biggest terrain, the Bullit is the closest it gets to owning both a downhill bike and a chairlift.
Standout Features
Explore the trail taming highlights that make the Bullit so special.
01

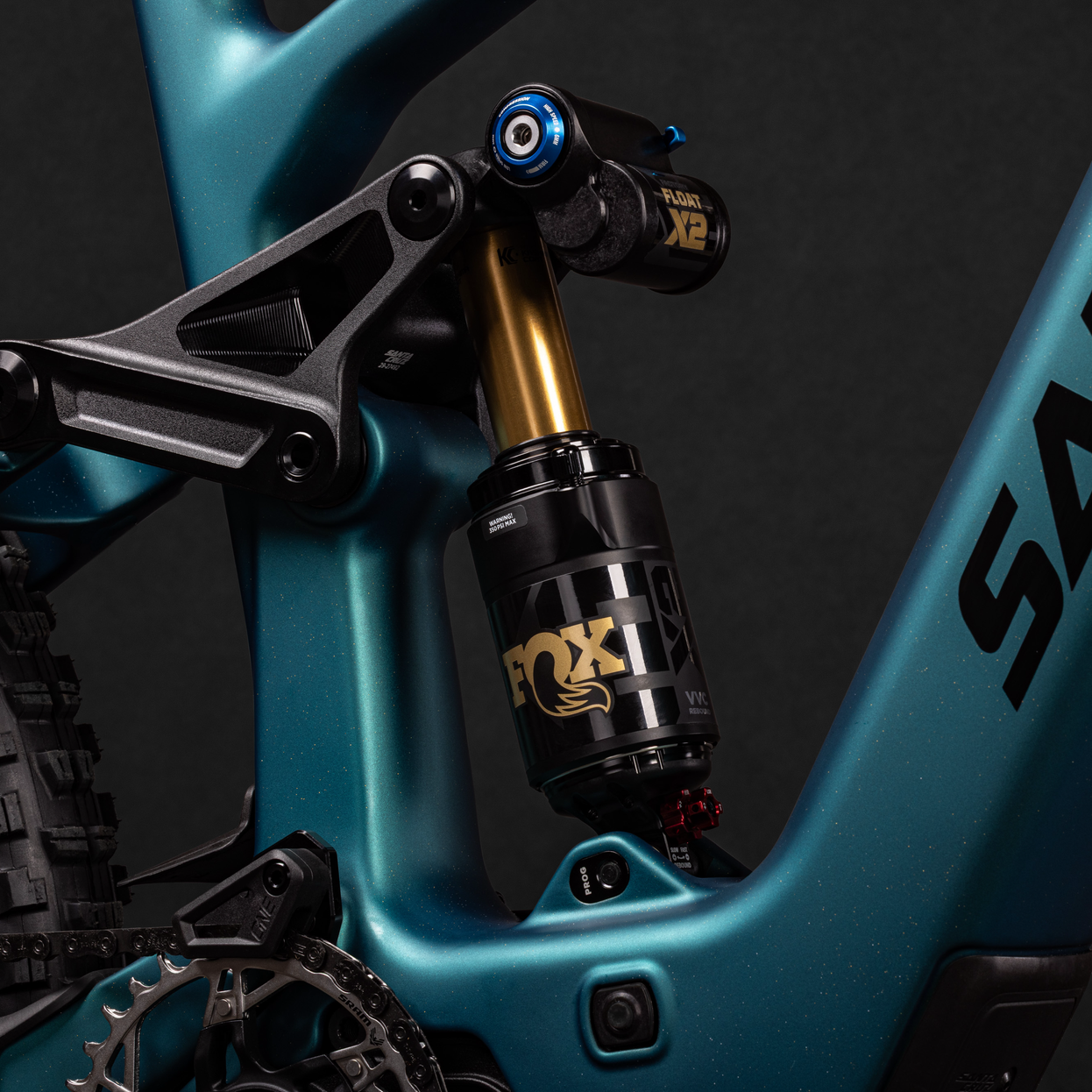

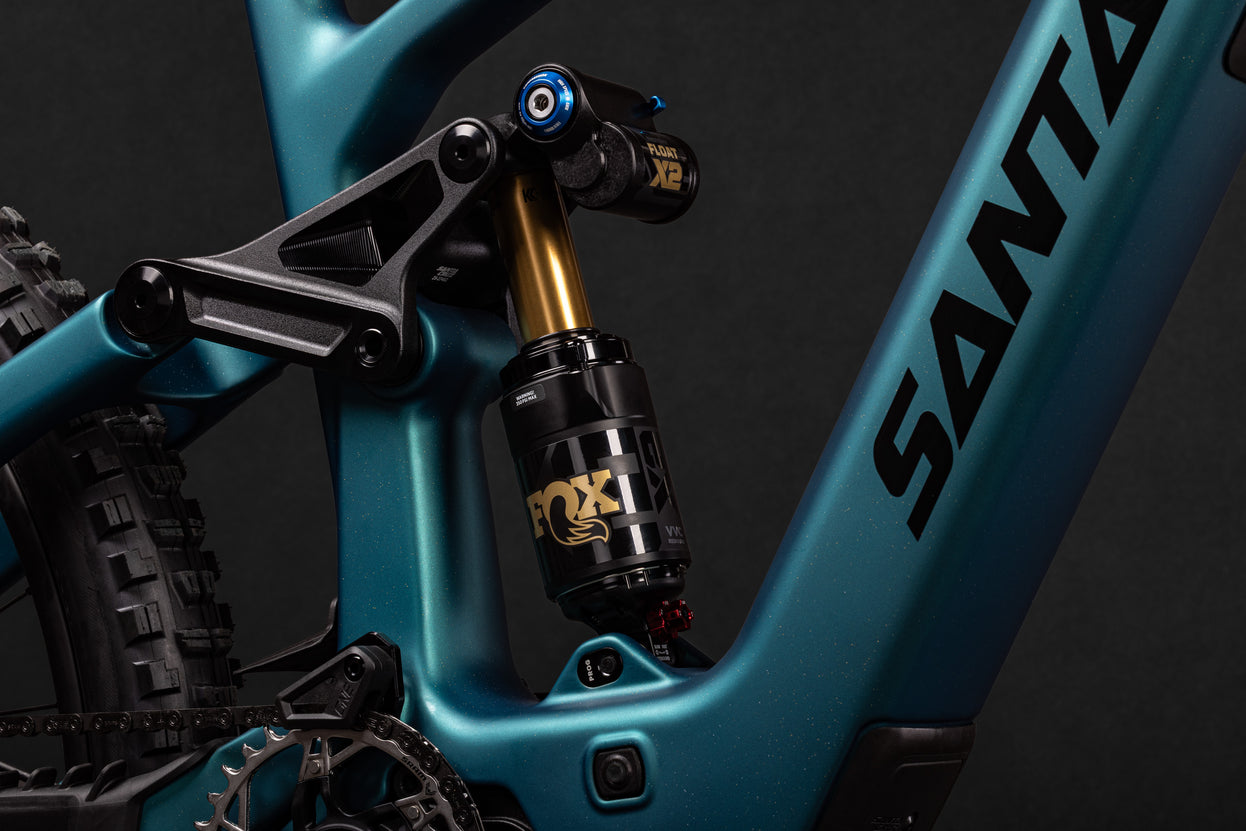

Fox X2
02

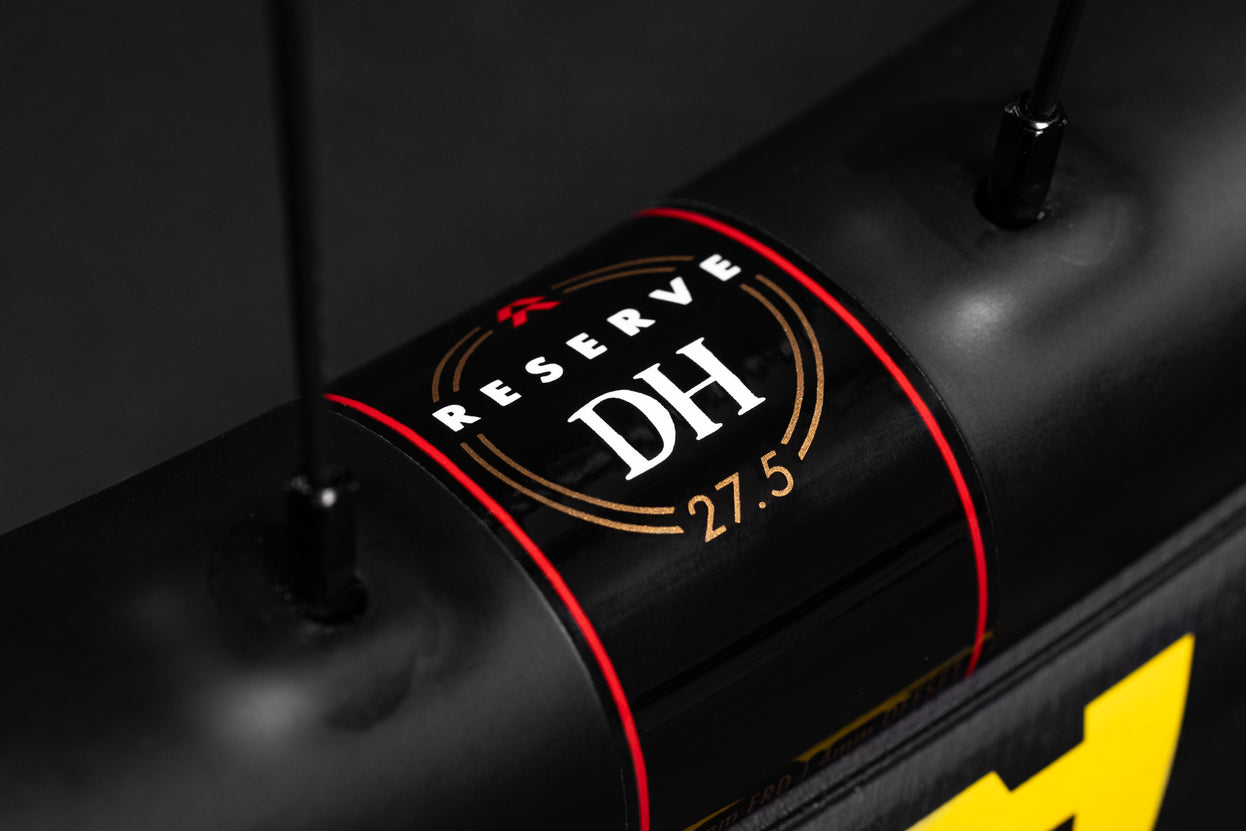

Reserve Carbon Wheels
03

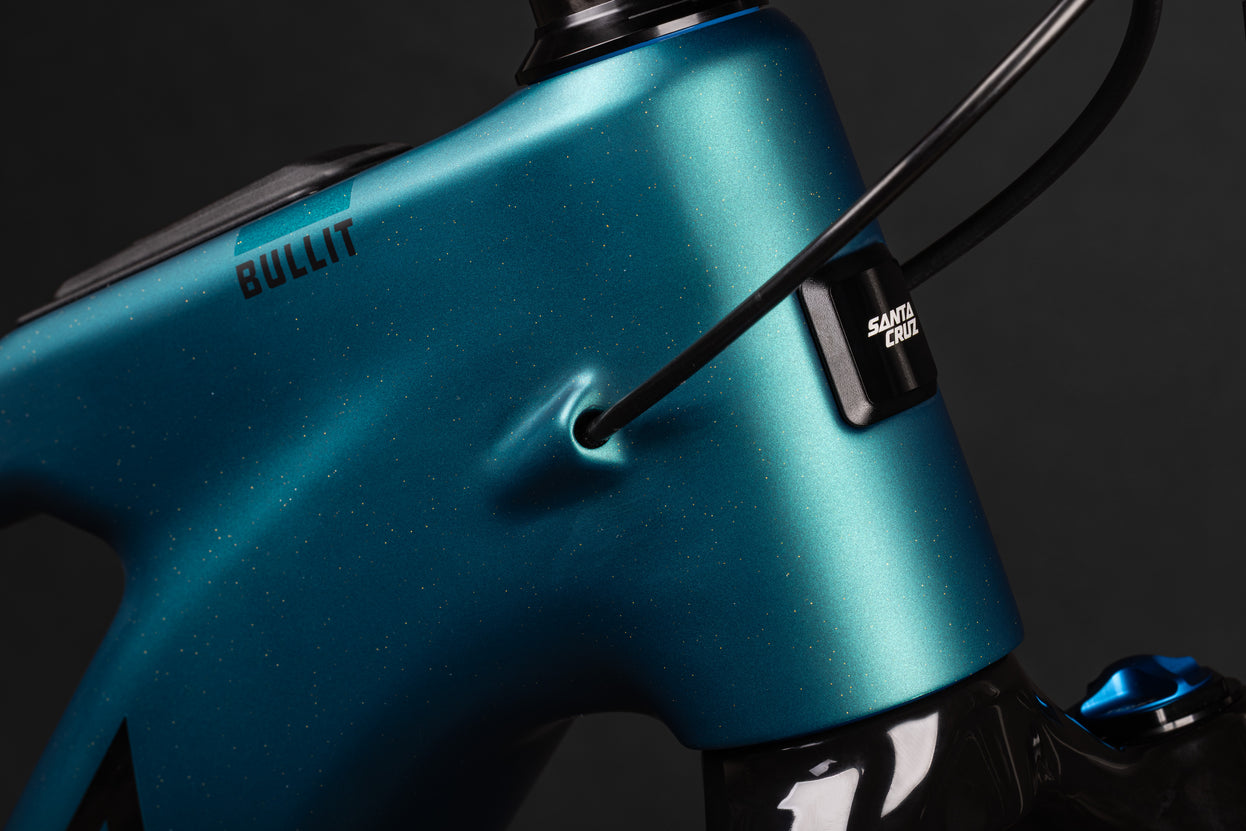

CC Carbon Frame
04
600 Wh Battery
05

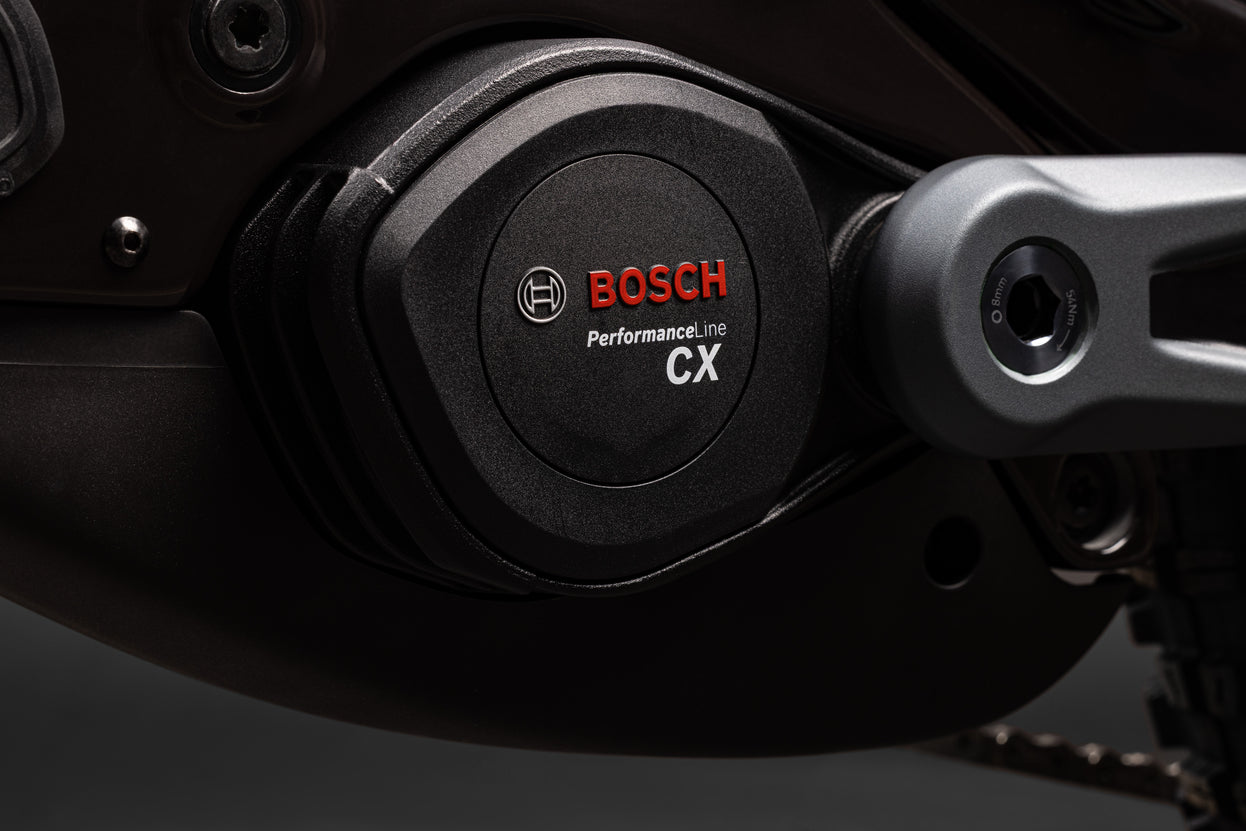

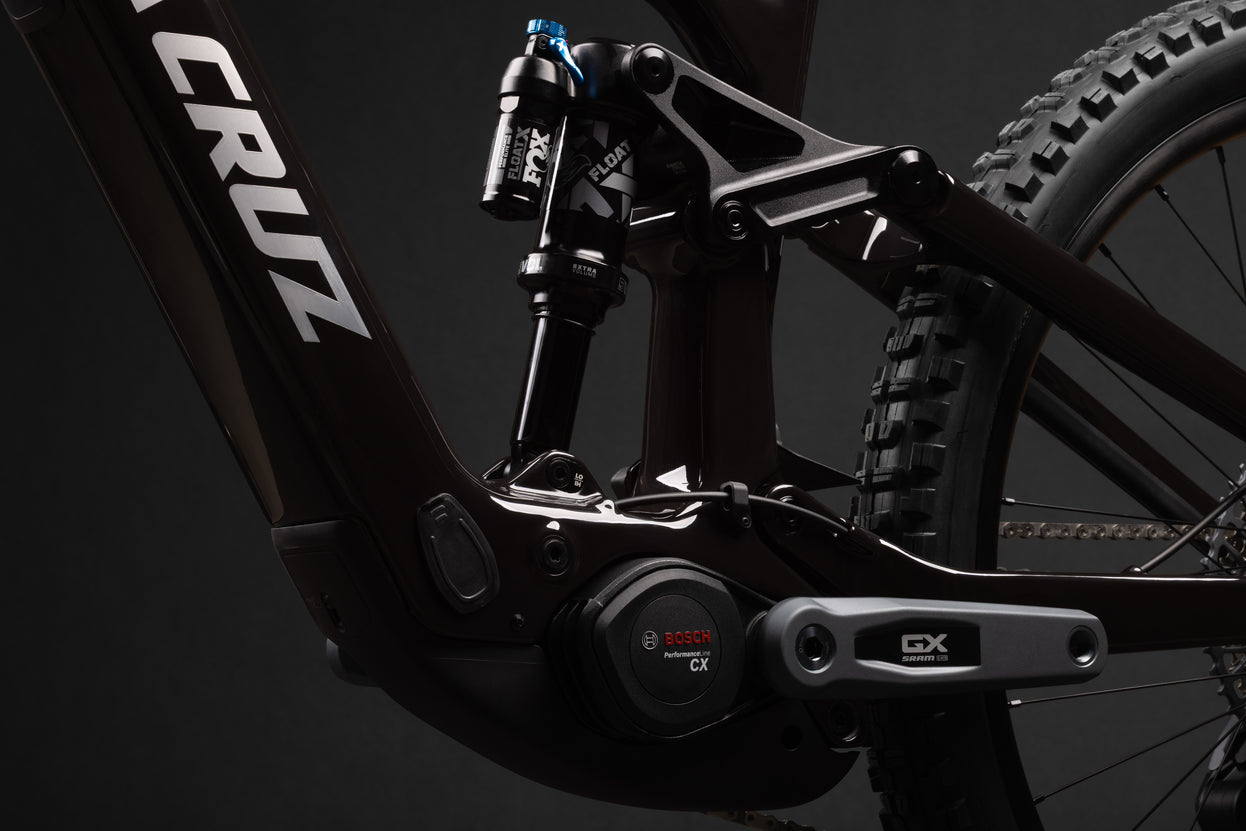

NEW Bosch Performance Line CX
06
Four-bar Suspension
07
Independent Geo and Shock Rate Flip chips
Dig Deep
Specs, sizing and support for the Bullit X0 AXS RSV
Build kit
& Specs
Geometry
& Sizing
Setup
& Support
Other Builds
Bullit 70
Base model with top-tier parts—the same Bosch motor, Maxxis tires, and big rotors as all Bullits. Quality suspension, just without all the external tuning dials.
$7,399
Bullit 90
Carbon C
Sweet upgrades for a sweet price. Reserve AL wheels, SRAM Maven brakes, and OneUp dropper. FOX Float Performance suspension and SRAM 90 Transmission drivetrain.
$8,599
Bullit GX AXS
Carbon C
Elite performance, flying under the radar. FOX Float Performance Elite suspension front and rear, electronic SRAM GX Eagle AXS Transmission and powerful SRAM Maven brakes.
$9,599
