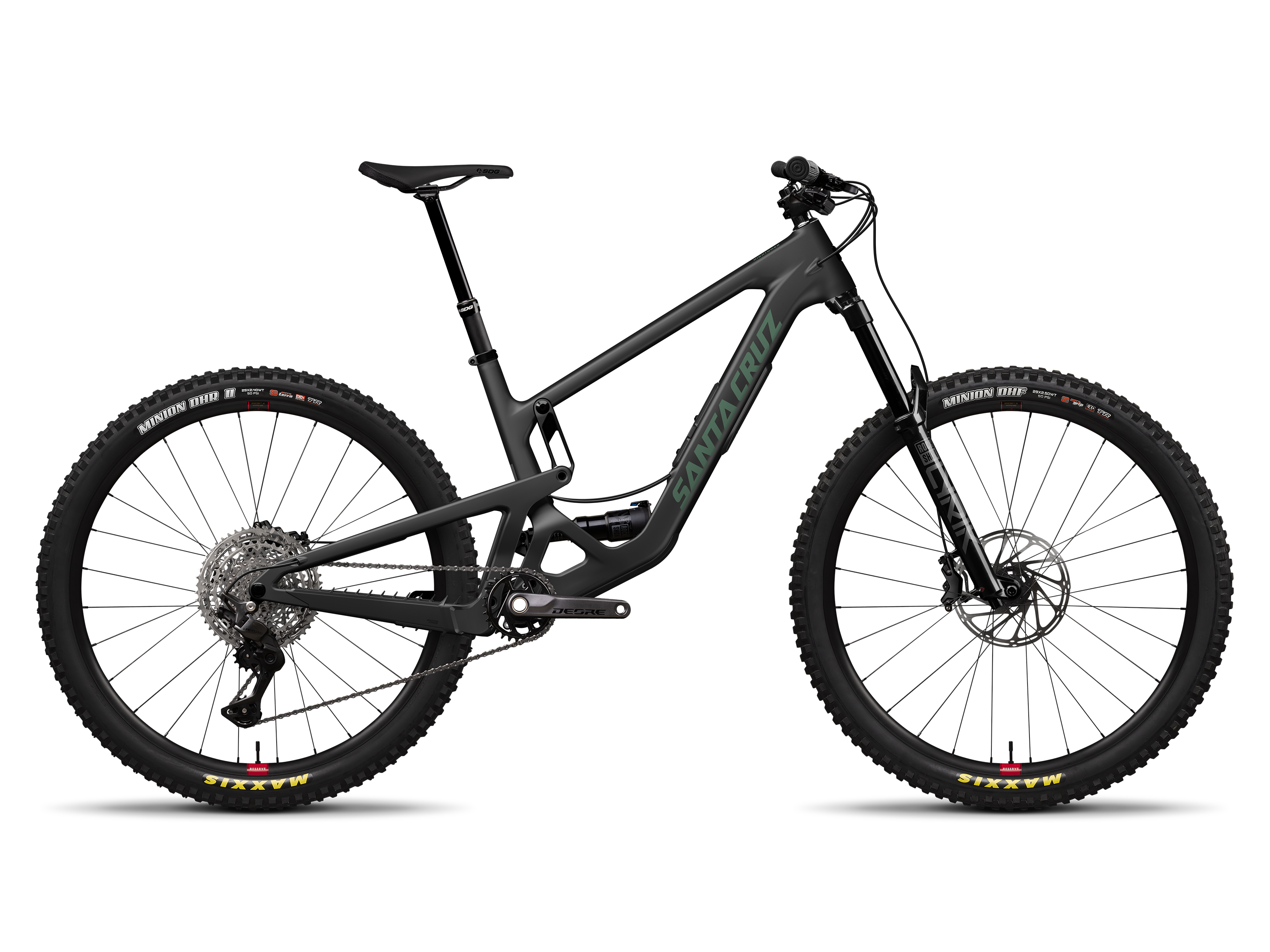

Hightower
THE DEFINITIVE MOUNTAIN BIKE
Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.
ARE WE THERE YET?
AN ALL-TERRAIN THRILLER
For trail rides that could mean local laps or alpine loops you need a bike with balanced travel and geometry that can handle a wide range of trail conditions. If you’re not looking for extremes, just something extremely good, the Hightower is your elevator.
A TRUE MTB FOR MODERN MOUNTAIN BIKING
The Hightower has the brawn to back up the brains. 150mm-travel VPP™ provides a plush, open feel with a lot of traction. This suspension travel sweetspot provides a broad riding envelope, meaning you’ll be pushing yourself and not the bike.
Filters:
Hightower XX AXS RSV
Absolutely everything. Top spec SRAM XX Transmission, Maven Ultimate brakes and legendary carbon Reserve wheels.
Hightower X0 AXS
For the factory Jackson. The lightest CC carbon frame, full SRAM X0 electronic Transmission, Fox 36 Factory suspension and SRAM Maven brakes
Hightower GX AXS
The high-performance all-rounder. Full SRAM GX Eagle electronic Transmission, SRAM Maven brakes, and Fox Elite suspension
Hightower S
The workhorse. Upgraded hubs, headset, and dropper post. Upgraded suspension with more adjustment, SRAM Eagle cable-operated drivetrain and four-piston SRAM brakes.
Hightower R
Base model with same tires and big rotors as all Hightowers. Quality RockShox Lyrik fork and Fox Float Rhythm rear shock suspension, just without all the external tuning dials.
Design Details
VPP™
The dual link VPP™ suspension design offers a balance of pedaling efficiency and all-out bump-chomping prowess.
Carbon Mastery
Choose between our top-end, lightweight Carbon CC frame or the value-minded Carbon C frame. Both come with a lifetime warranty.
Built to Last
Bikes aren't throwaway items, but they get thrown around. From the tough frames to free bearings for life, Santa Cruz bikes are built to last.
Glovebox
Keep your ride essentials close to hand inside the Glovebox. Also comes with a tailored Tool Wallet and Tube Purse.
Hightower Gallery
Hightower
Sizing & Geometry
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
| s | m | l | xl | xxl | |
|---|---|---|---|---|---|
| A. Reach (Hi/Lo) | 435/432 | 460/457 | 480/477 | 500/497 | 525/522 |
| B. Stack (Hi/Lo) | 623/625 | 632/634 | 641/643 | 659/661 | 668/670 |
| C. Head Tube Angle (Hi/Lo) | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| K. Head Tube Length (Hi/Lo) | 110 | 120 | 130 | 150 | 160 |
| G. Rear Center (Hi/Lo) | 434 | 436 | 439 | 442 | 445 |
| F. Front Center (Hi/Lo) | 771 | 800 | 825 | 853 | 883 |
| H. BB Height (Hi/Lo) | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| Bb drop front hi lo | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| Bb drop rear hi lo | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| E. Wheelbase (Hi/Lo) | 1176 | 1237 | 1264 | 1296 | 1328 |
| M. Top Tube Length (Hi/Lo) | 572 | 595 | 614 | 636 | 662 |
| L. Seat Tube Length (Hi/Lo) | 380 | 405 | 430 | 460 | 500 |
| D. Seat Tube Angle (Hi/Lo) | 77.6°/77.3° | 77.9°/77.6° | 78.2°/77.9° | 78.3°/78° | 78.4/°78.1° |
| J. Standover Height (Hi/Lo) | 721 | 723 | 725 | 727 | 731 |
Hightower
Setup & Support
Whether you’re the proud owner of a Hightower or are just digging deep into the details you’ll find it all here.
| label | name | quantity | part_number | blurb |
|---|---|---|---|---|
| A | 29-27474 | 1 | Upper Link | |
| B | 11-12681 | 2 | 6900-2RS Bearing | |
| C | 26-15533 | 2 | M10x3 Washer | Apply grease to inner surface |
| D | 26-11612 | 2 | Bearing Dust Shield | Apply grease to inner surface |
| E | 11-12218 | 2 | 6902-2RS Max Bearing |
| label | name | quantity | part_number | blurb | torque |
|---|---|---|---|---|---|
| A | 29-27473 | 1 | Lower Link | ||
| B | 11-17708 | 4 | 6902-1ZR Bearing | ||
| C | 26-11612 | 4 | Bearing Dust Shield | Apply grease to inner surface | |
| D | 26-19126 | 1 | 15x28 Bearing spacer | ||
| E | 26-17013 | 1 | 15x40.25 Bearing Spacer | ||
| F | 26-12678 | 1 | M6 Grease Fitting | 9 Nm | |
| G | 26-15532 | 1 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | 0.5 Nm |
| label | name | quantity | part_number | torque | blurb |
|---|---|---|---|---|---|
| A | 26-22843 | 1 | Glovebox lid | ||
| B | 26-25333 | 1 | Glovebox bezel | ||
| C | 26-23284 | 4 | M3x8 BHCS | 0.5 Nm | Apply Loctite 242 to threads |
| D | 30-23225 | 2 | Glovebox nut |
| label | name | quantity | part_number | blurb | torque |
|---|---|---|---|---|---|
| A | 08-22209 | 1 | Rear axle 12x173.7 | Apply grease to shaft and threads | |
| B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
| C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20 Nm |
| D | 30-27472 | 1 | Chainstay Protector | ||
| E | 26-15939 | 1 | M3x12 BHCS | Apply Loctite 242 to threads | 0.1 Nm |
| F | 30-21453 | 1 | Seatstay Protector | ||
| G | 30-23094 | 1 | Lower Link Fender | ||
| H | 26-18382 | 2 | M4x12 BHCS | Apply grease to treads | 0.65 Nm |
| label | name | quantity | torque | part_number | blurb |
|---|---|---|---|---|---|
| A | 26-20122 | 2 | 16 Nm | M10x23 Screw | Apply Loctite 242 to threads only, apply grease to shaft only |
| B | 08-22343 | 1 | 20 Nm | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only |
| C | 26-15633 | 3 | M6 Tapered Washer | Apply grease to surface | |
| D | 26-11817 | 3 | M6 Washer | ||
| E | 26-15947 | 3 | 9 Nm | M6x20 SHCS | Apply Loctite 242 to threads |
| F | 08-16291 | 1 | 20 Nm | Pivot axle M15x68.5 | Apply Loctite 242 to threads only, apply grease to shaft only |
| G | 08-16292 | 1 | 20 Nm | Pivot axle M15x80.5 | Apply Loctite 242 to threads only, apply grease to shaft only |
| H | 26-15946 | 1 | 5.6 Nm | M5x20 SHCS | Apply Loctite 242 to threads |
| I | 26-12652 | 1 | M5 Washer | ||
| J | 26-27530 | 1 | M5 Tapered Washer | Apply grease to surface | |
| K | 08-27508 | 1 | 13.6Nm | Shock Mount Axle M10x63 | Apply Loctite 242 to threads only, apply grease to shaft only |
| L | 26-22461 | 1 | 20 Nm | M8x45 Shock Bolt | Apply Loctite 242 to threads |
| M | 26-21452 | 1 | M8x2 Flip Chip NDS | Apply grease to surface | |
| N | 26-21451 | 1 | M8x2 Flip Chip DS | Apply grease to surface |
| label | name | quantity | part_number | blurb | torque |
|---|---|---|---|---|---|
| A | 20-27756 | 1 | Head Tube Badge | Clean frame surface, center on headtube | |
| B | 30-23750 | 1 | Shuttle Guard Mount | ||
| C | 30-22560 | 1 | Shuttle Guard | ||
| D | 26-21249 | 2 | M4x8 BHCS | Apply grease to threads | 0.65 Nm |
| E | 30-27471 | 1 | Downtube Protector | ||
| F | 26-18382 | 2 | M4x12 BHCS | Apply grease to treads | 0.65 Nm |
| G | 34-20201 | 1 | 36.4 Seat Collar |
Dig Deep
Sizing and support for the Hightower
Geometry& Sizing
Setup& Support
“The Hightower has grown up, it’s now a bike for big terrain and long days out in proper mountains, and as such it’ll be more useful for more riders, I suspect.”
“The pedaling is absolutely excellent for such a potent 150mm bike, which, combined with useful features such as the glovebox, makes the Hightower an excellent choice for long rides. ”
“I just feel like I’m riding better up here than I have in ages. And that’s all down to this bike. Happy days on the new Hightower. It’s a mojo finder. ”
