Vala 1 MY25

Specifiche

Sistema di sospensione	Four-bar
Attacco deragliatore anteriore	No compatibility
Serie sterzo	Integrated (IS41/52)
Diametro reggisella	31.6mm
Diametro clamp	36.4mm
Interasse ammortizzatore	205mm
Corsa dell'ammortizzatore	60mm
Sag consigliato	30% (18mm)
Larghezza massima pneumatico	2.5"
Massima corona consentita	36t
Attacco borraccia	1
Shock Mounting Hardware superiore	Trunnion
Shock Mounting Hardware inferiore	8x30
Diametro massimo disco	220mm
Attacco freno posteriore	200mm PM
Offset della forcella	44mm

Allestimenti

Seleziona un allestimento

R

• R
• S
• GX AXS
• X 0 AXS RSV
• XX AXS RSV

Peso	49.49 lbs / 22.45 kg
Materiale	Carbon C
Escursione	150mm
Diametro ruote	MX
Ammortizzatore	FOX Float X Performance, 205x60
Forcella	RockShox Zeb Base, 160mm
Deragliatore posteriore	SRAM NX Eagle, 12spd
Comandi	SRAM NX
Pacco pignoni	SRAM PG1230, 12spd, 11-50t
Catena	SRAM NX Eagle, 12spd
Serie Sterzo	FSA IS-2/47/42 ACB -or- Cane Creek 10 IS Integrated Headset
Pneumatico posteriore	Schwalbe Magic Mary, 27.5x2.5, Gravity Radial Soft
Pneumatico anteriore	Schwalbe Magic Mary, 29x2.5, Trail Radial Ultra Soft
Valvole	Reserve Fillmore Valves
Mozzo posteriore	SRAM MTH 716, 15x110, 6-Bolt, 32h
Cerchio anteriore	Raceface ARC 30 HD
Mozzo posteriore	SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Cerchio posteriore	Raceface ARC 30 HD
Disco anteriore	Avid Centerline 220mm
Disco posteriore	Avid Centerline 220mm
Freni	SRAM DB8 Stealth
Guarnitura	E13 Helix eSpec, 160mm
Lunghezza pedivelle	S/M/L/XL/XXL - 160mm
Manubrio	e13 TRS Base
Larghezza manubrio	S - 760mm, 20mm Rise M/L/XL/XXL - 800mm, 35mm Rise
Attacco manubrio	e.13 Base, 40mm -or- RaceFace Chester, 40mm
Lunghezza attacco manubrio	S/M/L/XL/XXL - 40mm
Sella	SDG Bel-Air V3, Max Steel
Reggisella	SDG Tellis Dropper, 31.6
Lunghezza del reggisella	S - 125mm, M - 170mm, L/XL/XXL - 200mm
Manopole/Nastro	Santa Cruz Bicycles House Grips
Batteria	Bosch PowerTube Battery 600Wh
Drive Unit	Bosch Performance CX BDU38

Peso	49.04 lbs / 22.24 kg
Materiale	Carbon C
Escursione	150mm
Diametro ruote	MX
Ammortizzatore	FOX Float X Performance, 205x60
Forcella	FOX 38 Float Performance, Grip 160mm
Deragliatore posteriore	SRAM GX Eagle, 12spd
Comandi	SRAM GX Eagle Single Click, 12spd
Pacco pignoni	SRAM XG1275 Eagle, 12spd, 10-50t
Catena	SRAM GX Eagle, 12spd
Serie Sterzo	FSA IS-2/47/42 ACB -or- Cane Creek 10 IS Integrated Headset
Pneumatico posteriore	Schwalbe Magic Mary, 27.5x2.5, Gravity Radial Soft
Pneumatico anteriore	Schwalbe Magic Mary, 29x2.5, Trail Radial Ultra Soft
Valvole	Reserve Fillmore Valves
Mozzo posteriore	E13 SL, 15x110, 6-Bolt, 32h
Cerchio anteriore	Raceface ARC 30 HD
Mozzo posteriore	E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Cerchio posteriore	Raceface ARC 30 HD
Disco anteriore	SRAM HS2 200mm
Disco posteriore	SRAM HS2 200mm
Freni	SRAM Maven Bronze Stealth
Guarnitura	E13 Helix eSpec, 160mm
Lunghezza pedivelle	S/M/L/XL/XXL - 160mm
Manubrio	OneUp Aluminum Bar, 35mm Rise, 800mm
Larghezza manubrio	S - 800mm, 20mm Rise M/L/XL/XXL - 800mm, 35mm Rise
Attacco manubrio	OneUp Stem -or- Burgtec Enduro MK3, 42mm
Lunghezza attacco manubrio	S/M/L/XL/XXL - 42mm
Sella	SDG Bel-Air V3, Max Lux-Alloy -or- WTB Volt
Reggisella	OneUp Dropper Post, 31.6
Lunghezza del reggisella	S - 120mm, M - 180mm, L - 210mm, XL/XXL - 240mm
Manopole/Nastro	Santa Cruz Bicycles House Grips
Batteria	Bosch PowerTube Battery 600Wh
Drive Unit	Bosch Performance CX BDU38

Peso	49.32 lbs / 22.37 kg
Materiale	Carbon C
Escursione	150mm
Diametro ruote	MX
Ammortizzatore	FOX Float X Performance Elite, 205x60
Forcella	FOX 38 Float Performance Elite, Grip X2, 160mm
Deragliatore posteriore	SRAM GX Eagle AXS T-Type, 12spd
Comandi	SRAM AXS Pod Bridge
Pacco pignoni	SRAM GX Eagle T-Type, 10-52t
Catena	SRAM GX Eagle T-Type, Flattop, 12spd
Serie Sterzo	Cane Creek 50 IS Integrated Headset
Pneumatico posteriore	Schwalbe Magic Mary, 27.5x2.5, Gravity Radial Soft
Pneumatico anteriore	Schwalbe Magic Mary, 29x2.5, Trail Radial Ultra Soft
Valvole	Reserve Fillmore Valves
Mozzo posteriore	E13 SL, 15x110, 6-Bolt, 32h
Cerchio anteriore	Raceface ARC 30 HD
Mozzo posteriore	E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Cerchio posteriore	Raceface ARC 30 HD
Disco anteriore	SRAM HS2 200mm
Disco posteriore	SRAM HS2 200mm
Freni	SRAM Maven Bronze Stealth
Guarnitura	SRAM GX Eagle Cranks, 160mm
Lunghezza pedivelle	S/M/L/XL/XXL - 160mm
Manubrio	OneUp Aluminum Bar, 35mm Rise, 800mm
Larghezza manubrio	S - 800mm, 20mm Rise M/L/XL/XXL - 800mm, 35mm Rise
Attacco manubrio	OneUp Stem, 42mm -or- Burgtec Enduro Stem, 42mm
Lunghezza attacco manubrio	S/M/L/XL/XXL - 42mm
Sella	SDG Bel-Air V3, Max Lux-Alloy Atmos
Reggisella	OneUp Dropper Post, 31.6
Lunghezza del reggisella	S - 120mm, M - 180mm, L - 210mm, XL/XXL - 240mm
Manopole/Nastro	Santa Cruz Bicycles House Grips
Batteria	Bosch PowerTube Battery 600Wh
Drive Unit	Bosch Performance CX BDU38

Peso	47.46 lbs / 21.53 kg
Materiale	Carbon CC
Escursione	150mm
Diametro ruote	MX
Ammortizzatore	FOX Float X Factory, 205x60
Forcella	FOX 38 Factory, Grip X2, 160mm
Deragliatore posteriore	SRAM X0 Eagle AXS T-Type, 12spd
Comandi	SRAM AXS Pod Controller Rocker Paddle
Pacco pignoni	SRAM X0 Eagle T-Type, 10-52t
Catena	SRAM X0 Eagle T-Type, Flattop, 12spd
Serie Sterzo	Cane Creek 50 IS Integrated Headset
Pneumatico posteriore	Schwalbe Magic Mary, 27.5x2.5, Gravity Radial Soft
Pneumatico anteriore	Schwalbe Magic Mary, 29x2.5, Trail Radial Ultra Soft
Valvole	Reserve Fillmore Valves
Mozzo posteriore	DT Swiss 350, 15x110, 6-Bolt, 28h
Cerchio anteriore	Reserve 30|HD Carbon
Mozzo posteriore	DT Swiss 350, 12x148, XD, 6-Bolt, 24t, 32h
Cerchio posteriore	Reserve 31|DH Carbon
Disco anteriore	SRAM HS2 200mm
Disco posteriore	SRAM HS2 200mm
Freni	SRAM Maven Silver Stealth
Guarnitura	SRAM X0 Eagle Cranks, 160mm
Lunghezza pedivelle	S/M/L/XL/XXL - 160mm
Manubrio	Santa Cruz 35 Carbon Bar, 800mm
Larghezza manubrio	S - 800mm, 20mm Rise M/L/XL/XXL - 80mm, 35mm Rise
Attacco manubrio	OneUp Stem, 42mm -or- Burgtec Enduro Stem, 42mm
Lunghezza attacco manubrio	S/M/L/XL/XXL - 42mm
Sella	WTB Silverado Medium Fusion, CroMo SL
Reggisella	OneUp Dropper Post, 31.6
Lunghezza del reggisella	S - 120mm, M - 180mm, L - 210mm, XL/XXL - 240mm
Manopole/Nastro	Santa Cruz Bicycles House Grips
Batteria	Bosch PowerTube Battery 600Wh
Drive Unit	Bosch Performance CX BDU38

Peso	47.33 lbs / 21.47 kg
Materiale	Carbon CC
Escursione	150mm
Diametro ruote	MX
Ammortizzatore	FOX Float X Factory, 205x60
Forcella	FOX 38 Factory, Grip X2, 160mm
Deragliatore posteriore	SRAM XX Eagle AXS T-Type, 12spd
Comandi	SRAM AXS Pod Controller Rocker Paddle
Pacco pignoni	SRAM XX Eagle T-Type, 10-52t
Catena	SRAM XX Eagle T-Type, Flattop, 12spd
Serie Sterzo	Chris King DropSet 3 Integrated Headset
Pneumatico posteriore	Schwalbe Magic Mary, 27.5x2.5, Gravity Radial Soft
Pneumatico anteriore	Schwalbe Magic Mary, 29x2.5, Trail Radial Ultra Soft
Valvole	Reserve Fillmore Valves
Mozzo posteriore	Industry Nine Hydra, 15x110, 6-Bolt 28h
Cerchio anteriore	Reserve 30|HD Carbon
Mozzo posteriore	Industry Nine Hydra, 12x148, XD, 6-Bolt, 32h
Cerchio posteriore	Reserve 31|DH Carbon
Disco anteriore	SRAM HS2 200mm
Disco posteriore	SRAM HS2 200mm
Freni	SRAM Maven Ultimate Stealth
Guarnitura	SRAM X0 Eagle Cranks, 160mm
Lunghezza pedivelle	S/M/L/XL/XXL - 160mm
Manubrio	Santa Cruz 35 Carbon Bar, 800mm
Larghezza manubrio	S - 800mm, 20mm Rise M/L/XL/XXL - 80mm, 35mm Rise
Attacco manubrio	Burgtec Enduro MK3 Machined, 42mm
Lunghezza attacco manubrio	S/M/L/XL/XXL - 42mm
Sella	WTB Silverado Medium Fusion, Stainless
Reggisella	OneUp Dropper Post, 31.6
Lunghezza del reggisella	S - 120mm, M - 180mm, L - 210mm, XL/XXL - 240mm
Manopole/Nastro	Santa Cruz Bicycles House Grips
Batteria	Bosch PowerTube Battery 600Wh
Drive Unit	Bosch Performance CX BDU38

Geometria

Tutte le unità sono espresse in millimetri o gradi.

	s	m	l	xl	xxl
Reach (Hi/Lo)	435/432	460/456	480/477	500/497	525/522
Stack (Hi/Lo)	623/625	632/635	641/643	655/657	668/670
Head Tube Angle (Hi/Lo)	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°
Head Tube Length (Hi/Lo)	110	120	130	145	160
Rear Center (Hi/Lo)	439	440	443	446	450
Front Center (Hi/Lo)	771	800	825	851	883
BB Height (Hi/Lo)	344/340	344/340	344/340	344/340	344/340
BB Drop Front (Hi/Lo)	28/32	28/32	28/32	28/32	28/32
BB Drop Rear (Hi/Lo)	11/15	11/15	11/15	11/15	11/15
Wheelbase (Hi/Lo)	1210	1240	1268	1297	1333
Top Tube Length (Hi/Lo)	573	601	622	645	673
Seat Tube Length (Hi/Lo)	380	400	420	460	500
Seat Tube Angle (Hi/Lo)	77.5°/77.2°	77.5°/77.2°	77.5°/77.2°	77.5°/77.2°	77.5°/77.2°
Standover Height (Hi/Lo)	741	735	734	734	728

Guida alle taglie

IN / CM Small

154cm 5'1" - 165cm 5'5" Reach: 435mm

Medium

165cm 5'5" - 175cm 5'9" Reach: 460mm

Large

175cm 5'9" - 185cm 6'1" Reach: 480mm

X-Large

182cm 6'0" - 193cm 6'4" Reach: 500mm

XX-Large

193cm 6'4" - 200cm 6'7" Reach: 525mm

Setup delle sospensioni

Fox Float X Performance 205x60

Peso del Rider (lbs)	Peso del Rider (kg)	Pressione (psi)	Sag	Rebound (da chiuso)
100	45	125	30%, 18mm	8
120	54	145	30%, 18mm	7
140	64	165	30%, 18mm	7
160	73	180	30%, 18mm	6
180	82	200	30%, 18mm	5
200	91	220	30%, 18mm	4
220	100	240	30%, 18mm	4
240	109	255	30%, 18mm	3
260	118	275	30%, 18mm	3

Rockshox Zeb Base 160 29

Peso del Rider (lbs)	Peso del Rider (kg)	Pressione (psi)	Rebound (da chiuso)
100	45	47	13
120	54	56	12
140	64	64	11
160	73	72	11
180	82	80	10
200	91	88	9
220	100	96	8
240	109	102	7

Fox Float X Performance 205x60

Peso del Rider (lbs)	Peso del Rider (kg)	Pressione (psi)	Sag	Rebound (da chiuso)
100	45	125	30%, 18mm	8
120	54	145	30%, 18mm	7
140	64	165	30%, 18mm	7
160	73	180	30%, 18mm	6
180	82	200	30%, 18mm	5
200	91	220	30%, 18mm	4
220	100	240	30%, 18mm	4
240	109	255	30%, 18mm	3
260	118	275	30%, 18mm	3

Fox 38 Performance 160 29

Peso del Rider (lbs)	Peso del Rider (kg)	Pressione (psi)	Rebound (da chiuso)
120	54	79	13
130	59	83	12
140	64	87	11
150	68	91	10
160	73	96	9
170	77	100	8
180	82	104	7
190	86	109	6
200	91	113	5
210	95	117	4
220	100	121	3
230	104	126	2
240	109	130	1

Fox Float X Perf. Elite 205x60

Peso del Rider (lbs)	Peso del Rider (kg)	Pressione (psi)	Sag	Rebound (da chiuso)	Compressione
100	45	125	30%, 18mm	8	5-10
120	54	145	30%, 18mm	7	5-10
140	64	165	30%, 18mm	7	5-10
160	73	180	30%, 18mm	6	5-10
180	82	200	30%, 18mm	5	5-10
200	91	220	30%, 18mm	4	5-10
220	100	240	30%, 18mm	4	5-10
240	109	255	30%, 18mm	3	5-10
260	118	275	30%, 18mm	3	5-10

Fox 38 Perf. Elite 160 29

Peso del Rider (lbs)	Peso del Rider (kg)	Pressione (psi)	Rebound (L/H da chiuso)	Compressione (L/H dal chiuso)
120	54	79	9,8	5,5
130	59	83	8,7	5,5
140	64	87	7,6	5,5
150	68	91	7,6	5,5
160	73	96	6,5	5,5
170	77	100	6,5	5,5
180	82	104	5,4	5,5
190	86	109	4,3	5,5
200	91	113	4,3	5,5
210	95	117	3,2	5,5
220	100	121	2,1	5,5
230	104	126	2,1	5,5
240	109	130	1,0	5,5

Fox Float X Factory 205x60

Peso del Rider (lbs)	Peso del Rider (kg)	Pressione (psi)	Sag	Rebound (da chiuso)	Compressione
100	45	125	30%, 18mm	8	5-10
120	54	145	30%, 18mm	7	5-10
140	64	165	30%, 18mm	7	5-10
160	73	180	30%, 18mm	6	5-10
180	82	200	30%, 18mm	5	5-10
200	91	220	30%, 18mm	4	5-10
220	100	240	30%, 18mm	4	5-10
240	109	255	30%, 18mm	3	5-10
260	118	275	30%, 18mm	3	5-10

Fox 38 Factory 160 29

Peso del Rider (lbs)	Peso del Rider (kg)	Pressione (psi)	Rebound (L/H da chiuso)	Compressione (L/H dal chiuso)
120	54	79	9,8	5,5
130	59	83	8,7	5,5
140	64	87	7,6	5,5
150	68	91	7,6	5,5
160	73	96	6,5	5,5
170	77	100	6,5	5,5
180	82	104	5,4	5,5
190	86	109	4,3	5,5
200	91	113	4,3	5,5
210	95	117	3,2	5,5
220	100	121	2,1	5,5
230	104	126	2,1	5,5
240	109	130	1,0	5,5

Fox Float X Factory 205x60

Peso del Rider (lbs)	Peso del Rider (kg)	Pressione (psi)	Sag	Rebound (da chiuso)	Compressione
100	45	125	30%, 18mm	8	5-10
120	54	145	30%, 18mm	7	5-10
140	64	165	30%, 18mm	7	5-10
160	73	180	30%, 18mm	6	5-10
180	82	200	30%, 18mm	5	5-10
200	91	220	30%, 18mm	4	5-10
220	100	240	30%, 18mm	4	5-10
240	109	255	30%, 18mm	3	5-10
260	118	275	30%, 18mm	3	5-10

Fox 38 Factory 160 29

Peso del Rider (lbs)	Peso del Rider (kg)	Pressione (psi)	Rebound (L/H da chiuso)	Compressione (L/H dal chiuso)
120	54	79	9,8	5,5
130	59	83	8,7	5,5
140	64	87	7,6	5,5
150	68	91	7,6	5,5
160	73	96	6,5	5,5
170	77	100	6,5	5,5
180	82	104	5,4	5,5
190	86	109	4,3	5,5
200	91	113	4,3	5,5
210	95	117	3,2	5,5
220	100	121	2,1	5,5
230	104	126	2,1	5,5
240	109	130	1,0	5,5

Transmission Setup

Frame Size	Flip Chip	Setup Key	Setup Cog	32T	34T	36T
S	High	B	7	116	118	118
M	High	B	7	116	118	118
L	High	B	7	118	118	120
XL	High	B	7	118	118	120
XXL	High	B	7	118	120	120
S	Low	B	7	116	118	118
M	Low	B	7	118	118	120
L	Low	B	7	118	118	120
XL	Low	B	7	118	120	120
XXL	Low	B	7	118	120	120

Exploded Diagrams

Pivot Bearings

label	part_number	quantity	name	blurb
A	26-11612	4	Bearing Dust Shield	Apply grease to inner surface
B	11-12218	4	6902-2RS Max Bearing
C	26-17707	1	15x48 Bearing spacer
D	26-17013	1	15x40.25 Bearing Spacer

Ingrandisci immagine

Rimpicciolisci immagine

Controller, Motor, Downtube Protector, and Shuttle Guard

label	part_number	quantity	name	blurb	torque
A	20-27756	1	Head Tube Badge	Clean frame surface, center on headtube
B	26-27915	4	M5x10 BHCS	Apply Loctite 242 to threads	9 Nm
C	30-27825	1	Shuttle guard	Line up with battery screws
D	72-25239	1	Bosch DU Performance CX	Bosch part number EB11.100.00E
E	26-23102	3	M4x16 BHCS	Apply grease to threads	0.65 Nm
F	30-27496	1	DU protector	Use 30-27495 for size S & M
G	26-21224	2	M6x10 BHCS	Apply loctite to threads	3 Nm
H	26-27862	2	Bosch DU mount nut	Bosch part number EB11.200.03C
I	26-27479	1	M8x7 Flip Chip	Apply grease to outside surface
J	34-20201	1	36.4 Seat Collar
K	26-28150	1	M4x26 Bosch Screw
L	72-25240	1	Bosch TT System Controller	Bosch part number EB13.100.000
M	26-27857	1	Bosch TT adapter	Bosch part number EB13.200.0AE

Ingrandisci immagine

Rimpicciolisci immagine

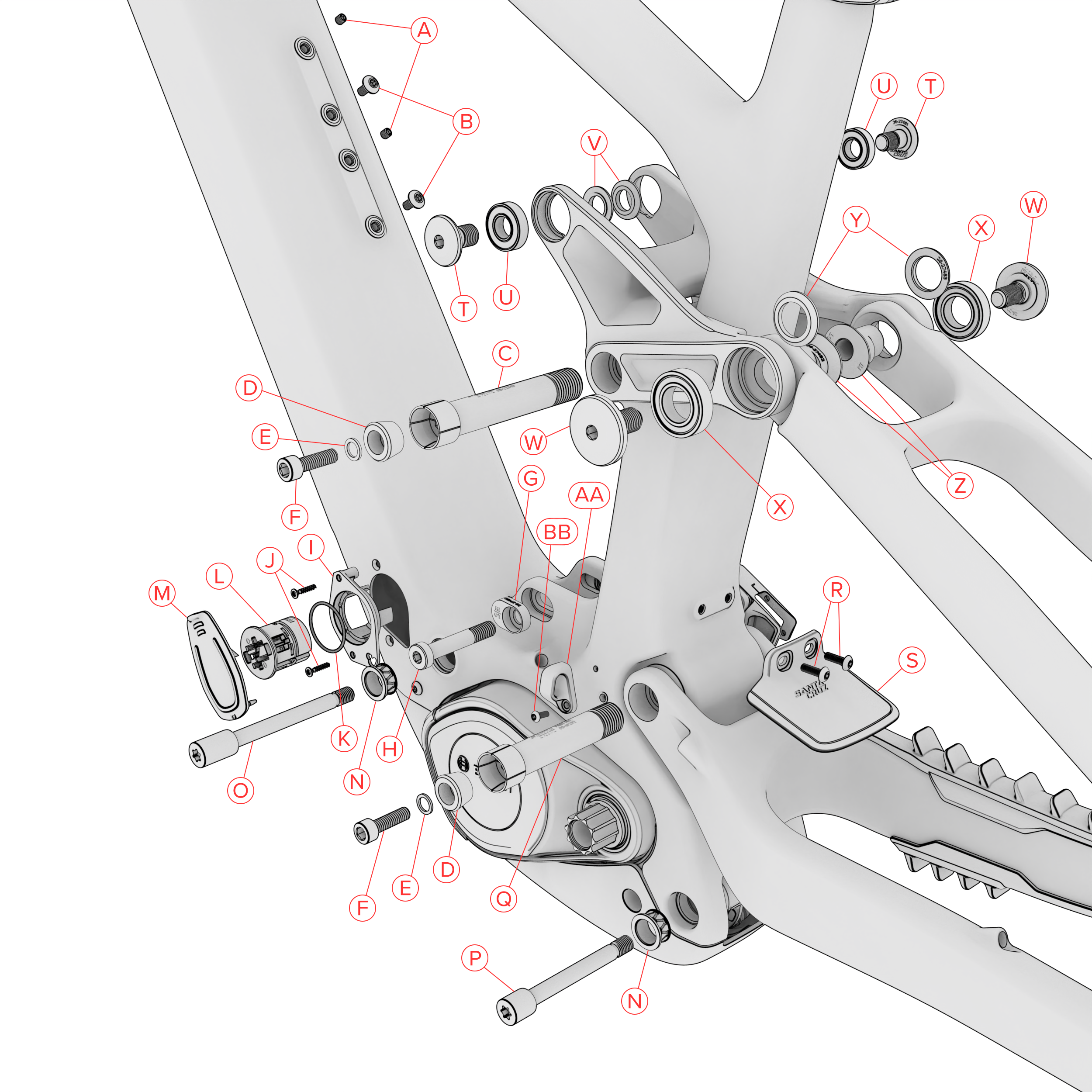

Linkage Hardware

label	part_number	quantity	torque	name	blurb
A	26-15532	2	0.5 Nm	M5x5 Set Screw	Apply Loctite 242 to threads, titghten until flush
B	26-20124	4		M5x16 Water Bottle screw	Apply grease to threads
C	08-22343	1	20 Nm	Pivot Axle M15x91	Apply Loctite 242 to threads only, apply grease to shaft only
D	26-15633	2		M6 Tapered Washer	Apply grease to surface
E	26-11817	2		M6 Washer
F	26-15947	2	9 Nm	M6x20 SHCS	Apply Loctite 242 to threads
G	26-27480	1		M8x7 Flip Chip	Apply grease to outside surface
H	26-20091	1	15.6 Nm	M8x45 Lowhead SHCS	Apply Loctite 242 to threads
I	26-27867	1		Bosch charge socket holder	Bosch part number EB12.120.01A
J	26-27869	2		Bosch MCx14 Screw	Bosch part number F04N.002.663
K	26-27868	1		Bosch COB O-ring	Bosch part number EB12.120.019
L	72-25237	1		Bosch charge socket	Bosch part number EB12.120.048
M	26-27866	1		Bosch charger port cover	Bosch part number EB12.120.01B
N	26-29334	2		Bosch DU mount insert sleeve	Bosch part number EB11.200.0GK
O	26-27864	1	30 Nm	Bosch DU mount bolt front	Bosch part number EB11.200.12M
P	26-27865	1	30 Nm	Bosch DU mount bolt rear	Bosch part number EB11.200.12H
Q	08-16292	1	20 Nm	Pivot axle M15x80.5	Apply Loctite 242 to threads only, apply grease to shaft only
R	26-18382	2	0.65 Nm	M4x12 BHCS	Apply grease to treads
S	30-27475	1		Fender
T	26-27481	2	16 Nm	M10x10 trunnion screw	Apply Loctite 242 to threads only, apply grease to shaft only
U	11-12681	2		6900-2RS Bearing
V	26-15533	2		M10x3 Washer	Apply grease to inner surface
W	26-27484	2	16 Nm	M10x20 bolt	Apply Loctite 242 to threads
X	11-12218	2		6902-2RS Max Bearing
Y	26-27483	2		Washer	Apply grease to inner surface
Z	26-27482	2		M10x2.6 Flip Chip	Apply grease to outside surface
AA	26-25329	1		Cable loop FT NDS
BB	26-15939	1	0.1 Nm	M3x12 BHCS	Apply Loctite 242 to threads

Ingrandisci immagine

Rimpicciolisci immagine

Rear Triangle Hardware, Chainguide, and Chainstay Protector

label	part_number	quantity	name	blurb	torque
A	08-22209	1	Rear axle 12x173.7	Apply grease to shaft and threads
B	23-23491	1	SCB UDH	Interchangeable with Sram UDH
C	26-23492	1	SCB UDH screw	Reverse thread	20 Nm
D	26-27487		M10x26 Bolt	Apply Loctite 242 to threads only, apply grease to shaft only	16 Nm
E	26-27488	2	Dust Shield	Apply grease to inner surface
F	11-27485		6802-2RS Bearing
G	26-27489	2	Bearing spacer	Apply grease to shaft
H	26-27486	2	M10x6 Nut	Apply grease to inner surface
I	30-27476		Chanistay protector
J	26-15939		M3x12 BHCS	Apply Loctite 242 to threads	0.1 Nm
K	26-22938		M4x10 FHCS	Apply Loctite 242 to threads	0.65 Nm
L	19-22609		OneUp chainguide
M	26-27839		OneUp chainguide back plate
N	30-27838		Cable Loop Guide
O	26-22358		M3x6	Apply Loctite 242 to threads	0.6 Nm
P	26-22570		M5x12 HHS	Apply Loctite 242 to threads	2 Nm
Q	30-21453		Seatstay Protector

Ingrandisci immagine

Rimpicciolisci immagine

Battery

label	part_number	quantity	name	torque	blurb
A	26-27493	1	Battery mount rear PT600
B	26-28053	4	M4x10 SHCS	1.2 Nm	Apply Loctite 242 to threads
C	26-27870	1	Bosch H-Connector
D	78-25241	1	Bosch battery PT600		Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ)
E	26-27494	1	Battery mount front PT600
F	26-27912	1	Battery mount rear PT600

Ingrandisci immagine

Rimpicciolisci immagine

Files

Se desideri ulteriori informazioni sulla tua bicicletta, consulta il nostro Santa Cruz Bicycles Owner's Manual

• 2024 Santa Cruz Bicycles Bosch Quick Start Guide FINAL All Languages 1
• Vala Declaration of Conformity DoC
• Santa Cruz Bicycles User Manual
• Bosch ebike Safety Information Sheet EU
• Bosch ebike Safety Information Sheet US
