Skitch
THE ULTIMATE TRAFFIC-SLIPPING, RATE RACE-ESCAPING TELEPORTATION DEVICE
The Skitch is the ultimate city-slicking, traffic-flicking, alleycat-slipping, rat race-escaping teleportation device. Its powerful yet lightweight motor gives you a nudge to spend less time behind a glass windshield and more time with your knees in the breeze. You’ll find even more excuses to get on your bike, because even a city commute can be as much fun as bike park laps.
N+1(LESS CAR)
The Skitch is for those who want to ride more while supporting their weekend cycling habit. Commuting turns into wild fun—an extension of off-road misadventures. Spend less time behind the wheel and more time on two wheels. It’s guaranteed to boost your well-being!
LAND SPEED RECORDS EVERY DAY
Escape from it all—or reach your destination quickly. The Skitch offers power up to 32 kph with a range of over 100 kilometers. With 60 Nm of torque, the motor provides a strong push up steep hills and from traffic lights. The bike's lightweight design makes it easy to navigate through traffic or carry up stairways.
Filters:
Design Details

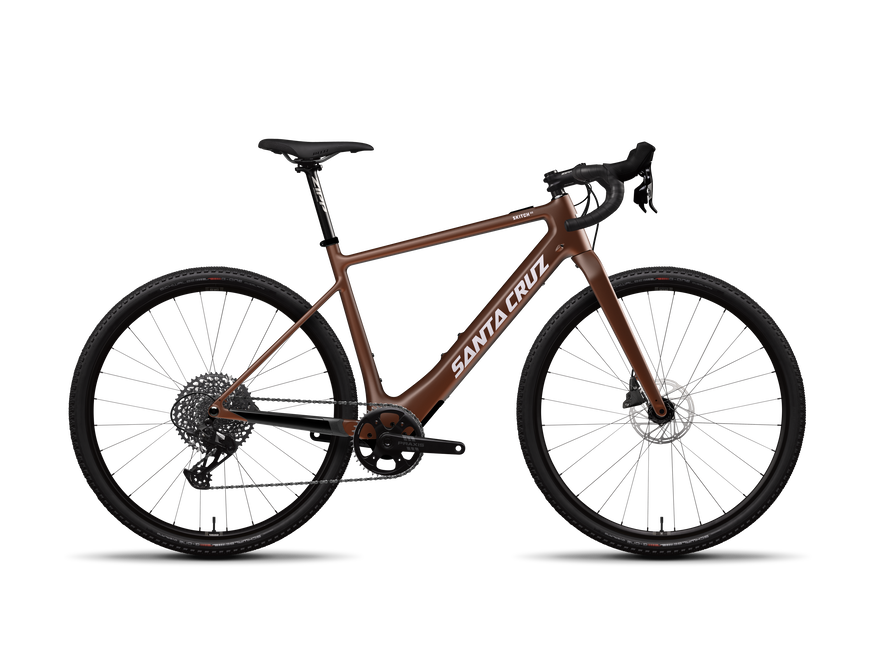

Drops or Flat

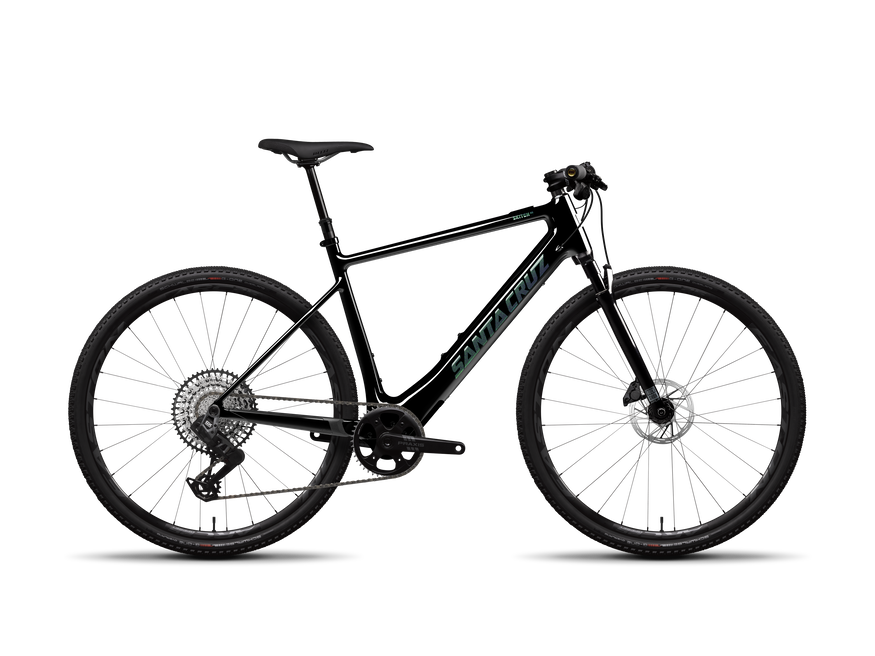

Available as a drop bar rally stage gravel bike or a flat bar alleycat raider.
BUILT LIGHT, RIGHT
30lb full CC carbon bike makes it light, fast and tougher than the streets.
CC Carbon
Few companies have mastered carbon like we have. Our frames, designed in California, are made in-house and include a lifetime warranty.
Skitch Gallery
Skitch
Sizing & Geometry
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
| s | m | l | xl | xxl | |
|---|---|---|---|---|---|
| A. Reach | 390 | 405 | 420 | 435 | 450 |
| B. Stack | 563 | 579 | 596 | 610 | 630 |
| Head tube angle | 69° | 69° | 69° | 69° | 69° |
| K. Head Tube Length | 105 | 125 | 145 | 160 | 180 |
| G. Rear Center | 430 | 430 | 430 | 430 | 430 |
| F. Front Center | 624 | 646 | 668 | 689 | 711 |
| H. BB Height | 279 | 281 | 281 | 283 | 283 |
| I. BB Drop | 78 | 76 | 76 | 74 | 74 |
| E. Wheelbase | 1047 | 1070 | 1092 | 1112 | 1135 |
| M. Top Tube Length | 551 | 571 | 591 | 610 | 630 |
| L. Seat Tube Length | 455 | 485 | 515 | 545 | 575 |
| J. Standover Height | 728 | 753 | 778 | 804 | 830 |
| D. Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
Skitch
Setup & Support
Whether you’re the proud owner of a Skitch or are just digging deep into the details you’ll find it all here.
| label | name | quantity | part_number | blurb |
|---|---|---|---|---|
| A | 67-19217 | 1 | Head Tube Badge | Clean frame surface, center on headtube |
| B | 26-25195 | 1 | Head Tube Grommet | |
| C | 72-24784 | 1 | Fazua LED Hub, long wire | Insert foam tube 26-17568 onto long wire |
| label | name | quantity | torque | part_number | blurb |
|---|---|---|---|---|---|
| A | 26-23102 | 3 | 0.65 Nm | M4x16 BHCS | Apply grease to threads |
| B | 26-25285 | 5 | 14 Nm | M6x25 BHCS | Apply Loctite 242 to threads |
| C | 26-25284 | 1 | 14 Nm | M6x35 BHCS | Apply Loctite 242 to threads |
| D | 30-25193 | 1 | Downtube protector | ||
| E | 26-25141 | 1 | DU spacer | ||
| F | 30-25194 | 1 | DU protector |
| label | name | quantity | part_number | torque | blurb |
|---|---|---|---|---|---|
| A | 26-25196 | 1 | Fazua charge port mount | ||
| B | 72-24768 | 1 | Fazua charge port cap | ||
| C | 72-24771 | 1 | Fazua Charge port, short wire | ||
| D | 26-15938 | 1 | M3x10 FHCS | 0.65 Nm | Apply Loctite 242 to threads |
| E | 26-27112 | 1 | Fazua charge port cover | Used with range extender only |
| label | name | quantity | part_number | blurb | torque |
|---|---|---|---|---|---|
| A | 08-22209 | 1 | Rear axle 173.7 | Apply grease to shaft and threads | |
| B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
| C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20 Nm |
| D | 26-15532 | 2 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | |
| E | 30-20192 | 1 | CS Protector | ||
| F | 26-20124 | 1 | M5x16 Water Bottle screw | Apply grease to threads | |
| G | 26-20864 | 1 | Di2 Plug | ||
| H | 26-20865 | 1 | Wireless Plug | ||
| I | 26-15939 | 1 | M3x12 BHCS | Apply grease to treads | 0.5 Nm |
| J | 26-25140 | 1 | Speed Sensor Cover | ||
| K | 72-24782 | 1 | Fazua speed sensor, medium wire |
| label | name | quantity | part_number |
|---|---|---|---|
| A | 34-20202 | 1 | 31.8 Seat Collar |
| B | 26-20195 | 2 | Fender Mount |
| C | 26-21360 | 4 | Water Bottle Screw |
| D | 26-25139 | 1 | DT Plug |
| E | 26-25138 | 1 | DT Plug for Range Extender |
| label | name | quantity | torque | part_number | blurb |
|---|---|---|---|---|---|
| A | 26-25295 | 4 | 1.2 Nm | M4x12 SHCS | Apply Loctite 242 to threads |
| B | 26-25136 | 1 | Fix 430 mount | ||
| C | 26-25283 | 2 | 9 Nm | M6x10 BHCS | Apply Loctite 242 to threads |
| D | 78-24791 | 1 | Fazua Energy 430 Fix | ||
| E | 26-25137 | 1 | Fix 430 mount |
| label | name | quantity | part_number | blurb |
|---|---|---|---|---|
| A | 72-24792 | 1 | Fazua Ride 60 DU Wide | |
| B | 26-27248 | 4 | Adhesive foam strip | Apply to connector |
- Santa Cruz Bicycles User Manual
- FAZUA ride60 User Manual NL
- FAZUA ride60 User Manual PL
- FAZUA ride60 User Manual PT
- FAZUA ride60 User Manual DE
- FAZUA ride60 User Manual FR
- FAZUA ride60 User Manual US
- FAZUA ride60 User Manual ES
- FAZUA ride60 User Manual IT
- Heckler SL and Skitch Declaration of Conformity DoC MY25 MYXX
Dig Deep
Sizing and support for the Skitch.
